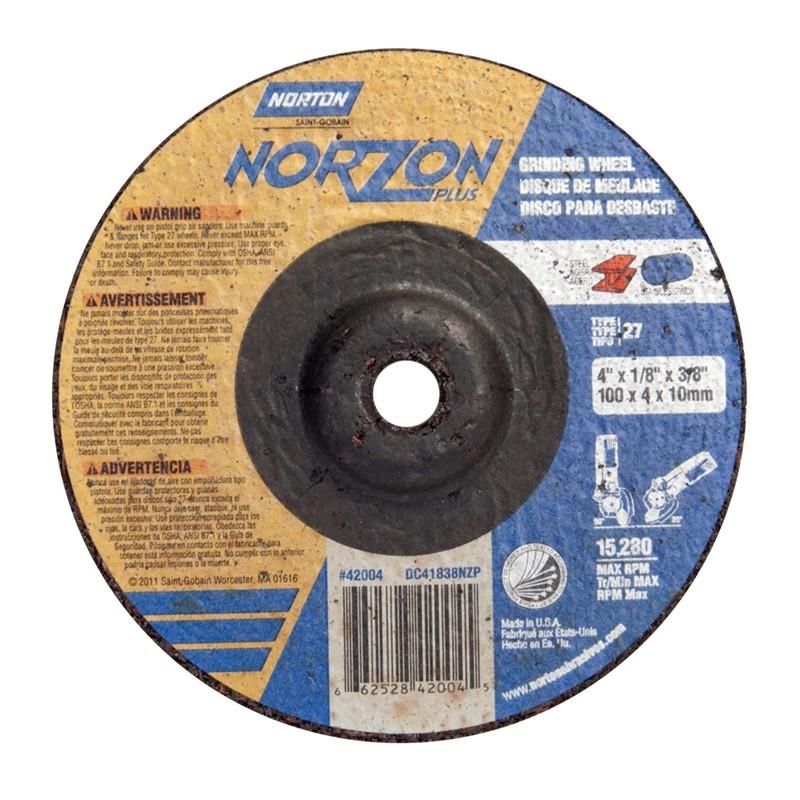

Norton 66252842004 Type 27 Grinding Cutting Wheel 4in

Product Description

The NORTON 66252842004 is a Type 27 depressed center abrasive wheel engineered for light grinding and cutting on metal. Built on the NorZon Plus platform, this wheel features a recessed center hub design that allows a lower grinding angle, improving surface contact and operator control during use. At 4 inches in diameter with a 1/8-inch thickness and a 3/8-inch arbor bore, it is sized for small-to-medium angle grinders commonly used in fabrication and field service work. Metal trades professionals reach for this wheel when they need consistent stock removal without excessive heat buildup on thinner workpieces.

This wheel is suited for light grinding and cutting applications on metal surfaces in both shop and field environments. Typical use cases include weld cleanup, deburring, and light material removal on structural steel, pipe, and sheet metal. The Type 27 profile makes it a standard choice for work requiring a low-profile approach angle. It is sold individually but is available in case quantities of 25, making it practical for shops and service fleets that go through wheels at volume.

Key Features

• Type 27 depressed center design lowers grinding angle for improved surface contact
• NorZon Plus abrasive construction suited for light grinding and cutting on metal
• 4-inch diameter with 1/8-inch thickness for controlled stock removal on thinner materials
• 3/8-inch arbor bore fits compact and mid-size angle grinders
• Rated at 15,280 RPM maximum operating speed
• Sold as individual units with a case quantity of 25 for high-volume procurement

Compatibility

Designed for use with angle grinders accepting a 3/8-inch arbor and capable of accommodating a 4-inch Type 27 depressed center wheel for metal grinding and cutting applications.

Installation Notes

Wheel mounting and replacement should be performed by a qualified operator following applicable ANSI B7.1 safe use standards for abrasive wheels. Always power down and disconnect the grinder before changing wheels. Inspect the wheel for cracks or chips before mounting and never exceed the 15,280 RPM maximum speed rating printed on the wheel. Use the correct flange and arbor hardware specified for Type 27 wheels on the grinder being used.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Series: NorZon Plus
• Application: Light Grinding and Cutting
• Material Compatibility: Metal
• Diameter: 4 inches
• Thickness: 1/8 inch
• Arbor Bore: 3/8 inch
• Maximum RPM: 15,280
• Sold As: Each
• Case Quantity: 25

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 66252842004
