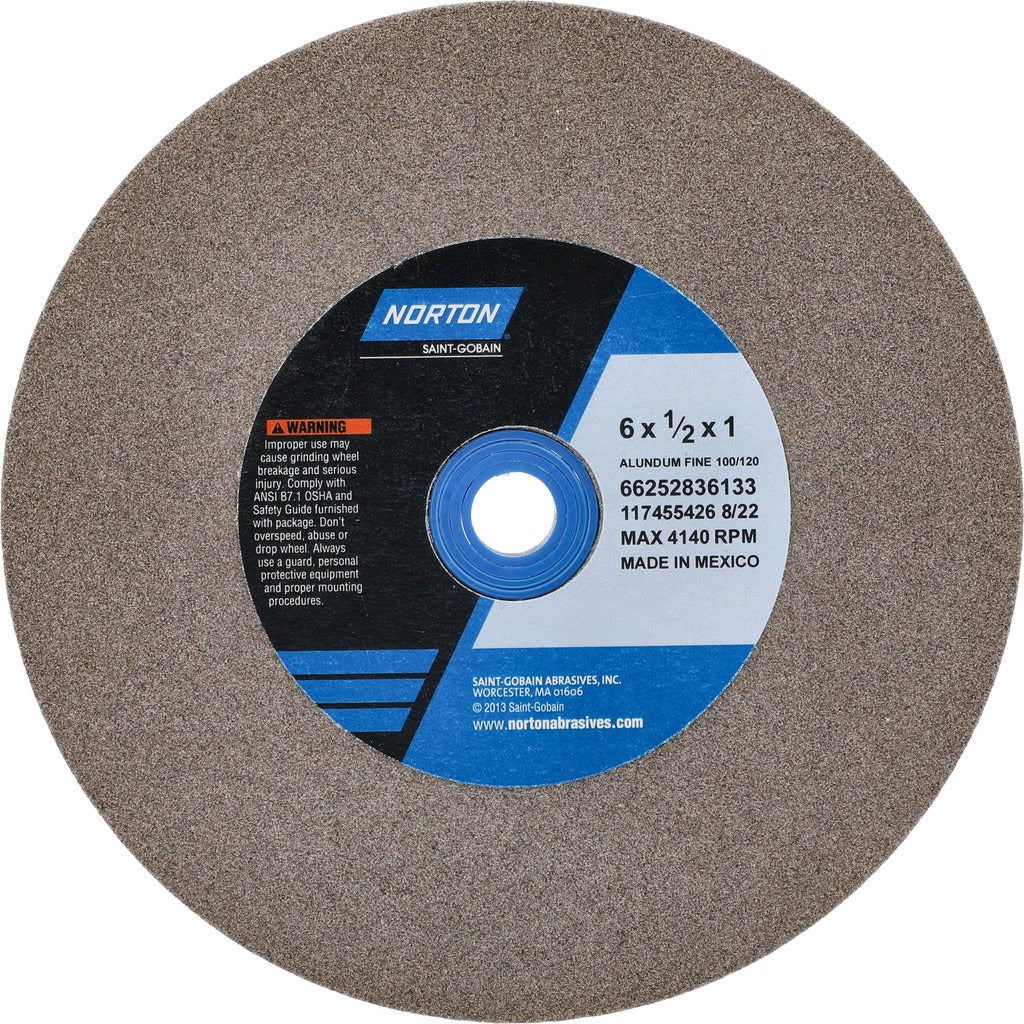

Norton 66252836133 Bench Pedestal Grinding Wheel 6in

Product Description

The NORTON 66252836133 is a Type 1 bench and pedestal grinding wheel designed for precision material removal on ferrous and non-ferrous metals. Built with aluminum oxide abrasive and a vitrified bond, it delivers consistent cutting action with a fine 100/120 grit finish — suited for sharpening tools, deburring edges, and light stock removal. The wheel measures 6 inches in diameter, 1/2 inch thick, with a 1-inch arbor hole. It is rated to a maximum of 6,210 RPM and ships with a bushing included for arbor fitment flexibility. Weighing 1.17 pounds, it is a direct-mount replacement for standard 6-inch bench grinder setups.

This wheel is intended for use on 6-inch bench or pedestal grinders in shop, maintenance, and light industrial environments. The fine 100/120 grit rating makes it well suited for finish grinding, tool sharpening, and edge work where a smooth surface result is required. It is commonly installed by machinists, maintenance technicians, and tool-and-die tradespeople working in fabrication shops, maintenance facilities, or job-site tool rooms.

Key Features

• Aluminum oxide abrasive for consistent stock removal on ferrous metals
• Fine 100/120 grit for finish grinding and tool sharpening
• Vitrified bond provides rigid, stable cutting action
• Type 1 straight wheel profile fits standard bench and pedestal grinder flanges
• Rated to 6,210 RPM maximum operating speed
• Bushing included to accommodate varying arbor sizes

Compatibility

Designed as an OEM-style replacement for standard 6-inch bench and pedestal grinders accepting a Type 1 straight wheel with a 1-inch arbor hole.

Installation Notes

Installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Disconnect and lock out power to the grinder before removing the existing wheel or mounting this one. Always perform a ring test before mounting and confirm the wheel guard is properly reinstalled before operating. Never exceed the 6,210 RPM maximum speed rating marked on the wheel.
