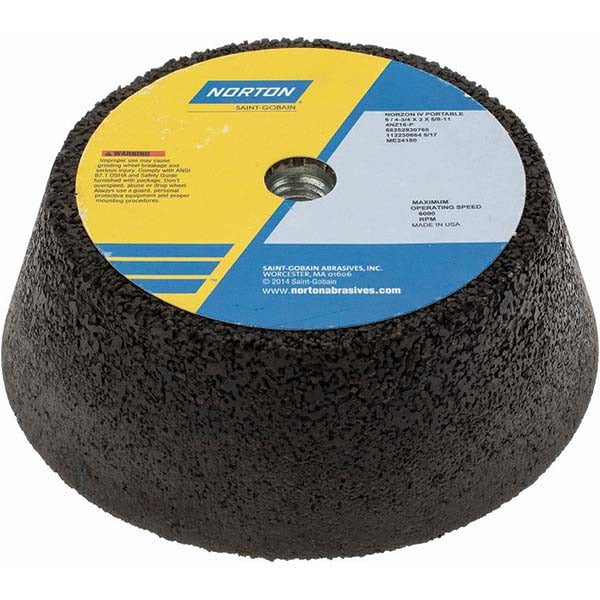

Norton 66252830765 Type 11 Snagging Wheel 6in 16 Grit

Product Description

The NORTON 66252830765 is a Type 11 snagging grinding wheel built for aggressive stock removal on metal workpieces. It measures 6 inches in diameter with a 1-1/2 inch face width and is manufactured from zirconia alumina bonded in a resinoid bond matrix. The 16-grit abrasive surface delivers fast, coarse grinding action suited to weld cleanup, flash removal, and heavy burr work. Rated to a maximum of 6000 RPM and carrying a medium hardness rating (code P), this wheel is part of the Norzon Plus line and is designed for use by metalworkers, fabricators, and maintenance machinists working with angle grinders or pedestal grinder setups.

This wheel is suited to heavy-duty foundry, fabrication, and maintenance grinding applications where rapid material removal is the priority. The Type 11 flared-cup profile provides access to inside corners and irregular surfaces that flat wheels cannot reach effectively. It is appropriate for use on carbon steel, stainless steel, and similar ferrous metals in industrial and commercial shop environments. Technicians working in metal fabrication, shipbuilding, or structural steel operations will find this wheel fits standard 5/8-11 threaded spindle machines.

Key Features

• Type 11 flared-cup profile for snagging and inside-corner grinding
• Zirconia alumina abrasive grain for fast cut rate and extended wheel life on ferrous metals
• Resinoid bond construction for impact resistance during aggressive grinding passes
• 16 grit for maximum material removal rate on heavy stock
• Medium hardness (P) balances wheel wear against cut aggressiveness
• 5/8-11 threaded hub for compatibility with standard angle grinder and pedestal grinder spindles

Compatibility

Designed for use on machines with a 5/8-11 threaded spindle. Verify that the machine speed does not exceed the 6000 RPM maximum rating marked on the wheel before mounting.

Installation Notes

Mounting and dressing of grinding wheels should be performed by qualified personnel following ANSI B7.1 safety requirements and applicable shop safety codes. Disconnect and lock out all power to the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before each use and perform a ring test; never use a damaged wheel. Always use the appropriate guard and personal protective equipment, including eye and face protection, during operation.
