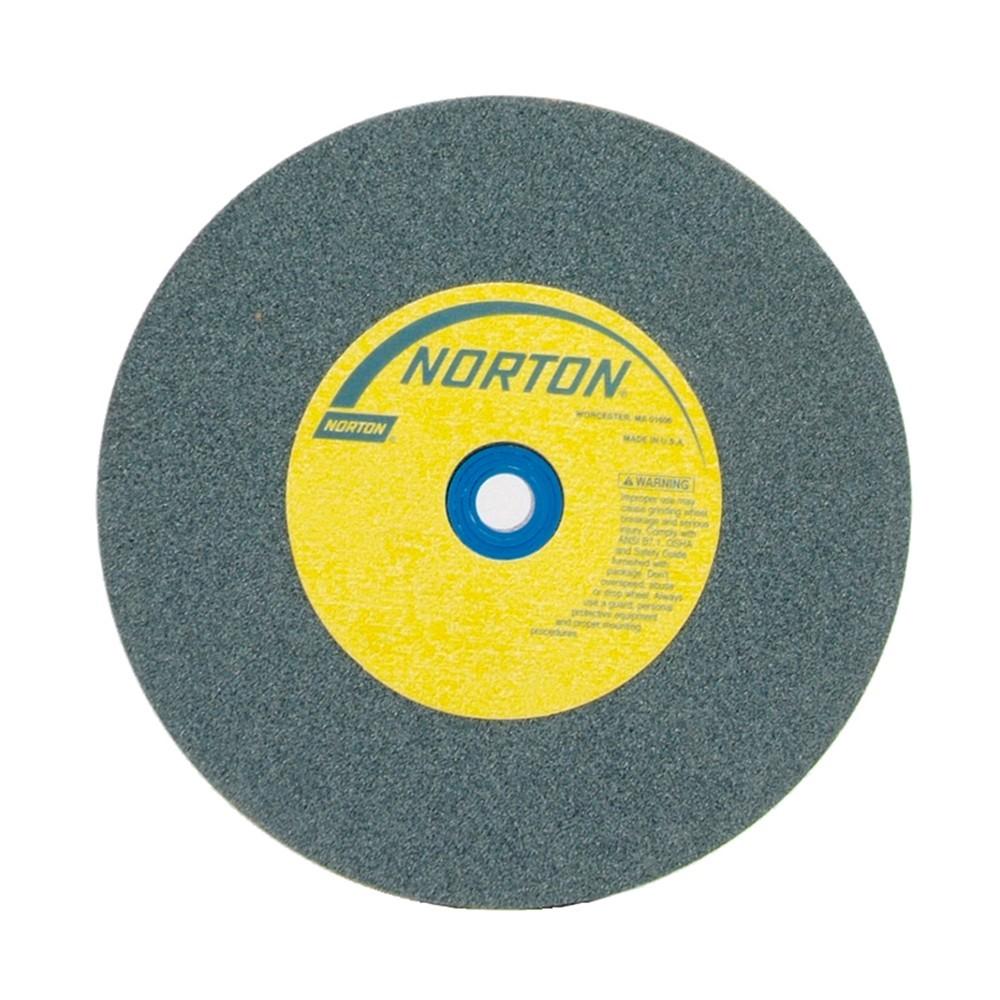

Norton 662528-37193 Bench Grinding Wheel 6x1x1 Fine Grit

Product Description

The NORTON 662528-37193 is a Type 1 silicon carbide bench and pedestal grinding wheel designed for sharpening, shaping, and deburring non-metallic materials. Built in the standard flat-wheel profile, it measures 6 inches in diameter, 1 inch wide, with a 1-inch arbor bore, and carries a Fine grit designation for controlled stock removal and surface finishing. The silicon carbide abrasive is the correct choice for non-metal workpieces such as carbide tooling, ceramics, stone, and similar hard, brittle materials. This wheel mounts on standard bench grinders and pedestal grinders and is installed by machinists, toolroom technicians, and maintenance trades.

This wheel is suited for bench or pedestal grinder applications in tool and die shops, maintenance departments, and production environments where non-metallic materials require grinding or finishing. The Fine grit rating makes it appropriate for finish grinding passes where a consistent surface finish is the priority over aggressive material removal. It is sold and used individually as a direct replacement or spare wheel on compatible bench and pedestal grinder spindles.

Key Features

• Type 1 flat wheel profile for standard bench and pedestal grinder mounting
• Silicon carbide abrasive formulated for non-metallic and carbide materials
• Fine grit for surface finishing and controlled stock removal
• Maximum operating speed of 4140 RPM for safe use within rated grinder speeds
• 6 x 1 x 1 inch dimensions fit common bench grinder arbor configurations

Compatibility

Designed as an OEM-style replacement or standard wheel for bench and pedestal grinders accepting a Type 1 wheel measuring 6 inches in diameter with a 1-inch arbor bore, operating at or below 4140 RPM.

Installation Notes

Bench and pedestal grinding wheels must be installed by qualified personnel following ANSI B7.1 safe use standards. Always power down and lock out the grinder before changing wheels. Inspect the wheel for cracks or chips before mounting and perform a ring test by tapping the wheel lightly — a clear tone indicates integrity. Confirm the grinder spindle speed does not exceed the wheel's rated maximum of 4140 RPM before operation, and always use the proper flanges and blotter gaskets supplied with the grinder.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Silicon Carbide
• Application: Non-Metal
• Grit: Fine
• Diameter: 6 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 4140
• Color: Green
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662528-37193
