Norton 662528-09376 Type 27 Grinding Wheel 6x1/4x7/8

Product Description

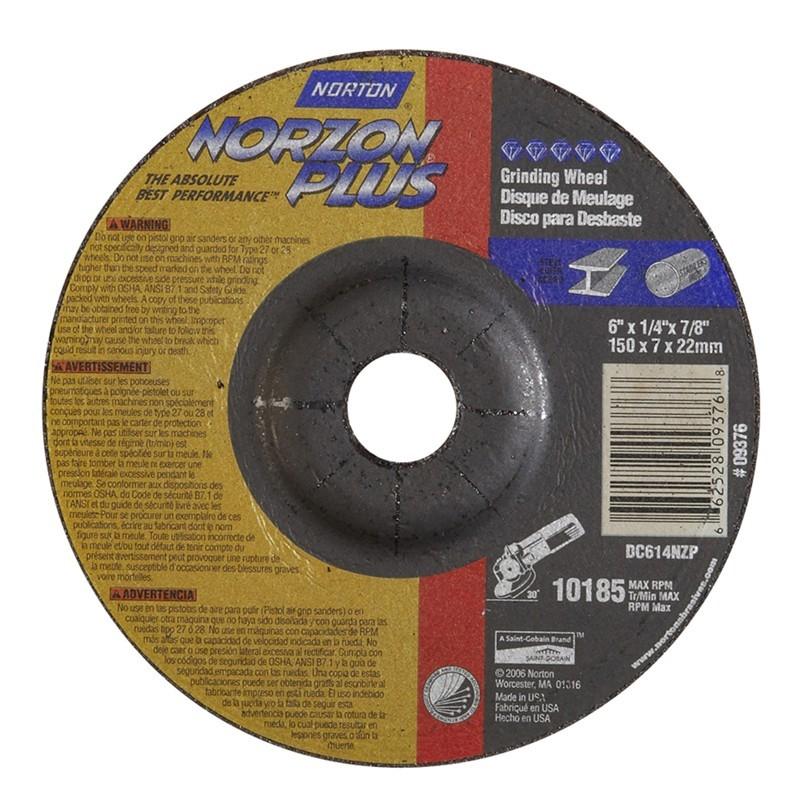

The NORTON 662528-09376 is a Type 27 depressed center grinding wheel built for metal grinding applications. Part of the NorZon Plus line, this wheel delivers consistent stock removal on ferrous metals and is suited for angle grinder use in fabrication, maintenance, and welding cleanup work. The wheel measures 6 inches in diameter with a 1/4-inch grinding face thickness and a 7/8-inch arbor bore. It carries a maximum operating speed of 10,185 RPM. The Type 27 depressed center profile allows flat and surface grinding with an angle grinder, giving the operator improved clearance and control in tight areas.

This wheel is intended for metal grinding tasks in industrial, commercial, and trade environments. Typical applications include weld bead removal, surface blending, and deburring on structural steel, plate steel, and fabricated assemblies. It is well suited for use by welders, pipefitters, ironworkers, and maintenance mechanics who need reliable, repeatable performance from a bonded abrasive wheel. The 7/8-inch arbor bore is a standard fit for most 6-inch angle grinders used in the trades.

Key Features

• Type 27 depressed center design provides clearance for flat and surface grinding
• NorZon Plus abrasive formulation for consistent cut rate on metal
• 6-inch diameter with 1/4-inch thickness for aggressive material removal
• Maximum rated speed of 10,185 RPM for use with standard angle grinders
• 7/8-inch arbor bore fits most common 6-inch angle grinder spindles
• Designed for ferrous metal grinding applications

Compatibility

Designed as an OEM-style abrasive replacement for 6-inch angle grinders with a standard 7/8-inch arbor, rated for use at or below 10,185 RPM on metal grinding applications.

Installation Notes

Installation and wheel changes should be performed by a qualified operator following ANSI B7.1 safe use standards for abrasive wheels. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect the wheel for cracks or damage before each use and never exceed the rated maximum RPM. Ensure the wheel guard is properly in place before operating.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Line: NorZon Plus
• Application: Metal Grinding
• Diameter: 6 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 10,185
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662528-09376
