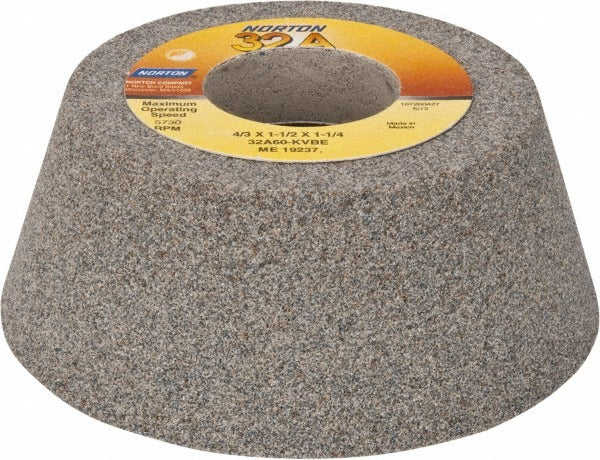

Norton 66243530361 Type 11 Grinding Wheel 4 in 60 Grit

Product Description

The NORTON 66243530361 is a Type 11 flaring cup grinding wheel designed for precision tool grinding and off-hand grinding operations. Built with aluminum oxide abrasive and a vitrified bond, this wheel delivers consistent stock removal on ferrous metals and tool steels. It measures 4 inches in diameter with a 1-1/2 inch overall thickness and a 1/4 inch face width. Rated at a maximum of 5,730 RPM, it is sized for use on bench grinders and pedestal grinders in shop and maintenance environments. The K hardness code and medium grade make it well suited for moderate-pressure grinding where controlled material removal is required.

This wheel is used in machine shops, tool rooms, and industrial maintenance settings for sharpening cutting tools, deburring, and surface conditioning. It fits bench grinders and pedestal grinders with a 1-1/4 inch arbor hole and a 3 inch hub diameter. The gray aluminum oxide construction handles general-purpose ferrous grinding tasks and is a common choice for tool and cutter grinders in both commercial and industrial facilities.

Key Features

• Type 11 flaring cup profile for tool grinding and off-hand applications
• Aluminum oxide abrasive with vitrified bond for consistent, controlled cut
• 60 grit, K hardness (medium grade) — suited for moderate stock removal
• 5,730 maximum RPM rating for safe bench and pedestal grinder use
• Non-porous construction for dimensional stability during grinding
• Specification code 32A60-KVBE for precise cross-reference ordering

Compatibility

Designed for use on bench grinders and pedestal grinders with a 1-1/4 inch arbor hole. Suitable for tool and cutter grinding applications on ferrous metals. Verify that the grinder spindle speed does not exceed the 5,730 RPM maximum rating before mounting.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test per ANSI B11.9 guidelines. Never exceed the maximum RPM stamped on the wheel or stated in the product specifications.
