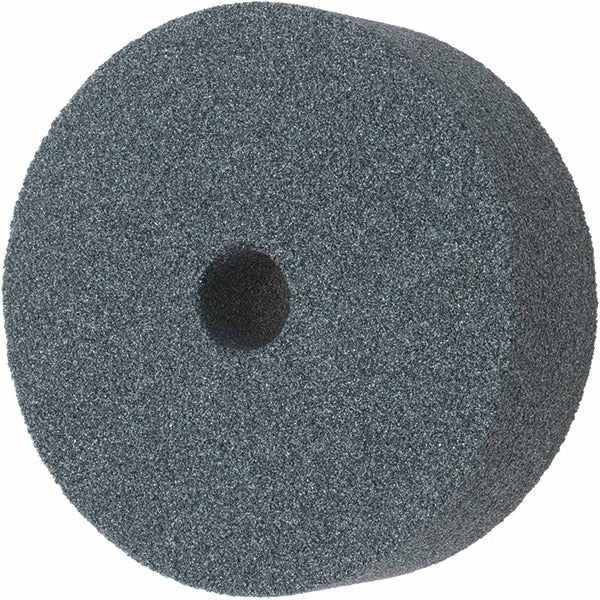

Norton 66243529170 Surface Grinding Wheel 80 Grit 3 in

Product Description

The NORTON 66243529170 is a Type 1 surface grinding wheel designed for bench and pedestal grinder applications requiring a hard, consistent abrasive action. Built with silicon carbide grain and a vitrified bond, this wheel operates at a maximum of 10825 RPM and delivers medium-grade stock removal on a wide range of non-ferrous and ferrous materials. At 3 inches in diameter, 1 inch thick, and bored to a 1/2 inch hole, it fits standard small-bench grinder arbors and hand-sharpening setups. H-hardness and 80 grit position this wheel for controlled material removal without excessive heat buildup on the workpiece.

This grinding wheel is suited for trade and shop use where consistent abrasive performance is required on harder-to-grind materials including 300 series stainless steel, titanium, aluminum, brass, bronze, copper, gray iron, masonry, and natural stone. Its compact 3 inch diameter makes it practical for hand-sharpening fixtures and small bench grinders commonly found in HVAC shops, plumbing fabrication areas, and general trade service environments. The vitrified bond provides rigidity and porosity control, maintaining wheel form during use.

Key Features

• Silicon carbide abrasive grain for effective cutting on non-ferrous metals, masonry, and stone
• Vitrified bond construction for rigid, form-holding performance
• 80 grit, medium grade — suitable for stock removal and general surface grinding
• H hardness code, non-porous wheel body maintains consistent cutting action
• 10825 RPM maximum operating speed
• Type 1 straight wheel with no recess and no taper — 1/2 inch bore fits standard small arbors

Compatibility

Rated for hand-sharpening fixtures and bench grinder applications. Listed material compatibility includes 300 Series Stainless, Titanium, Aluminum, Brass, Bronze, Copper, Gray Iron, Masonry, and Natural Stone. Specification code 37C80-HVMT. Minimum order quantity is 30 units; packaged quantity is 1 per package.

Installation Notes

This wheel is installed by a qualified technician familiar with abrasive wheel mounting procedures. Disconnect and lock out all power to the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before installation and perform a ring test per ANSI B7.1 guidelines. Never exceed the maximum rated RPM stamped on the wheel or listed in the product data.
