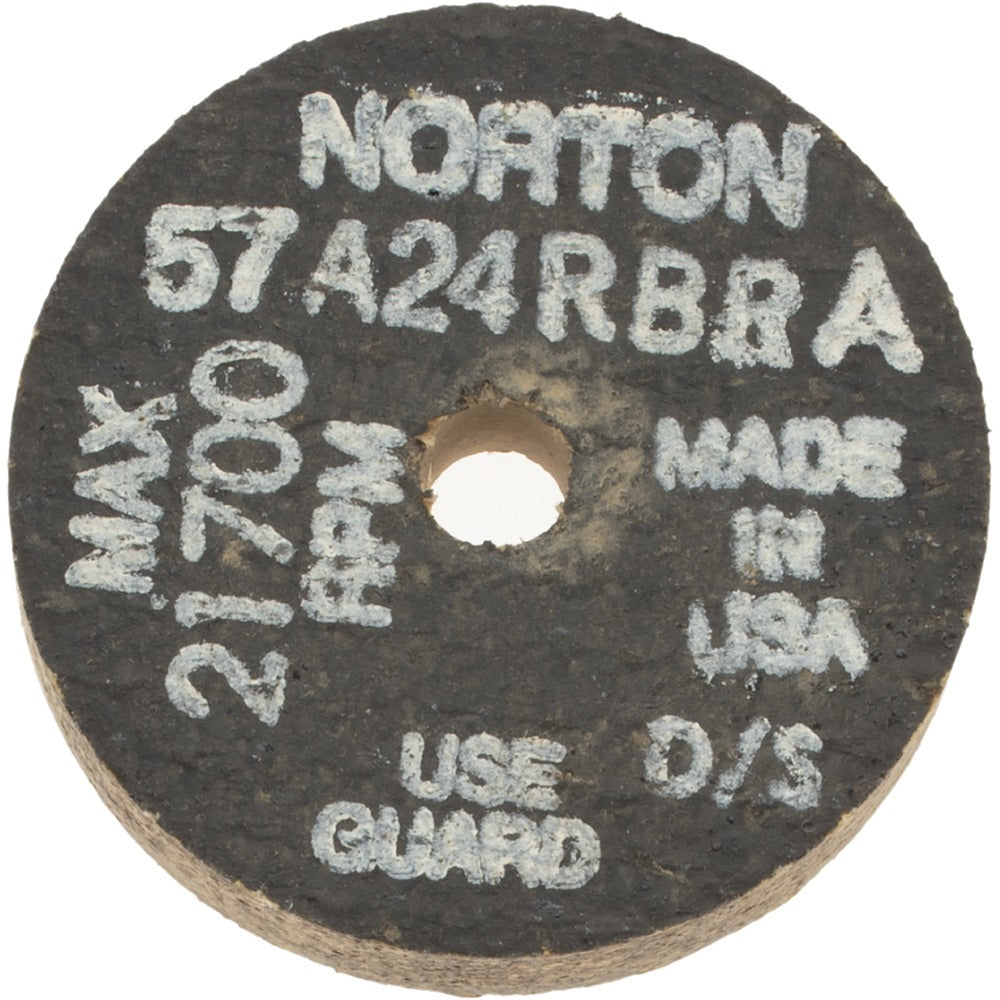

Norton 66243522381 Surface Grinding Wheel 24 Grit

Product Description

The NORTON 66243522381 is a Type 1 straight surface grinding wheel designed for aggressive stock removal on ferrous and non-ferrous metals. Built with aluminum oxide abrasive and a resinoid bond, it measures 2-1/2 inches in diameter, 1/2 inch thick, with a 3/8 inch hole size. Rated at 24 grit with an R hardness code and very coarse grade, this wheel delivers fast, aggressive cutting action suited to rough grinding applications. It is rated for a maximum speed of 21,700 RPM. Licensed HVAC, plumbing, and mechanical trade technicians as well as industrial machinists performing surface preparation or weld cleanup will find this wheel a practical shop consumable.

This wheel is engineered for use with flexible shaft grinders and ID grinders. Its material compatibility spans a wide range of metals including 300 and 400 series stainless steel, hard and soft carbon steels, tool steels, titanium, super alloys, aluminum, brass, bronze, copper, cast iron, ductile iron, and gray iron. This range of material application makes it a versatile choice for maintenance shops, fabrication environments, and field service operations where varied workpiece materials are encountered.

Key Features

• 24 grit very coarse aluminum oxide abrasive for fast, aggressive stock removal
• Type 1 straight wheel profile with no recess for straightforward mounting
• Resinoid bond construction with non-porous structure for consistent wheel integrity
• Maximum rated speed of 21,700 RPM for use with compatible grinder equipment
• R hardness code with soft hardness rating for self-dressing action on hard workpieces
• Compatible with a broad range of metals including stainless, carbon steel, cast iron, and non-ferrous alloys

Compatibility

Designed for use with flexible shaft grinders and ID grinders. Confirmed compatible material applications include 300 series stainless, 400 series stainless, hard carbon steels, soft carbon steels, tool steels, titanium, super alloys, aluminum, brass, bronze, copper, cast iron, ductile iron, and gray iron. Series designation is 58A Type 1 with specification code 57A24-RBRA.

Installation Notes

Grinding wheel installation and dressing should be performed by qualified personnel familiar with abrasive wheel safety standards including ANSI B7.1. Before mounting, power down and lock out the grinder per applicable OSHA lockout/tagout procedures. Inspect the wheel for cracks or chips before each use and never exceed the stated maximum RPM of 21,700. Proper flanges and blotters must be used as required by the grinder manufacturer.
