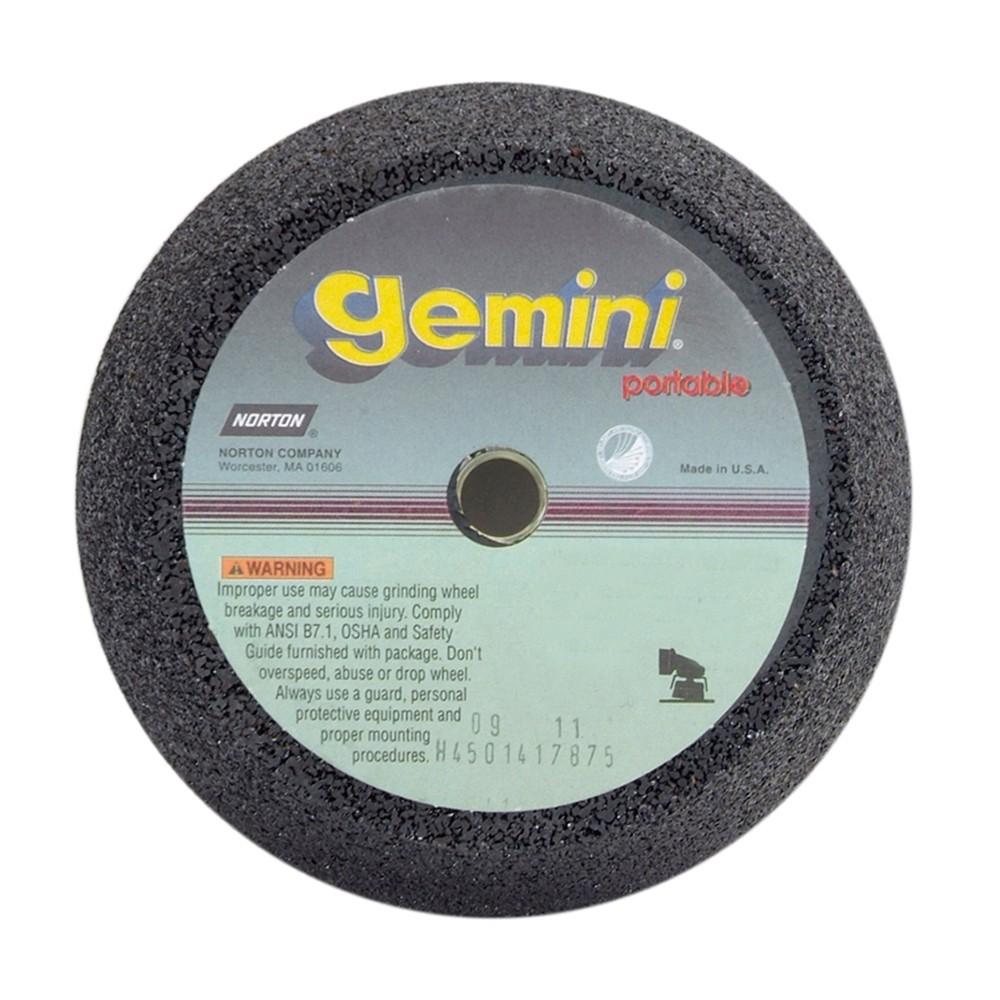

Norton 662435-10512 Type 11 Flaring Cup Wheel Aluminum Oxide

Product Description

The NORTON 662435-10512 is a Type 11 flaring cup wheel engineered for metal grinding and surface conditioning applications. Built with an aluminum oxide abrasive grain, this wheel delivers consistent stock removal on ferrous metals including steel and cast iron. The wheel measures 4 inches in outer diameter, 3 inches in back diameter, and 2 inches in width, with a 5/8-11 threaded arbor mount. It is rated to a maximum operating speed of 9070 RPM. Grinding professionals, fabricators, and maintenance technicians use this wheel with angle grinders and cup wheel grinders for weld blending, surface preparation, and deburring tasks.

This flaring cup wheel is suited for metal fabrication shops, structural steel work, and general metalworking environments requiring controlled material removal. The Type 11 cup profile concentrates the abrasive face at the rim, making it effective for flat surface grinding and edge work on steel components. It is sold individually, with a minimum order quantity of 10 units, making it appropriate for shop stock replenishment or contractor supply.

Key Features

• Type 11 flaring cup geometry concentrates abrasive action at the wheel rim for effective flat and edge grinding
• Aluminum oxide abrasive grain provides durable, consistent cutting action on steel and ferrous metals
• 9070 RPM maximum operating speed rating for use with compatible angle grinders
• 5/8-11 threaded arbor fits standard cup wheel grinders widely used in metal trades
• 4 inch outer diameter with 2 inch width for substantial grinding contact area

Compatibility

Designed for use with angle grinders and cup wheel grinders fitted with a 5/8-11 threaded spindle, suitable for metal grinding applications on ferrous materials.

Installation Notes

Installation and wheel changes should be performed by qualified personnel following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always inspect the wheel for cracks or damage before mounting and never exceed the rated maximum RPM. Ensure the grinder is powered down and disconnected from its power source before mounting or removing the wheel. Wear appropriate personal protective equipment including eye and face protection during operation.

Technical Specifications

• Wheel Type: Type 11 Flaring Cup
• Abrasive Material: Aluminum Oxide
• Application: Metal Grinding
• Outer Diameter: 4 inches
• Back Diameter: 3 inches
• Width: 2 inches
• Arbor Size: 5/8-11 threaded
• Maximum RPM: 9070
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662435-10512
