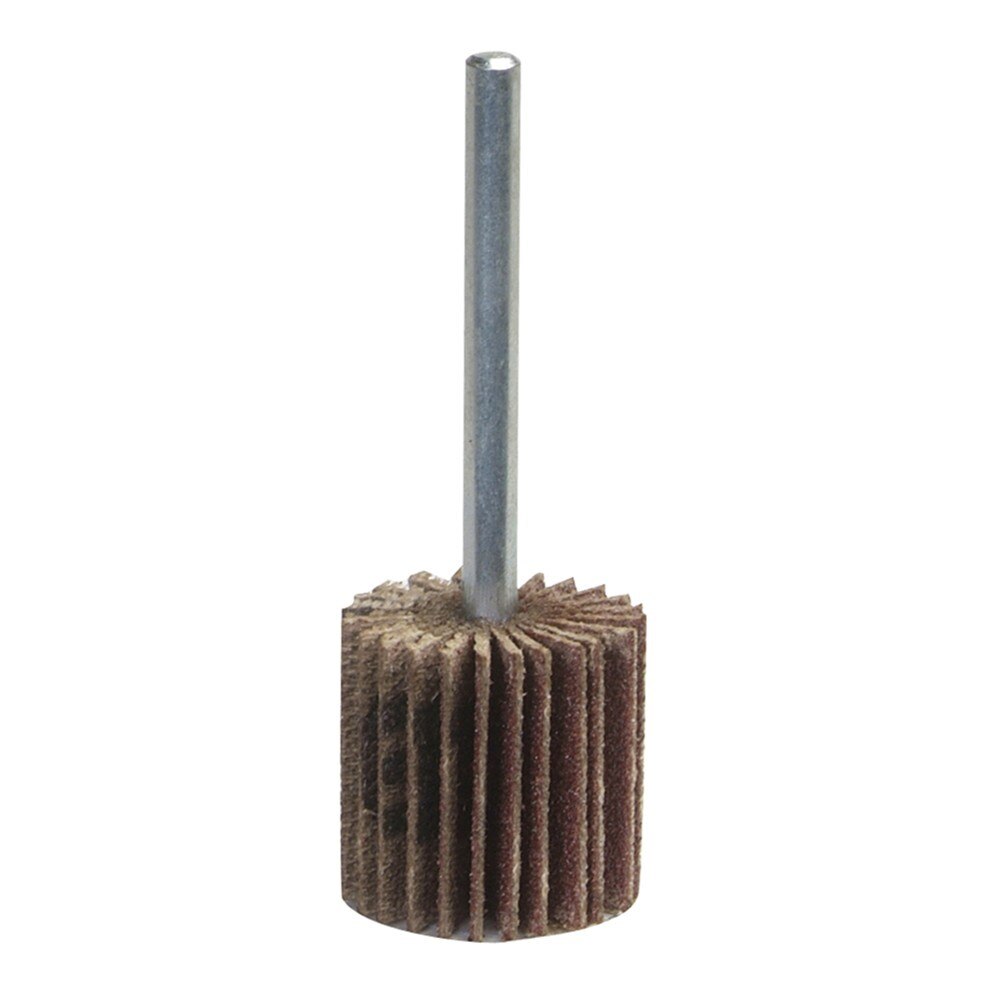

Norton 636425-02622 Metalite Flap Wheel 120 Grit

Product Description

The NORTON 636425-02622 is a Metalite flap wheel abrasive designed for blending, deburring, and surface finishing on metal workpieces. Built on the R265 model platform, this flap wheel measures 3 inches in diameter by 1 inch wide with a 1/4-inch arbor bore and runs at a 120 grit rating suited for intermediate stock removal and surface preparation. Licensed tradespeople and fabricators reach for this wheel when working on contoured or irregular metal surfaces where flat abrasive discs cannot conform. The flexible flap construction allows consistent abrasive contact and helps extend wheel life by exposing fresh grit as layers wear.

This flap wheel is used in metal fabrication, maintenance, and finishing applications across commercial and industrial settings. Typical use cases include deburring drilled or punched holes, blending weld seams, and refining surface finish on pipe, tube, and structural steel components. It is sized for use with standard rotary tools, die grinders, and drill presses accepting a 1/4-inch shank or arbor. Sold individually, it is also available in box quantities of 10 for shops requiring regular stock.

Key Features

• 120 grit rating for intermediate metal surface finishing and blending
• 3 inches x 1 inch x 1/4 inch size fits standard die grinders and rotary tools
• Flexible flap construction conforms to contoured and irregular workpiece surfaces
• R265 Metalite construction balances cut rate and surface finish quality
• Sold per each, with box quantity of 10 available for volume use

Compatibility

Designed for use with die grinders, rotary tools, and drill press setups accepting a 1/4-inch arbor bore; suitable for general metal surface preparation and finishing applications.

Installation Notes

Installation and operation should be performed by qualified tradespeople familiar with rotary abrasive tooling. Before mounting, verify the tool spindle speed does not exceed the rated maximum RPM for the wheel. Secure the arbor fully before operation and ensure all guards are in place per applicable ANSI and OSHA standards. Always wear appropriate eye protection and follow lockout/tagout procedures when changing abrasive wheels on powered equipment.

Technical Specifications

• Model: R265
• Diameter: 3 inches
• Width: 1 inch
• Arbor Bore: 1/4 inch
• Grit: 120
• Weight: 0.2 pounds
• Unit of Measure: Each
• Box Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 636425-02622
