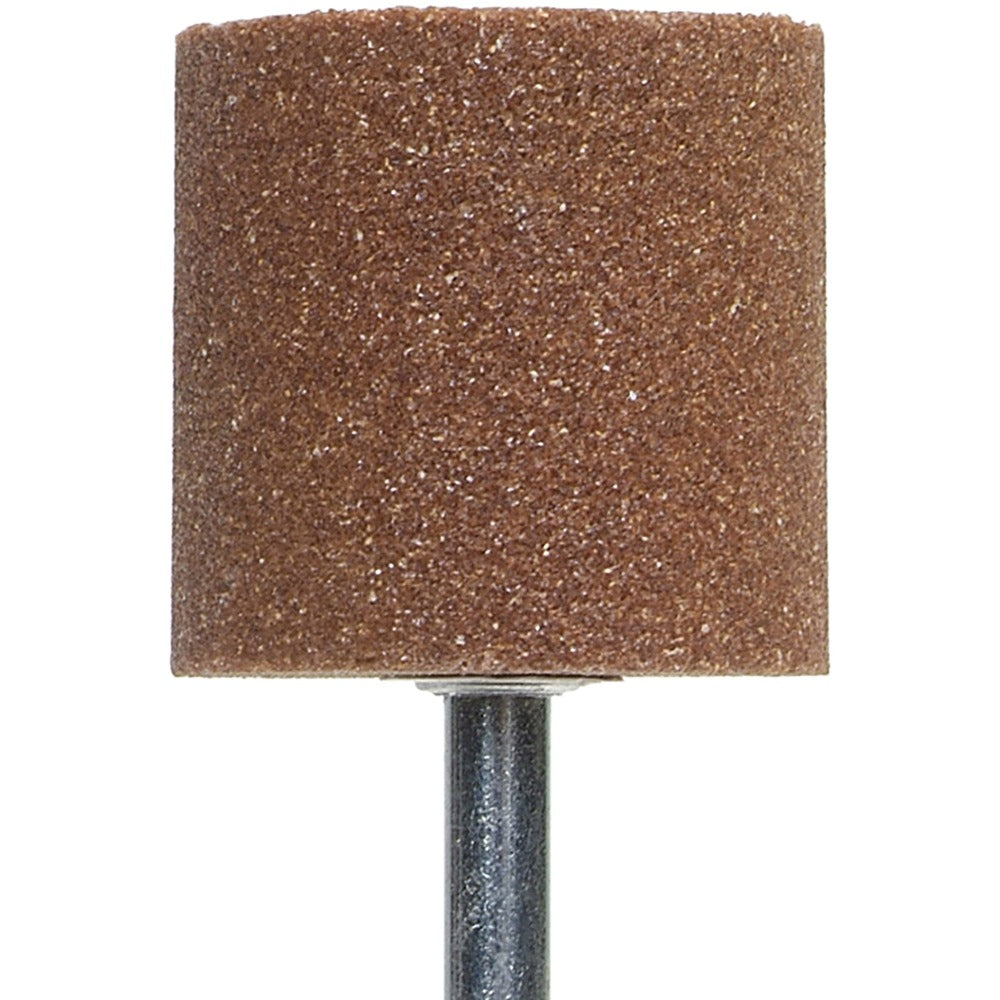

Norton 61463624588 Mounted Point W238 60 Grit Aluminum Oxide

Product Description

The NORTON 61463624588 is a vitrified aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing in tight spaces and contoured workpieces. Shaped to the W238 cylinder profile, it measures 1.5 inches in thickness with a 0.25-inch shank diameter and 1.5-inch shank length. The 60-grit, medium-grade abrasive delivers consistent stock removal on ferrous metals and hard materials. Rated to a maximum of 20,720 RPM, it is built for use with die grinders, flexible shaft machines, and other rotary tools found in metal fabrication, tool-and-die, and maintenance shops. Licensed tradespeople and experienced fabricators are the primary installers and users of this abrasive.

This mounted point is suited for internal grinding, weld blending, and finishing operations on metal parts, castings, and molds. The cylinder W238 shape provides flat-face contact, making it effective on flat surfaces, shoulders, and recessed areas where larger wheels cannot reach. It is a common choice in job shops, maintenance facilities, and production grinding applications where controlled material removal and a consistent finish are required.

Key Features

• W238 cylinder point shape for flat-face grinding on surfaces, shoulders, and recesses
• 60-grit aluminum oxide abrasive for medium stock removal on ferrous metals and hard materials
• Vitrified bond provides rigidity and consistent abrasive exposure throughout the wheel life
• 20,720 RPM maximum speed rating for safe use with standard die grinders
• 0.25-inch shank diameter fits standard die grinder and rotary tool collets
• Medium grade and density for balanced cut rate and surface finish

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25-inch shank collet. Suitable for grinding ferrous metals, hardened steel, and similar hard materials in maintenance, fabrication, and production environments.

Installation Notes

This mounted point should be installed and operated by personnel familiar with abrasive wheel safety per ANSI B7.1 guidelines. Before mounting, confirm the tool spindle speed does not exceed the 20,720 RPM maximum rating marked on the product. Inspect the mounted point for cracks or damage before each use and never operate a damaged abrasive. Allow the wheel to run at operating speed for at least one minute in a guarded area before applying it to a workpiece.
