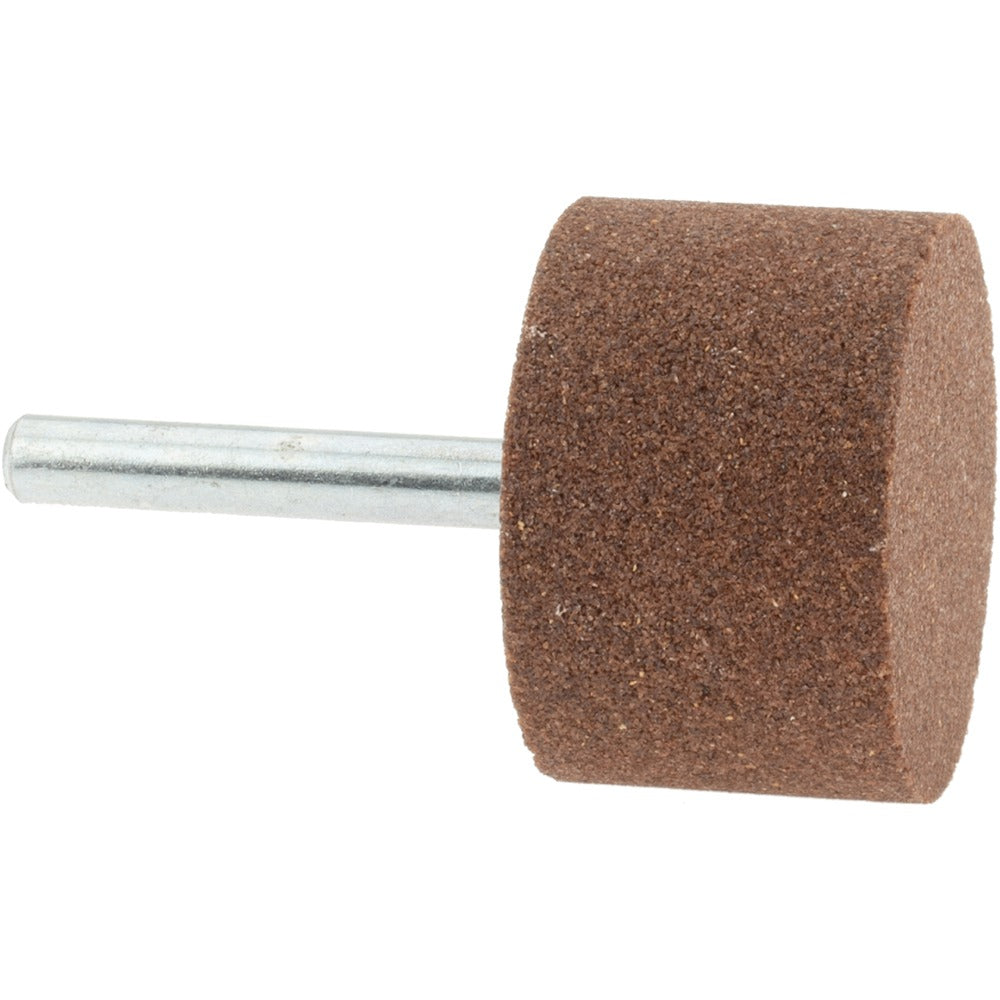

Norton 61463624587 Mounted Point 60 Grit W237 Cylinder

Product Description

The NORTON 61463624587 is an aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing in metalworking and fabrication applications. It features a W237 cylinder point shape with a 1 inch head thickness and a 1/4 inch shank diameter, making it compatible with standard die grinders and rotary tools. The abrasive material is aluminum oxide with a 60 grit, medium grade, bonded with a vitrified bond for consistent material removal and durability under load. The maximum operating speed is 25,460 RPM. This part is typically installed by machinists, tool and die workers, and maintenance technicians performing grinding or finishing tasks on metal workpieces.

This mounted point is suited for internal grinding, port work, weld cleanup, and contour finishing on ferrous and non-ferrous metals. The cylinder shape provides flat, consistent contact on flat surfaces and inside bores. With a 1/4 inch shank and 1-1/2 inch shank length, it fits standard collet-style die grinder chucks commonly found in industrial and shop environments. It is appropriate for both bench-mounted and handheld rotary tool setups where controlled material removal is required.

Key Features

• W237 cylinder point shape for flat-surface and bore grinding applications
• 60 grit, medium grade aluminum oxide abrasive for general-purpose material removal
• Vitrified bond construction for consistent grain exposure and durability
• 1/4 inch shank diameter fits standard die grinder collets
• Rated to 25,460 RPM maximum operating speed
• 1 inch head thickness with 1-1/2 inch shank length for reach into recessed areas

Compatibility

Designed for use with standard die grinders and rotary tools accepting a 1/4 inch collet. Suitable for general metalworking grinding and finishing applications where a W237 cylinder-profile mounted point is specified.

Installation Notes

Mounting and operation should be performed by qualified machinists or maintenance technicians familiar with abrasive tooling safety. Always inspect the mounted point for cracks or damage before mounting, and never exceed the rated maximum RPM of 25,460. Ensure the spindle is fully stopped and the tool is disconnected from power before installing or removing the point. Eye protection and appropriate PPE are required during operation per ANSI B7.1 safety standards for abrasive wheels.
