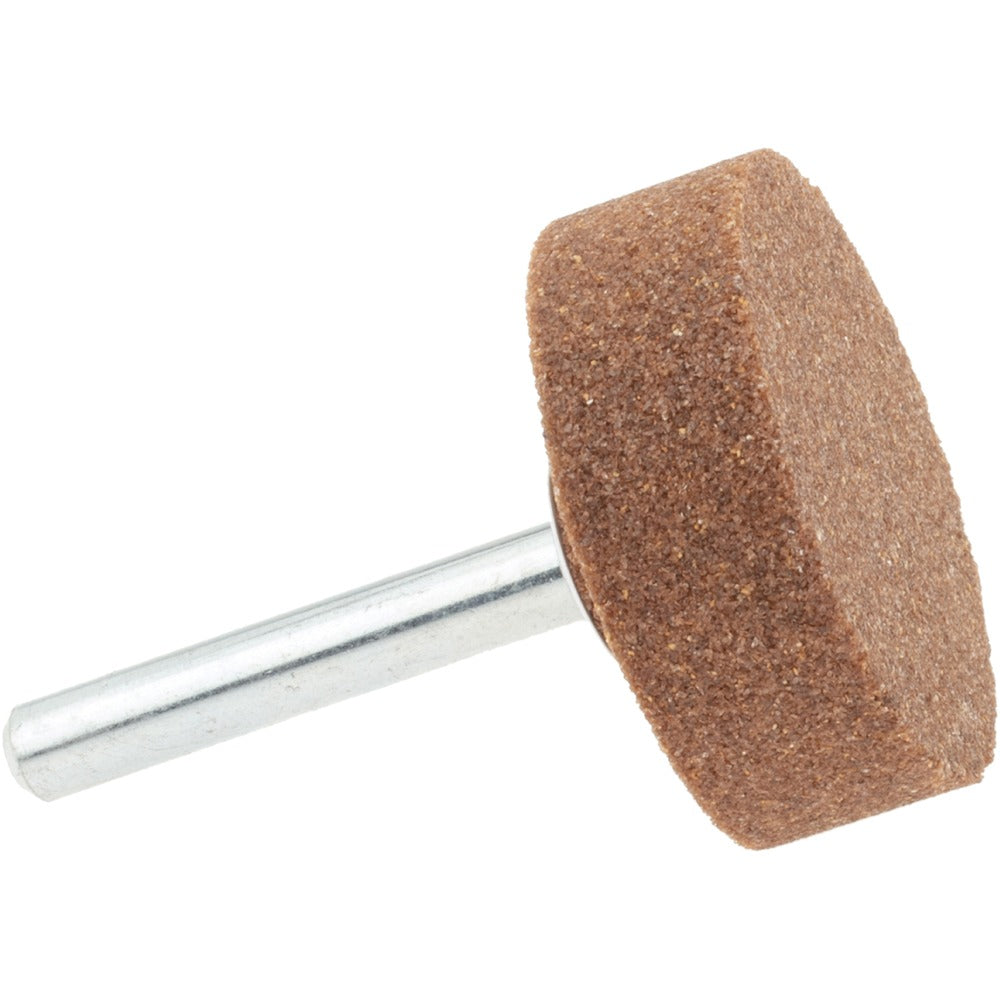

Norton 61463624585 Mounted Point 60 Grit W236 Cylinder

Product Description

The NORTON 61463624585 is an aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing in tight spaces and contoured areas. This cylinder-shaped point (shape code W236) features a vitrified bond and 60-grit medium grade abrasive, delivering consistent material removal on ferrous metals and hard alloys. The 0.25 inch shank diameter is sized for standard die grinders and rotary tools. With a maximum speed rating of 25,460 RPM, this mounted point suits both high-speed production grinding and detailed bench work. It is sold individually but requires a minimum order of 5 units per purchase.

Mounted points like the NORTON 61463624585 are used in maintenance, repair, and fabrication environments where standard grinding wheels cannot reach. Typical applications include weld bead cleanup, port and passage grinding, mold and die finishing, and deburring of cast or machined components. The cylinder profile makes it effective on flat and slightly curved internal surfaces. It is commonly used by machinists, tool and die makers, and metalworking technicians working with ferrous metals, cast iron, and similar hard materials.

Key Features

• Aluminum oxide abrasive grain for consistent cut on ferrous metals and hard alloys
• Vitrified bond provides rigidity and resistance to heat buildup during grinding
• 60-grit medium grade balances material removal rate with surface finish quality
• Cylinder shape (W236) suits flat-bottom and internal surface grinding applications
• Rated to 25,460 RPM for compatibility with standard die grinders and rotary tools
• 0.25 inch shank diameter fits most standard collets and tool holders

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25 inch shank collet. Suitable for grinding ferrous metals, cast iron, and similar hard materials in maintenance and fabrication applications.

Installation Notes

Mounted points must be installed and operated by qualified personnel following ANSI B7.1 safety standards for abrasive products. Before mounting, inspect the point for cracks or damage and verify the tool spindle speed does not exceed the 25,460 RPM maximum rating. Secure the shank fully into the collet and ensure the collet nut is properly tightened before use. Always disconnect power from the grinder before changing mounted points.
