Norton 61463624564 Mounted Point W218 60 Grit Cylinder

Product Description

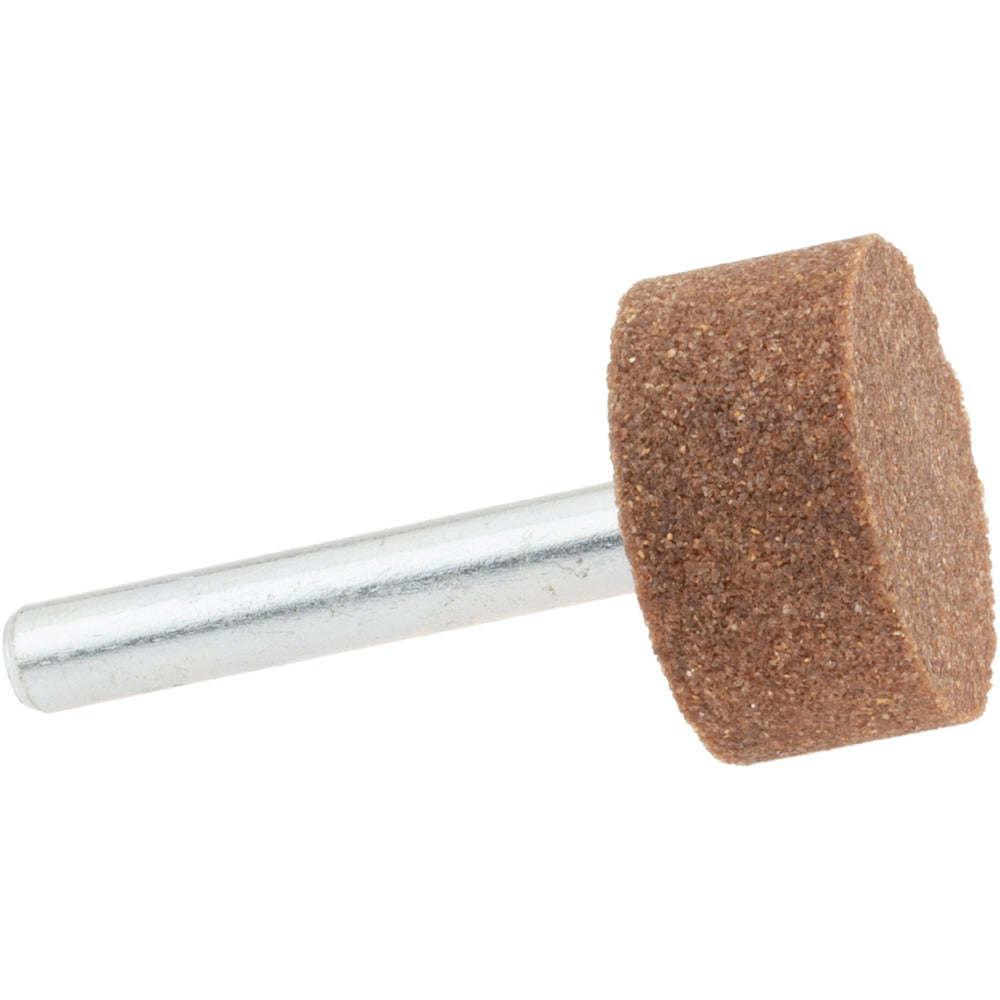

The NORTON 61463624564 is a vitrified aluminum oxide mounted point designed for precision grinding, deburring, and surface blending on metal and ferrous materials. Shaped as a W218 cylinder, it measures 0.5 inches thick and mounts on a 0.25 inch diameter, 1.5 inch long shank. With a 60 grit medium grade abrasive, it removes material efficiently while leaving a controlled surface finish. The vitrified bond provides rigidity and free-cutting action suited to die grinders and rotary tools used in tool-and-die, weld cleanup, and machining applications. Maximum operating speed is rated at 37,890 RPM.

This mounted point is suited for metalworking environments where a consistent cylindrical contact profile is required. Typical applications include internal bore blending, cavity work in molds and dies, and weld seam dressing on steel and iron components. It is commonly used by machinists, tool grinders, and fabricators operating pneumatic or electric die grinders in shop settings. The medium grit and aluminum oxide abrasive make it appropriate for general-purpose stock removal on hardened and unhardened ferrous metals.

Key Features

• W218 cylinder shape provides consistent flat-face contact for bore and cavity grinding
• 60 grit medium aluminum oxide abrasive balances stock removal with surface control
• Vitrified bond delivers rigidity and free-cutting performance on ferrous metals
• 0.25 inch shank diameter fits standard die grinder collets
• Rated to 37,890 RPM for use with high-speed rotary and die grinder tools
• 1.5 inch shank length provides reach into recessed areas and deep cavities

Compatibility

Designed as a standard 0.25 inch shank mounted point compatible with pneumatic and electric die grinders accepting 0.25 inch collets. Always verify tool RPM rating meets or exceeds the 37,890 RPM maximum marked on this abrasive before use.

Installation Notes

Mounted points must be installed by a qualified operator following ANSI B7.1 and applicable shop safety standards. Inspect the abrasive for chips or cracks before mounting and never operate above the rated maximum RPM. Secure the shank fully in the collet and ensure the die grinder is disconnected from air or power before changing abrasives. Always use appropriate eye protection and guarding during grinding operations.
