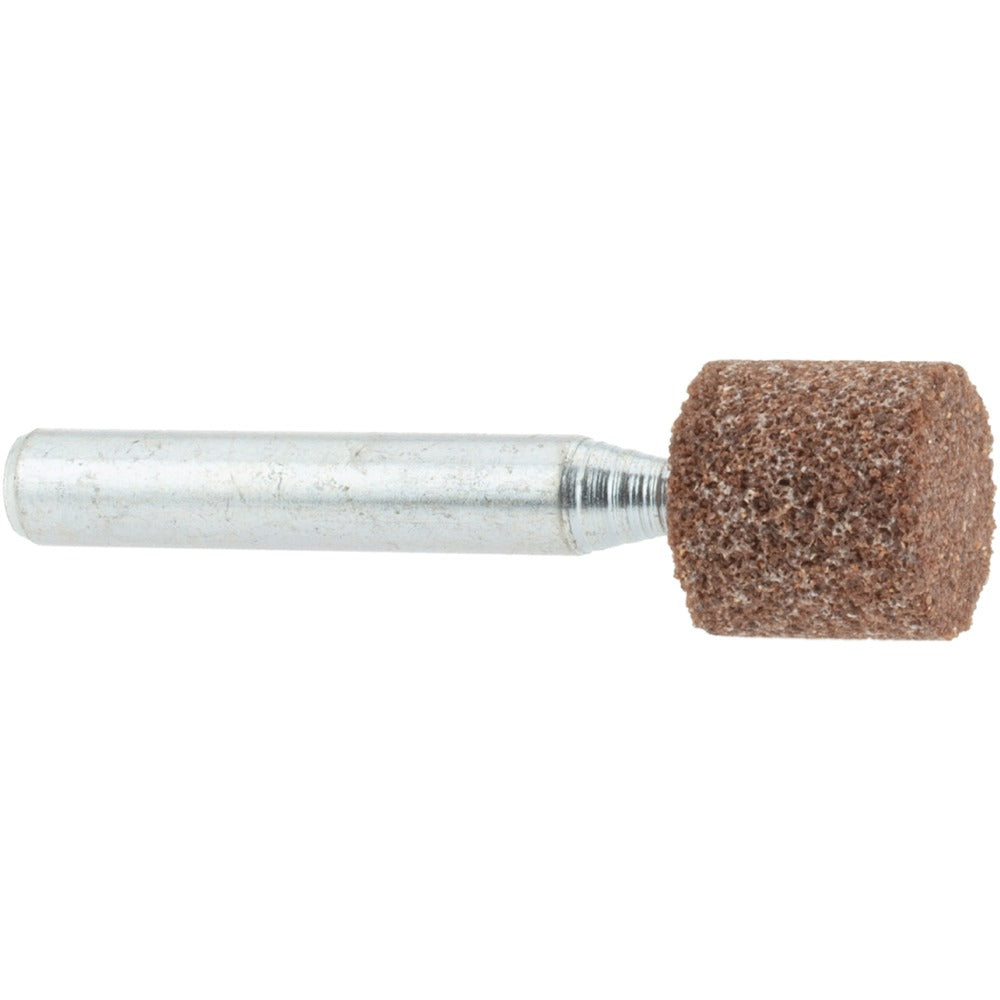

Norton 61463624526 Mounted Point W185 60 Grit 1/4 in Shank

Product Description

The NORTON 61463624526 is a cylindrical mounted point abrasive designed for precision grinding, deburring, and surface finishing in confined or contoured areas. Shaped to the W185 cylinder profile, this mounted point uses aluminum oxide abrasive bonded in a vitrified bond matrix, delivering consistent stock removal and a controlled finish. It runs at a maximum of 44470 RPM and features a 0.25 inch shank diameter with a 1.5 inch shank length for secure chuck engagement. Grit is rated at 60 with a medium grade and medium density, making it well-suited for general-purpose ferrous metal grinding where moderate material removal and surface refinement are both priorities.

This mounted point is used in tool-and-die work, weld grinding, port work, mold finishing, and general fabrication applications. It fits die grinders and rotary tools equipped with a standard 0.25 inch collet or chuck. The cylinder shape allows flat-face and side-wall contact, giving technicians access to internal bores, slots, and recessed surfaces that larger wheels cannot reach. It is appropriate for use on steel, cast iron, and other ferrous materials in both bench and portable die grinder setups.

Key Features

• W185 cylinder point shape for flat-face and side-wall grinding access
• Aluminum oxide abrasive for consistent stock removal on ferrous metals
• Vitrified bond provides rigidity and thermal stability during grinding
• 60 grit medium grade balances material removal with surface finish quality
• Rated to 44470 RPM for use with standard die grinders
• 0.25 inch shank diameter fits standard collet tooling

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25 inch shank. Suitable for ferrous metal grinding applications requiring a cylinder-profile mounted point.

Installation Notes

Mounted points are installed and removed by a qualified operator using the appropriate collet or chuck for the shank diameter. Before mounting, verify the tool spindle RPM rating meets or exceeds the point maximum RPM of 44470. Always inspect the mounted point for cracks or damage before use and never operate above the rated speed. Eye protection and appropriate PPE are required per standard grinding safety practice.
