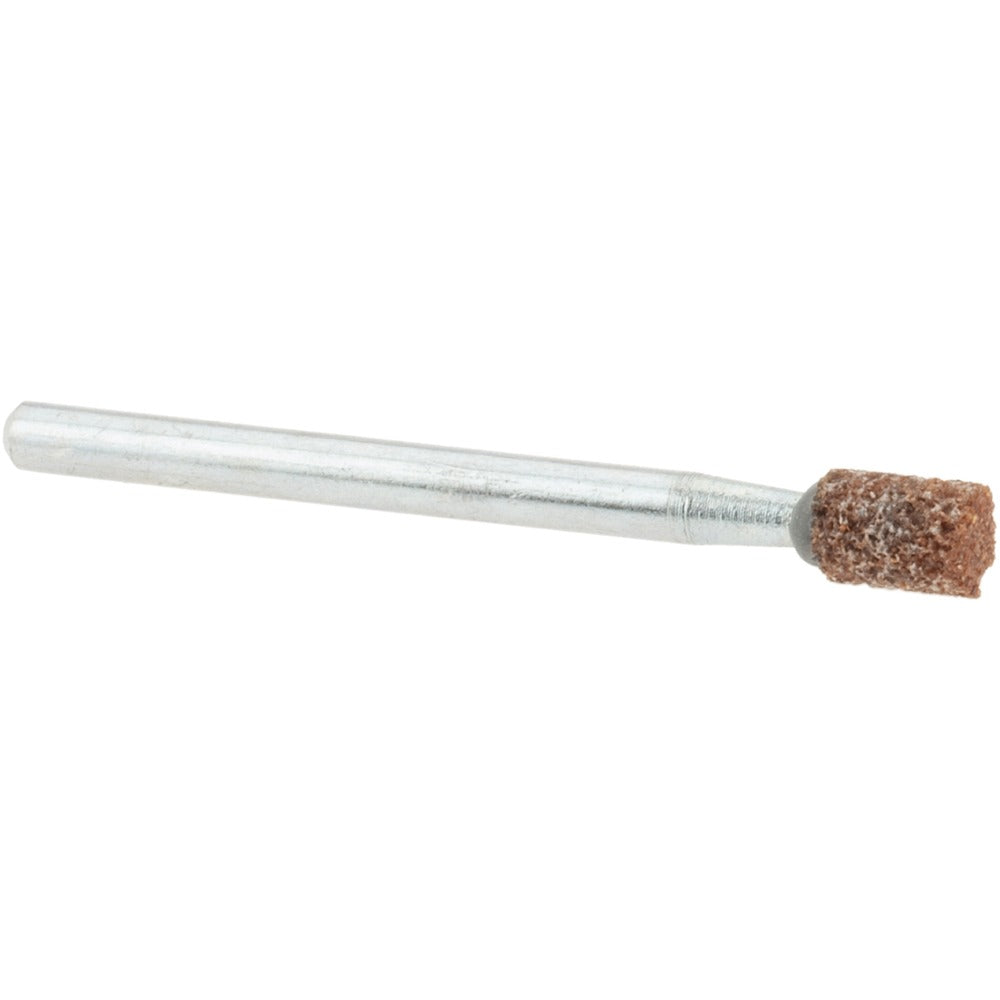

Norton 61463624495 Mounted Point W152 60 Grit

Product Description

The NORTON 61463624495 is a cylinder-shaped mounted point abrasive designed for precision grinding, deburring, and surface finishing on metal and hard materials. Built with aluminum oxide grain and a vitrified bond, this mounted point delivers consistent stock removal with a medium grade, 60-grit cut. The shank measures 1/8 inch in diameter and 1.5 inches in length, fitting standard die grinder and rotary tool collets. Rated to a maximum of 82,070 RPM, it handles high-speed applications without compromise. Machinists, tool-and-die workers, and metal fabricators reach for this style of point when working in bores, cavities, and tight contours where larger wheels cannot reach.

This mounted point suits internal grinding, port matching, weld cleanup, and light stock removal in shop and maintenance environments. The W152 cylinder profile makes it well suited for flat-bottom applications, through-bores, and stepped cavities. It is a standard choice in job shops, fabrication facilities, and maintenance repair operations where a reliable, medium-grit abrasive is needed for recurrent grinding tasks on ferrous and non-ferrous metals.

Key Features

• W152 cylinder point shape for flat-bottom and bore grinding applications
• 60-grit, medium-grade aluminum oxide abrasive for consistent stock removal
• Vitrified bond provides rigidity and free-cutting action
• 1/8 inch shank diameter fits standard die grinder and rotary tool collets
• Maximum rated speed of 82,070 RPM for high-speed operation
• Compact 1/4 inch head thickness for work in confined areas

Compatibility

Designed for use with die grinders and rotary tools equipped with a 1/8 inch collet. Suitable for grinding ferrous and non-ferrous metals, carbide, and hard materials where a cylinder-profile mounted point is required.

Installation Notes

Mounted points must be installed by personnel familiar with abrasive safety standards, including ANSI B7.1 guidelines. Inspect the point for cracks or chips before mounting and ensure the spindle speed of the tool does not exceed the 82,070 RPM rating marked on the product. Secure the shank fully in the collet before operating and use appropriate eye protection and guarding throughout use. Never apply side pressure beyond what the cylinder profile is designed to handle.
