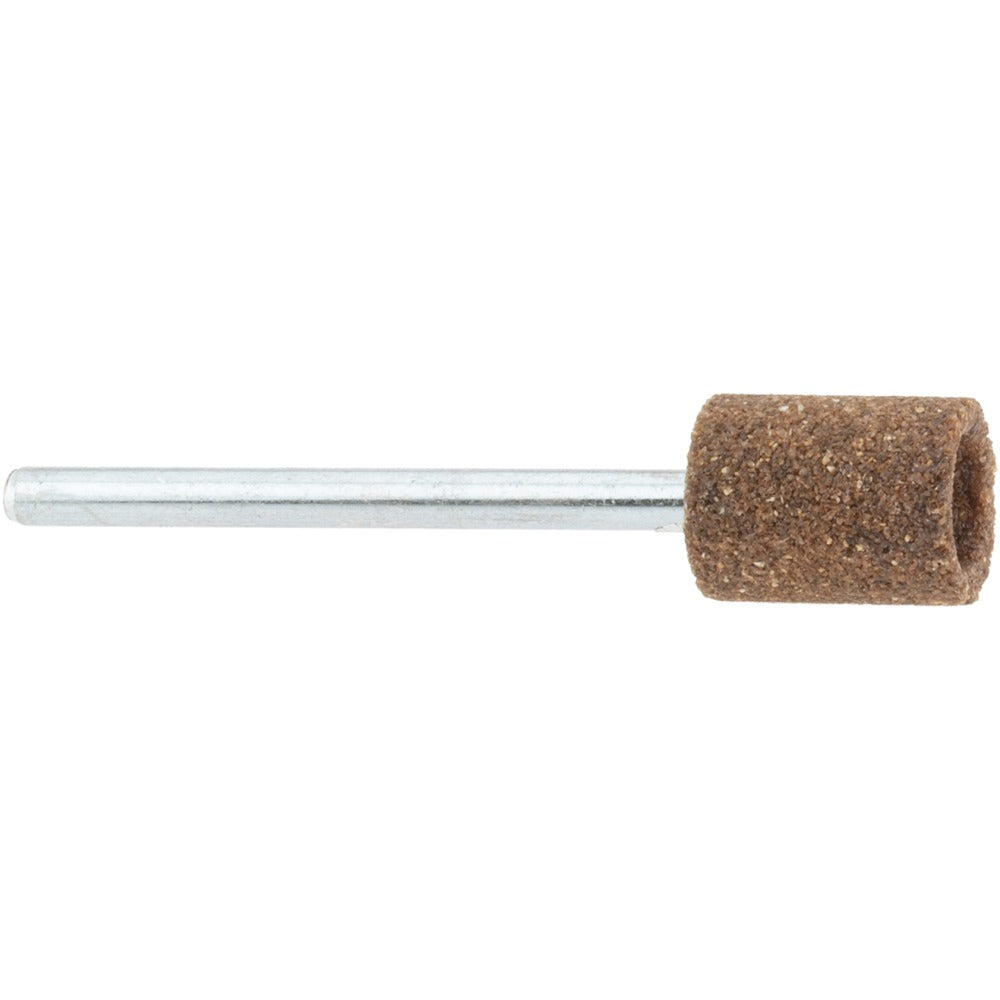

Norton 61463624479 Mounted Point B132 60 Grit Cylinder

Product Description

The NORTON 61463624479 is a vitrified aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing on metal and ferrous workpieces. It features a B132 cylinder point shape, 60 grit medium grade abrasive, and measures 0.5 inches thick with a 0.125-inch shank diameter and 1.5-inch shank length. The vitrified bond provides consistent cut rate and good wheel breakdown as the abrasive dulls, making it a reliable choice for die grinder and rotary tool applications. Machinists, tool-and-die workers, and fabricators install this part in standard die grinder chucks for internal grinding, cavity work, and weld cleanup operations.

This mounted point suits applications where controlled material removal is required in confined areas such as bores, slots, mold cavities, and weld joints. The cylinder B132 shape allows flat-face and side grinding in restricted access zones. At 65,910 maximum RPM, it is rated for high-speed die grinder use in both production and job-shop environments. Sold individually with a minimum order quantity of 5 units.

Key Features

• B132 cylinder point shape for flat-face and side grinding in confined areas
• 60 grit medium grade aluminum oxide abrasive for balanced stock removal and finish
• Vitrified bond construction for consistent, controlled cut rate
• Maximum operating speed of 65,910 RPM for die grinder compatibility
• 0.125-inch shank diameter fits standard die grinder and rotary tool collets
• Brown aluminum oxide abrasive well-suited for carbon steel and ferrous metals

Compatibility

Designed as an OEM-style replacement mounted point for use with die grinders and rotary tools accepting a 0.125-inch shank collet. No specific equipment model compatibility was stated in the product data.

Installation Notes

This mounted point is installed by machinists and metal fabricators using standard die grinder collet chucks. Before installing or removing the point, disconnect the tool from its power source and allow all rotation to fully stop. Verify the tool RPM rating meets or exceeds the 65,910 RPM rating marked on the point before operation. Inspect the mounted point for visible cracks or chips before each use and never operate above the rated maximum RPM.
