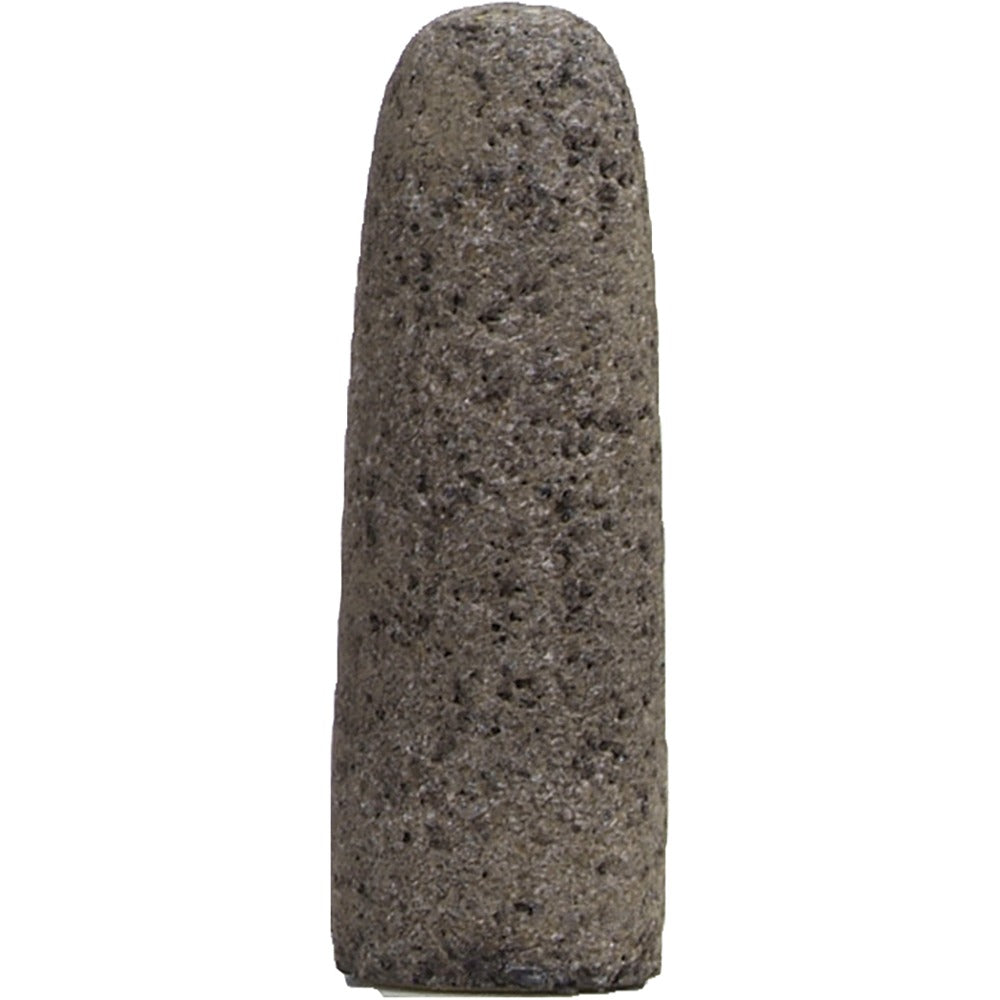

Norton 61463622342 Abrasive Cone Type 16 24 Grit

Product Description

The NORTON 61463622342 is a Type 16 abrasive cone designed for aggressive material removal on metal, welds, and castings. Built with aluminum oxide abrasive, this cone runs at a maximum of 36,290 RPM and carries a 24 grit rating, placing it in the very coarse grade range. That combination makes it well suited for fast stock removal, deburring, and surface prep work in tight or contoured areas where flat grinding wheels cannot reach. It mounts via a 3/8-24 threaded arbor hole. Machinists, fabricators, and maintenance professionals typically use this part with angle grinders or die grinders.

This abrasive cone is used in metalworking, fabrication, and industrial maintenance applications where internal or irregular surface grinding is required. It performs well in confined spaces such as pipe interiors, weld joints, and cast housings. The Type 16 cone shape provides a tapered profile that conforms to contoured workpiece geometries. It is appropriate for both shop and field use on ferrous metals and similar hard materials where coarse stock removal is the priority.

Key Features

• Aluminum oxide abrasive construction for durable, aggressive cutting action on metal surfaces
• 24 grit very coarse grade for rapid stock removal and heavy deburring
• Maximum rated speed of 36,290 RPM for high-speed grinder compatibility
• 3/8-24 threaded arbor hole for secure spindle mounting on standard die and angle grinders
• Type 16 cone profile allows grinding in contoured, recessed, and hard-to-reach areas

Compatibility

Designed for use with die grinders and angle grinders equipped with a 3/8-24 threaded spindle arbor. Intended for metalworking and fabrication applications requiring a Type 16 abrasive cone.

Installation Notes

This cone is installed by a machinist or fabricator onto a grinder spindle with a matching 3/8-24 threaded arbor. Always verify that the grinder operating speed does not exceed the 36,290 RPM maximum rating of the cone before use. Ensure the grinder is fully powered off and unplugged before mounting or removing the abrasive cone. Inspect the cone for cracks or chips before each use and replace if any damage is found.
