Norton 61463616475 Mounted Point W222 24 Grit Zirconia

Product Description

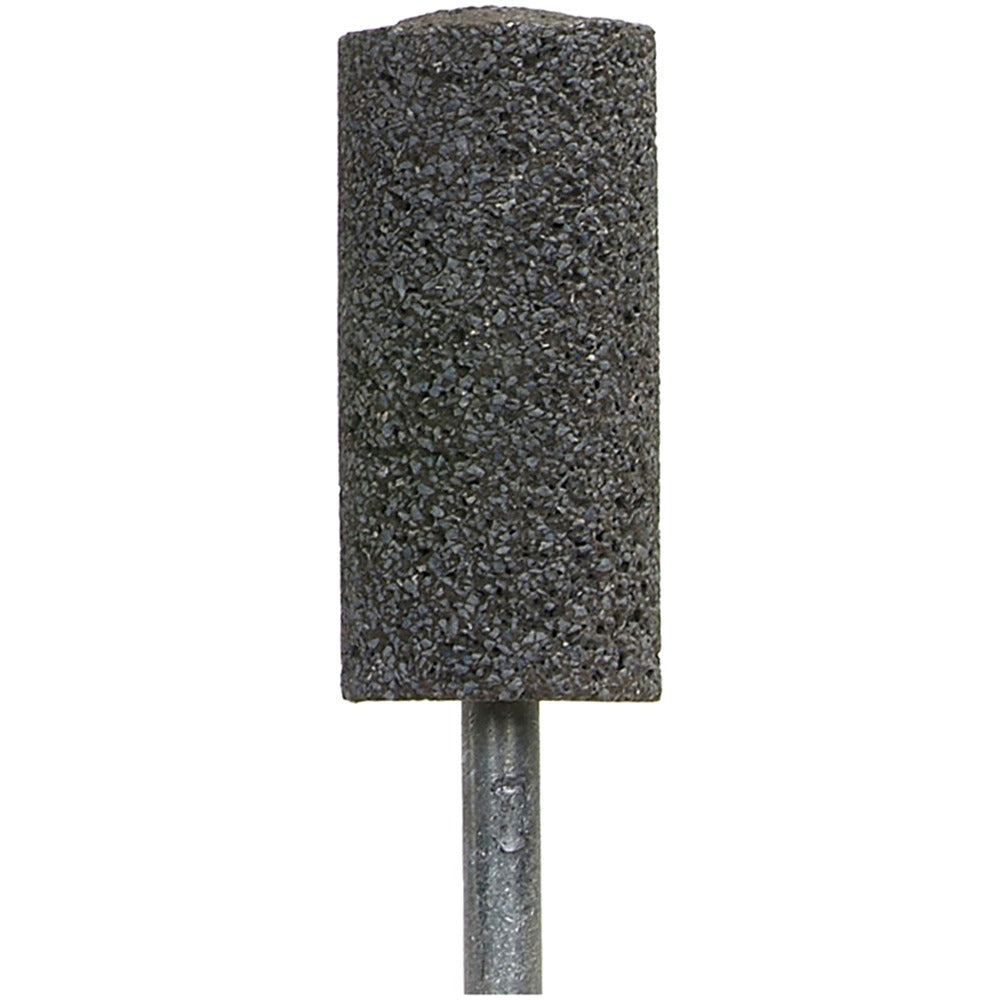

The NORTON 61463616475 is a cylinder-shaped mounted point abrasive designed for aggressive material removal in grinding and finishing applications. Built with a zirconia alumina abrasive grain bonded with a resinoid bond, this W222 profile point delivers consistent stock removal on ferrous metals, hard alloys, and weld areas. At 24 grit with a very coarse grade, it cuts fast and handles heavy burr removal, weld dressing, and surface prep where fine finish is not the goal. The 1/4-inch shank diameter fits standard die grinders and rotary tools. Maximum operating speed is 20,250 RPM.

This mounted point is used in fabrication shops, maintenance and repair operations, and metal finishing workflows. It is suited for interior contour grinding, port work, cavity blending, and deburring in areas where flat wheels cannot reach. Machinists, welders, tool and die makers, and industrial maintenance technicians typically install and use this type of abrasive in handheld pneumatic or electric die grinders. The cylinder W222 shape makes it effective on flat bottoms and side walls of grooves and recesses.

Key Features

• W222 cylinder point shape for flat-bottom and side-wall grinding in confined areas
• Zirconia alumina grain for high stock removal rate on ferrous metals and hard alloys
• 24 grit very coarse grade suited for weld dressing, heavy burr removal, and aggressive surface prep
• Resinoid bond provides durability and resistance under continuous grinding pressure
• 1/4-inch shank diameter fits most standard die grinders and rotary tool chucks
• Rated to 20,250 RPM maximum operating speed

Compatibility

Designed as a direct-fit mounted point for die grinders and rotary tools accepting a 1/4-inch shank. Verify that the tool spindle speed does not exceed the 20,250 RPM maximum rated speed of this abrasive before use.

Installation Notes

Mounted points must be installed by qualified personnel familiar with abrasive tool safety standards. Before mounting, confirm the grinder is unplugged or air supply is disconnected, and verify the spindle speed rating does not exceed 20,250 RPM. Secure the shank fully in the collet or chuck before operation and allow the wheel to reach full speed before contacting the workpiece. Always wear appropriate eye and face protection in accordance with applicable ANSI and shop safety standards.
