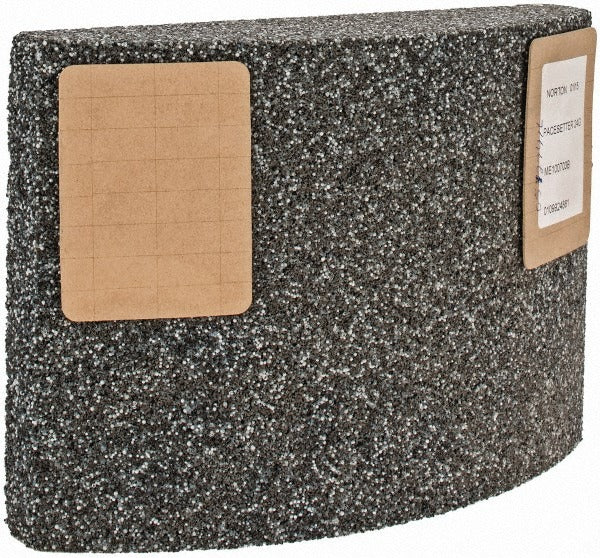

Norton 61463615886 Surface Grinding Segment 24 Grit

Product Description

The NORTON 61463615886 is a surface grinding segment designed for heavy-duty material removal on industrial surface grinders. It measures 11.25 inches wide, 8 inches high, and 3 inches thick, offering substantial cutting surface for large-area grinding applications. The segment is bonded at 24 grit, classifying it as very coarse, which suits aggressive stock removal on ferrous and non-ferrous metals. Hardness Code G indicates a relatively soft bond grade that allows fresh abrasive grains to expose quickly, maintaining cut rate on harder workpiece materials. This segment is installed and serviced by grinding machine operators and industrial maintenance technicians in production environments.

This grinding segment is intended for use on segmented-wheel surface grinders in industrial and manufacturing settings. It is referenced to Blueprint Number ME100703B and is noted for the Cortland application. Its large format and very coarse grit make it appropriate for foundry work, weld removal, and surface preparation tasks where rapid material removal outweighs surface finish requirements. It is sold in single-unit quantities.

Key Features

• 24 grit, very coarse classification for aggressive stock removal
• Hardness Code G bond grade supports consistent grain exposure on harder materials
• Large segment dimensions: 11.25 inches wide, 8 inches high, 3 inches thick
• Manufactured to Blueprint Number ME100703B for dimensional consistency
• Designed for use in Cortland application surface grinding systems

Compatibility

Referenced to Blueprint Number ME100703B and specified for the Cortland application. Confirm segment seat dimensions and wheel adapter specifications on the target grinder before installation.

Installation Notes

Surface grinding segments must be installed by qualified machine operators or maintenance personnel familiar with abrasive wheel mounting procedures. Power down and lock out the grinding machine before removing or installing any segment. Inspect the segment for cracks or chips before mounting and ring-test where applicable per ANSI B7.1 safety standards. Do not exceed the speed rating of the segment or the rated RPM of the grinding machine.
