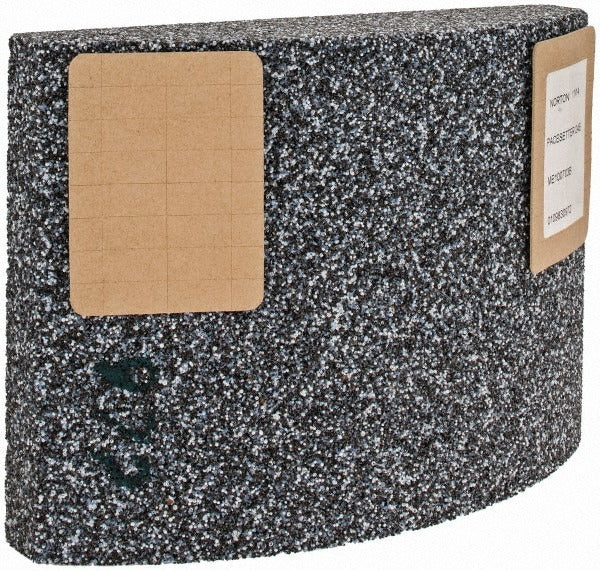

Norton 61463615884 Surface Grinding Segment 24 Grit

Product Description

The NORTON 61463615884 is a surface grinding segment designed for heavy-duty stock removal on surface grinding machines. It measures 11-1/4 inches wide, 8 inches high, and 3 inches thick, making it suited for large-diameter segmented wheel assemblies used in industrial floor and surface grinding applications. The segment carries a 24-grit, very coarse abrasive specification with a hardness code of E, indicating a soft-bond grade that releases worn grains efficiently to maintain consistent cut on hard workpieces. Grinding machine operators and industrial maintenance professionals are the primary users of this type of abrasive tooling.

This segment is intended for surface grinding operations where aggressive material removal is the priority. The very coarse 24-grit specification is appropriate for initial stock removal, scale removal, or conditioning passes on ferrous and non-ferrous workpieces. The Cortland application designation in the manufacturer data indicates a specific engineered use context. Blueprint reference ME100703B may be used to cross-reference this segment against job-specific tooling requirements or OEM segment specifications.

Key Features

• 24 grit, very coarse grade for high stock-removal rate
• Hardness code E soft bond promotes self-dressing action on hard materials
• Large segment size: 11-1/4 inches wide x 8 inches high x 3 inches thick
• Blueprint number ME100703B for OEM and print-to-spec cross-reference
• Cortland application designation for engineered-use traceability
• Sold individually, minimum order quantity of 1

Compatibility

Designed for use in segmented surface grinding wheel assemblies where the Cortland application specification applies; blueprint number ME100703B should be used to confirm fitment to specific machine chucks and wheel heads before installation.

Installation Notes

Segmented grinding wheels must be mounted by qualified grinding machine operators following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Inspect the segment for cracks or chips before mounting and never use a damaged segment. Ensure the machine spindle speed does not exceed the maximum operating speed rated for the assembled wheel. Power down and lock out the grinding machine before seating or removing any segment.
