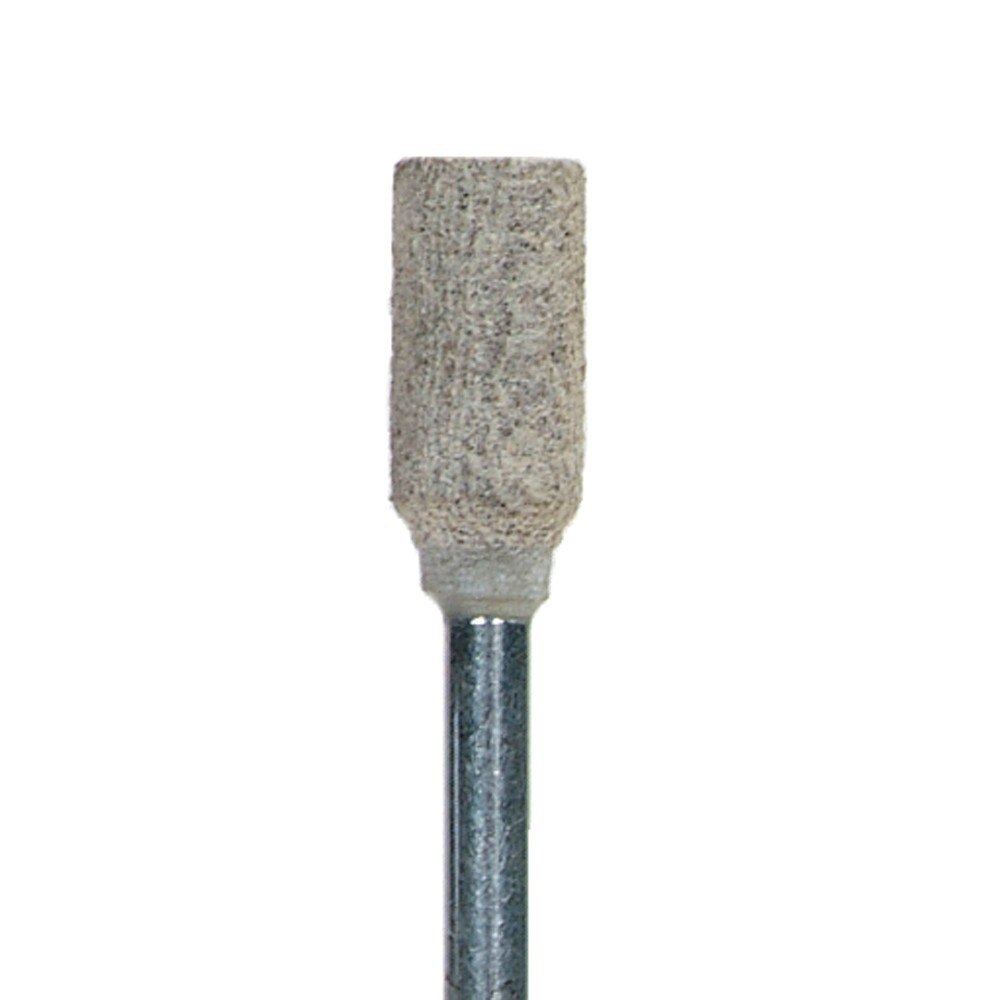

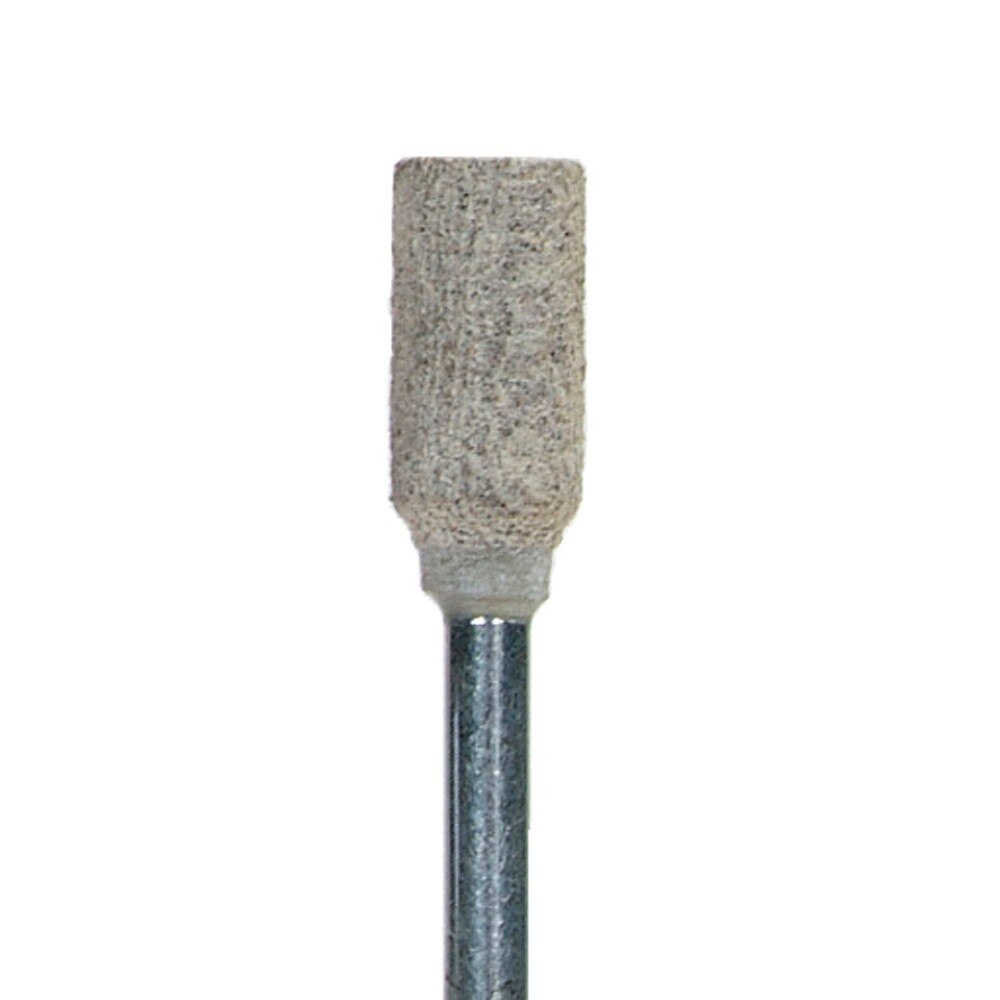

Norton 614636-22656 Mounted Point Cotton Fiber 1/4x1/2x1/8

Product Description

The NORTON 614636-22656 is a cotton fiber mounted point designed for precision grinding, deburring, and surface finishing in metalworking and fabrication applications. Built to aluminum oxide A120-HBF3 specifications, this mounted point measures 1/4 inch in diameter by 1/2 inch in length with a 1/8 inch shank. The cotton fiber construction provides a flexible, conforming cut that suits contoured surfaces and finish work where rigid abrasives leave unwanted marks. Machinists, tool and die makers, and fabricators use these points with die grinders and rotary tools to reach tight areas and internal geometries.

This mounted point suits bench and portable die grinder applications across metal finishing, weld cleanup, mold and die polishing, and general deburring tasks. The 1/8 inch shank fits standard collets found on most pneumatic and electric die grinders. The small 1/4 by 1/2 inch working head makes it well suited for accessing bores, slots, ports, and other confined workspaces where larger abrasives cannot reach.

Key Features

• Cotton fiber construction conforms to curved and irregular surfaces for smooth, consistent finishes
• Aluminum oxide A120-HBF3 abrasive specification for reliable cut rate on ferrous and non-ferrous metals
• 1/8 inch shank fits standard die grinder and rotary tool collets
• Compact 1/4 inch diameter by 1/2 inch length working head accesses tight bores and slots
• Sold individually; minimum order quantity of 25 units per the supplier specification

Compatibility

Designed as an OEM-style mounted point for use with standard 1/8 inch collet die grinders and rotary tools used in metal fabrication and finishing operations.

Installation Notes

Mounted points are installed and removed by a qualified machinist or fabricator using the appropriate collet wrench for the tool in use. Always power down and disconnect the air supply or electrical source before changing mounted points. Inspect the shank and abrasive body for cracks or damage before each use and do not exceed the maximum RPM rating of the grinding tool. Secure the workpiece before grinding to prevent movement during operation.

Technical Specifications

• Abrasive Type: Aluminum Oxide A120-HBF3
• Construction: Cotton Fiber
• Point Diameter: 1/4 inch
• Point Length: 1/2 inch
• Shank Diameter: 1/8 inch
• Weight: 0.01 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 614636-22656
