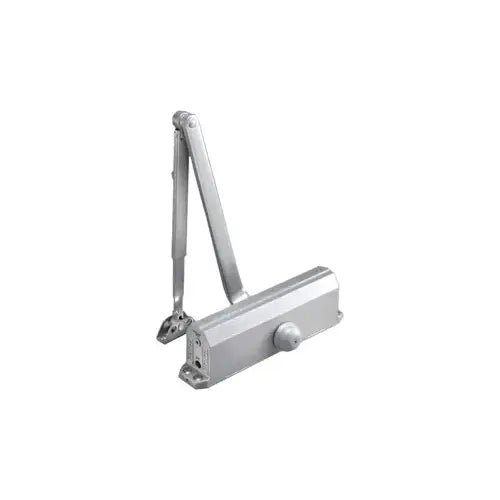

Norton 1601H-SN-690 Door Closer Adjustable 1-6

Product Description

The Norton 1601H-SN-690 is an adjustable door closer with sizes ranging from 1 to 6. This model is tri-packed to accommodate regular, parallel, and top jamb mounting configurations. The design includes a cast aluminum body that is durable and non-handed, providing flexibility during installation.

• Adjustable from size 1 to size 6
• Tri-packed for multiple mounting options
• Non-hold open arm functionality

Product Highlights

This door closer is suitable for both residential and commercial applications where accessibility is important. The adjustable spring tension allows for easy customization based on specific door weight and usage.

Product Information

Standard Information

• Brand: Norton
• MPN: 1601H-SN-690

Technical Specifications

• Grade: Grade 1
• Handing: Non-Handed
• Closer Type: Mechanical, Surface
• Maximum Opening: 180 degrees
• Mounting: Standard Arm
• Body Type: Cast Aluminum
• Arm Function: Non-Hold Open
• Spring Tension: Adjustable 1 - 6
• Height: 3.63 inches
• Length: 12.38 inches
• Width: 5 inches
