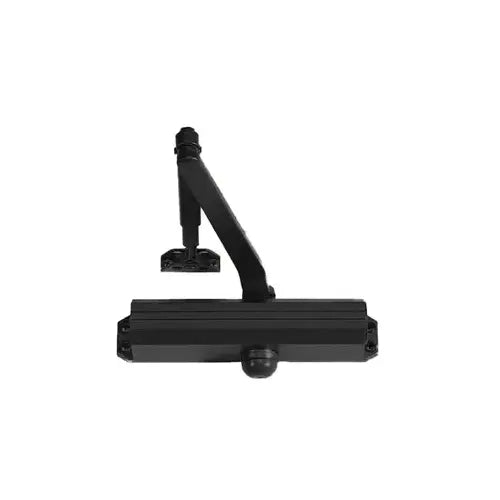

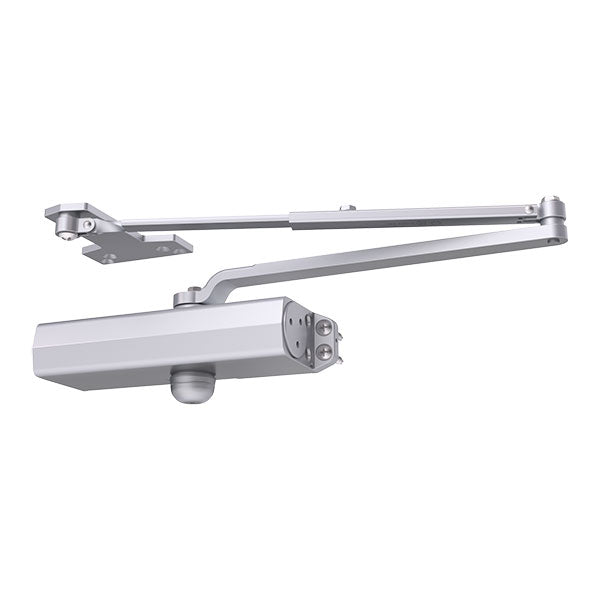

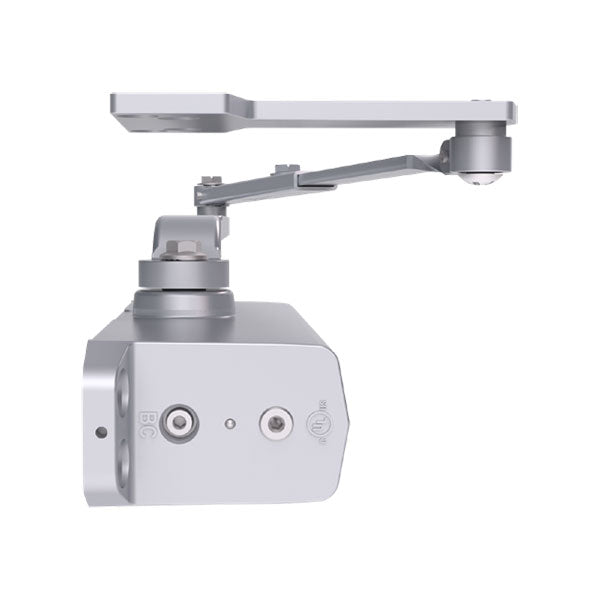

Norton 1601-SN-BSP 1601 Door Closer

Product Description

The Norton 1601-SN-BSP is a door closer designed for aluminum storefronts and suitable for light to medium traffic environments. These ANSI/BHMA Grade-1 closers are ideal for both exterior and interior doors, providing reliable performance in commercial applications.

• Independent latch, sweep, and backcheck intensity valves for better control
• Durable construction with cast aluminum body
• Tri-style mounting options available for versatile installation

Product Highlights

This door closer exceeds twenty-five million cycles, ensuring longevity and minimal replacement needs.

Product Information

Standard Information

• Brand: Norton
• Usage: Standard Duty

Technical Specifications

• Finishes: 689 Aluminum, 690 Dark Bronze, 691 Light Bronze, BSP Black Suede
• ANSI/BHMA Standard: ANSI/BHMA A156.4, Grade 1 certified
• ADA Compliance: Meets ADA requirements
• Body Construction: Cast Aluminum Body
• Spring Size: Adjustable Spring Size 1-6
• Handing: Non-Handed
• Mounting Options: Parallel Arm, Regular, Top Jamb
• Fire Rating: UL and cUL Listed for up to 3 hours
• Warranty: 30 Years
• Mounting Hole Spacing Width: 9-1/16 inches
• Mounting Hole Spacing Height: 3/4 inch
