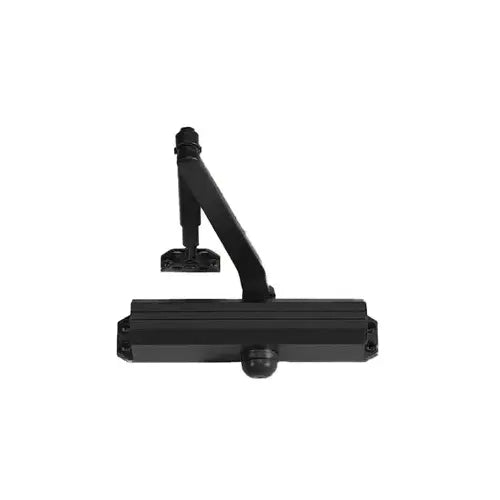

Norton 1601-SN-693 Ada Surface Door Closer Adjustable Spring Sizes 1-6

Product Description

The NORTON 1601-SN-693 Ada Surface Door Closer is designed for reliable door operation in commercial settings. This model features adjustable spring sizes from one to six, enhancing versatility for various door weights. It is ideal for regular, parallel, and top jamb mounting, making it suitable for different installation requirements.

• Adjustable spring sizes from 1 to 6 for customized settings
• Tri-packed arm allows for versatile mounting options
• Durable heavy-duty cast-aluminum construction

Product Highlights

This door closer is UL-listed and rated Grade 1, ensuring it meets high durability standards for medium traffic areas.

Product Information

Standard Information

• Construction: Heavy-Duty cast-aluminum body
• Function: Hydraulic Manual Door Closer

Technical Specifications

• Closer Type: Non-Hold
• Handing: Non-Handed
• Ligature Resistant: No
• Closer Mounting Style: Parallel, Regular, Top Frame
• Finish: Black
• Arm Type: Adjustable Sizes 1 to 6, Standard
• Door Width: 48 inches
• Housing Height: 2-5/8 inches
• Housing Length: 9 3/4 inches
• Max. Door Opening: 180 Degrees
• Piston Diameter: 1 3/8 inches
• Projection from Wall: 2 7/8 inches
• Pinion Journals Diameter: 5/8 inches
• Fire Rating: 3 hours
• Certifications: ANSI A156.4 Grade 1, UL and cUL Listed
