Norton 1601-SN-690 Door Closure Adjustable 12.3 x 5.1 x 3.6

Product Description

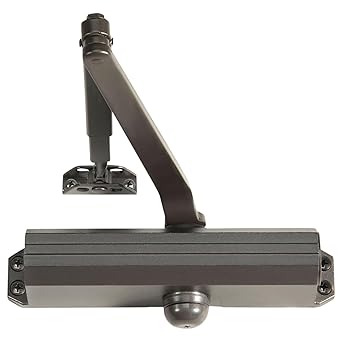

The Norton 1601-SN-690 door closer is suitable for various applications, particularly aluminum storefront doors and frames. This door closer is ANSI/BHMA Grade-1 certified, making it ideal for both interior and exterior doors in medium traffic commercial settings.

• Adjustable spring sizes 3 through 6.
• Tri-style installation for regular arm, parallel arm, and top jamb configurations.
• Non-handed, allowing for easy installation.

Product Highlights

This door closure is designed for standard duty applications, providing reliable performance and durability.

Product Information

Standard Information

• Brand: Norton
• Material: Cast Aluminum Alloy Shell

Technical Specifications

• Exterior Finish: Aluminum
• ANSI/BHMA Standard: ANSI/BHMA A156.4, Grade 1 certified
• ADA Compliance: Meets ADA requirements under A117.1 Accessibility Code
• Body Construction: Cast Aluminum Body
• Spring Size: Adjustable Spring Size 3-6
• Handing: Non-Handed
• Mounting Options: Parallel Arm (Push Side), Regular Arm (Pull Side), Top Jamb (Push Side)
• Fire Rating: UL and cUL Listed for up to 3 Hours
• Warranty: 30 Years
• Usage: Standard Duty
• Templating (Hole Pattern): 3/4 x 9-1/16 inches
