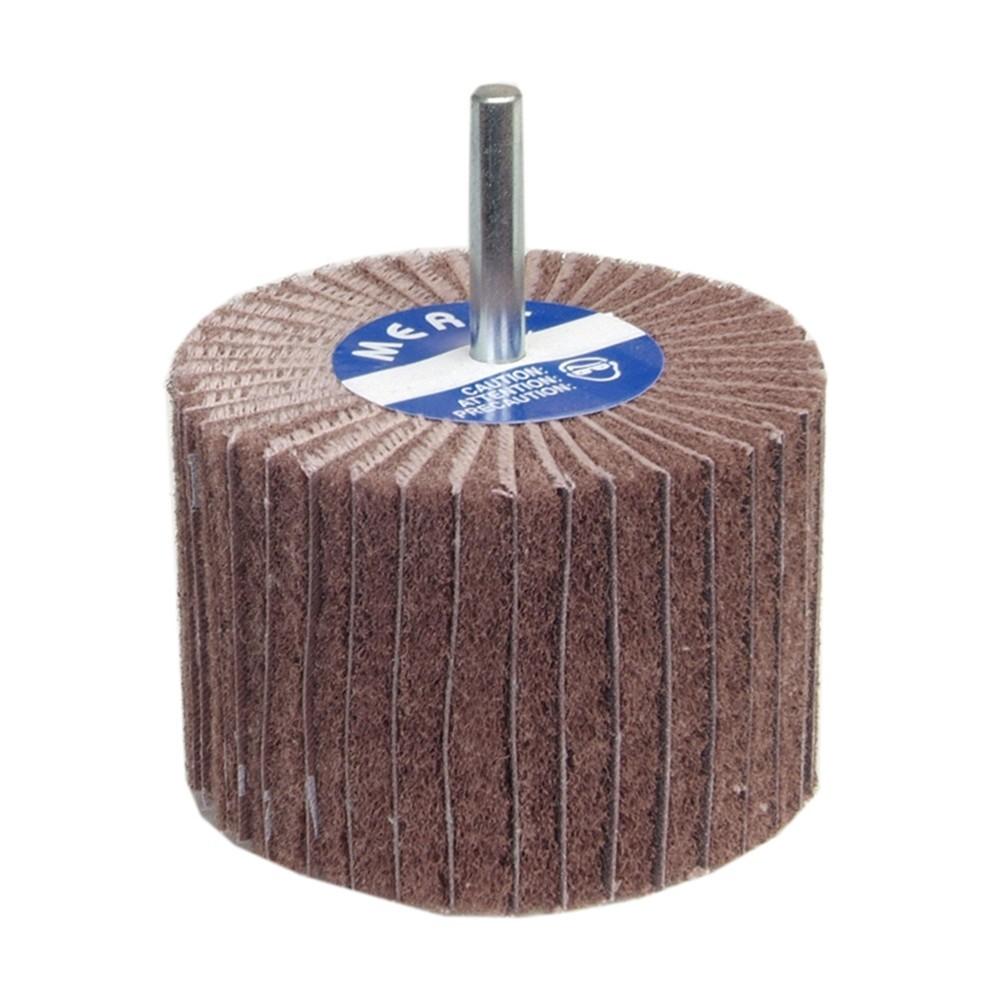

Norton 088341-38116 Interleaf Flap Wheel 80 Grit 3x2 in

Product Description

The NORTON 088341-38116 is a spindle-mounted interleaf flap wheel designed for precision surface finishing on metal, wood, and composite materials. Measuring 3 inches in diameter by 2 inches in width with a 0.25 inch shank, this wheel uses aluminum oxide (A/O) abrasive at 80 grit — a medium grit well suited for blending, deburring, and surface prep work. The interleaf construction alternates abrasive flaps with non-woven cushioning material, which helps the wheel conform to contoured and irregular surfaces while maintaining consistent cut rate. It is typically installed by machinists, metal fabricators, and maintenance technicians using a compatible spindle or die grinder.

This flap wheel is used in shop and field finishing applications where a conformable abrasive is needed on curved, cylindrical, or contoured workpieces. The 80-grit aluminum oxide formulation makes it effective for moderate stock removal and surface conditioning prior to finer finishing passes. Typical applications include weld blending, tube and pipe finishing, casting cleanup, and general metalworking surface prep in both production and maintenance environments. The spindle-mount configuration allows direct chuck or collet installation on standard rotary tools and drill presses.

Key Features

• Interleaf construction conforms to curved and irregular surfaces for consistent finish
• 80-grit aluminum oxide abrasive provides medium cut rate suitable for blending and deburring
• Spindle-mounted design with 0.25 inch shank fits standard collets and chucks
• 3 inch diameter by 2 inch width offers a broad contact surface for efficient coverage
• Sold individually (each); minimum order quantity of 10 units

Compatibility

Designed for use with rotary tools, die grinders, and drill presses accepting a 0.25 inch shank spindle-mounted abrasive wheel.

Installation Notes

Installation is performed by machinists or fabricators using standard collet or chuck tooling rated for the shank diameter. Ensure the spindle speed of the host tool does not exceed the maximum RPM rating of the wheel before operation. Wear appropriate eye protection and secure the workpiece before engaging the wheel. Inspect the wheel for damage before each use and do not use if flaps or the core show signs of deterioration.

Technical Specifications

• Diameter: 3 inches
• Width: 2 inches
• Shank Size: 0.25 inches
• Abrasive Type: Aluminum Oxide (A/O)
• Grit: 80
• Mount Type: Spindle Mounted
• Weight: 1.5 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 088341-38116
