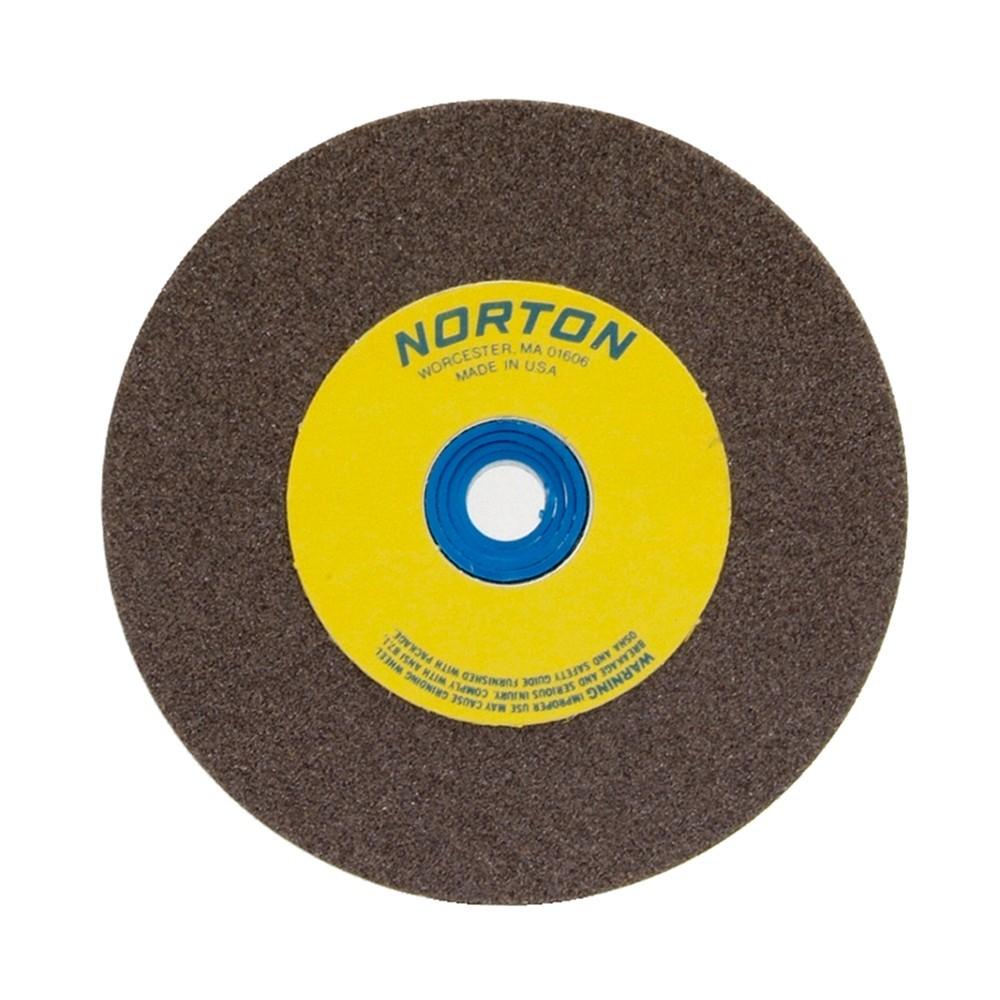

Norton 076607-88295 Bench Grinding Wheel 10x1x1.25 in 2485 Rpm

Product Description

The NORTON 076607-88295 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and sharpening applications. Built with standard aluminum oxide abrasive in a coarse grain, it delivers aggressive stock removal on ferrous metals including steel and iron. The wheel measures 10 inches in diameter, 1 inch wide, and has a 1.25-inch arbor bore, with a maximum rated speed of 2485 RPM. It is intended for use on bench grinders and pedestal grinders found in machine shops, maintenance facilities, fabrication shops, and trade service trucks. Machinists, maintenance technicians, and metalworkers are the primary installers and users of this wheel.

This wheel suits general-purpose tool dressing, edge restoration, and light shaping of metal workpieces. The coarse grain rating makes it best suited for rapid material removal rather than finishing work. It is a common choice for shop-floor equipment where a durable, reliable abrasive wheel is needed for everyday metal grinding tasks on bench or pedestal-mounted grinders.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder spindles
• Aluminum oxide abrasive provides reliable cutting action on ferrous metals
• Coarse grain for high stock removal rates
• 10 x 1 x 1.25 inch dimensions fit common bench grinder configurations
• Maximum operating speed of 2485 RPM
• Gray color designation indicates standard general-purpose aluminum oxide formulation

Compatibility

Designed as an OEM-style replacement or standard fitment for bench grinders and pedestal grinders accepting a Type 1 straight wheel with a 1.25-inch arbor bore and a 10-inch wheel diameter.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or mounting a wheel. Inspect the wheel for cracks or chips before mounting, and perform a ring test per ANSI guidelines. Never exceed the maximum rated RPM marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grain: Coarse
• Diameter: 10 inches
• Width: 1 inch
• Arbor Bore: 1.25 inches
• Maximum RPM: 2485
• Color: Gray
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88295
