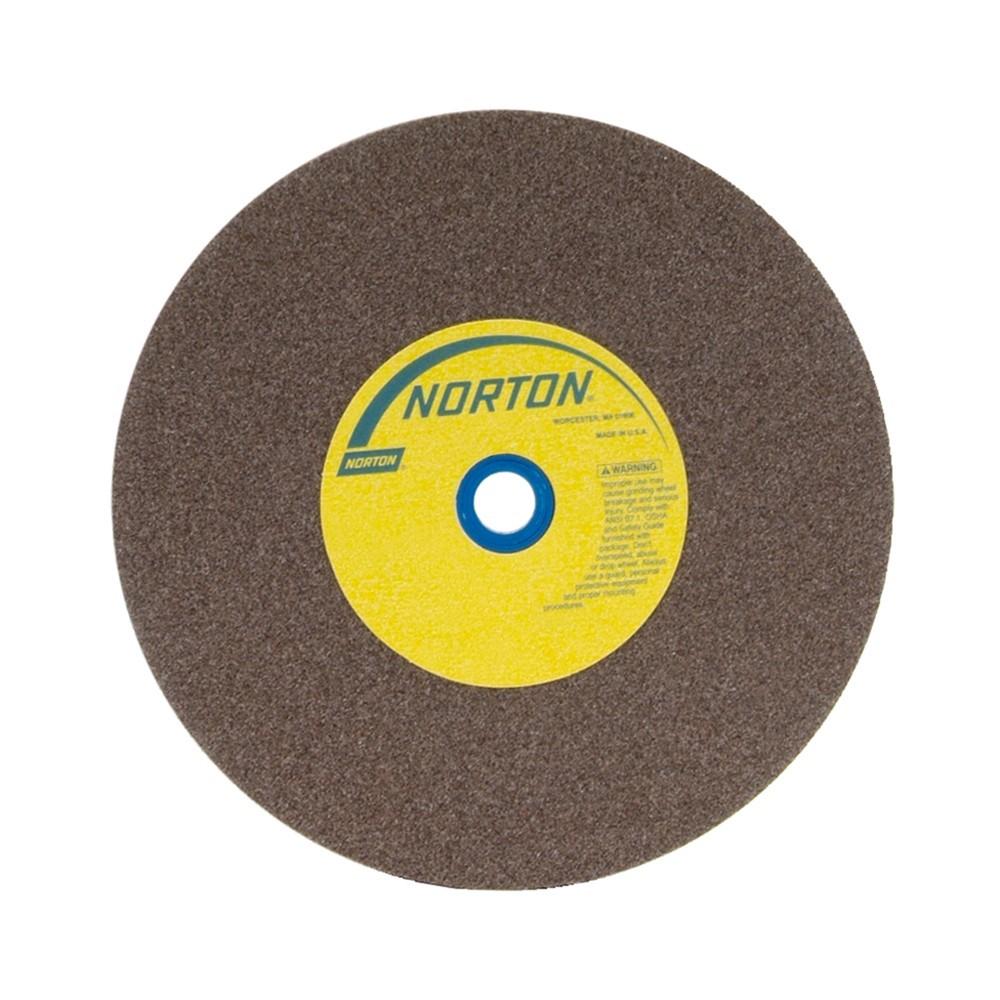

Norton 076607-88290 Bench Grinding Wheel 10x1x1.25 in

Product Description

The NORTON 076607-88290 is a Type 1 straight bench and pedestal grinding wheel engineered for general-purpose metal grinding applications. Built from aluminum oxide abrasive, this wheel delivers consistent stock removal on ferrous metals including steel and iron. It measures 10 inches in diameter, 1 inch wide, with a 1.25-inch arbor bore, and carries a maximum operating speed of 2,485 RPM. Medium grit provides a balance between aggressive material removal and surface finish, making it a standard choice for deburring, shaping, and sharpening operations in shop environments.

This wheel is suited for use on standard bench grinders and pedestal grinders in maintenance shops, fabrication facilities, and industrial service environments. It is a general-purpose workhorse appropriate for edge dressing, tool reconditioning, and light stock removal on metal workpieces. Licensed tradespeople and experienced shop technicians are the typical installers and operators.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder spindles
• Aluminum oxide abrasive construction for general-purpose metal grinding
• Medium grit rating balances cutting speed with surface finish
• Maximum operating speed of 2,485 RPM — do not exceed this rating
• 1.25-inch arbor bore fits common bench and pedestal grinder arbors
• Gray color designation consistent with standard aluminum oxide general-purpose wheels

Compatibility

Designed as a general-purpose replacement or shop-stock grinding wheel for bench grinders and pedestal grinders accepting a 10-inch diameter, 1-inch wide, Type 1 straight wheel with a 1.25-inch arbor bore.

Installation Notes

Installation should be performed by a qualified operator following applicable ANSI B11.9 grinder safety standards. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation — do not mount a damaged wheel. Confirm the machine's rated speed meets or exceeds the wheel's maximum RPM before operation, and ensure proper flange and bushing fitment for the 1.25-inch bore.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit Grade: Medium
• Diameter: 10 inches
• Width: 1 inch
• Arbor Bore: 1.25 inches
• Maximum RPM: 2,485
• Color: Gray
• Application: General Purpose Metal Grinding
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88290
