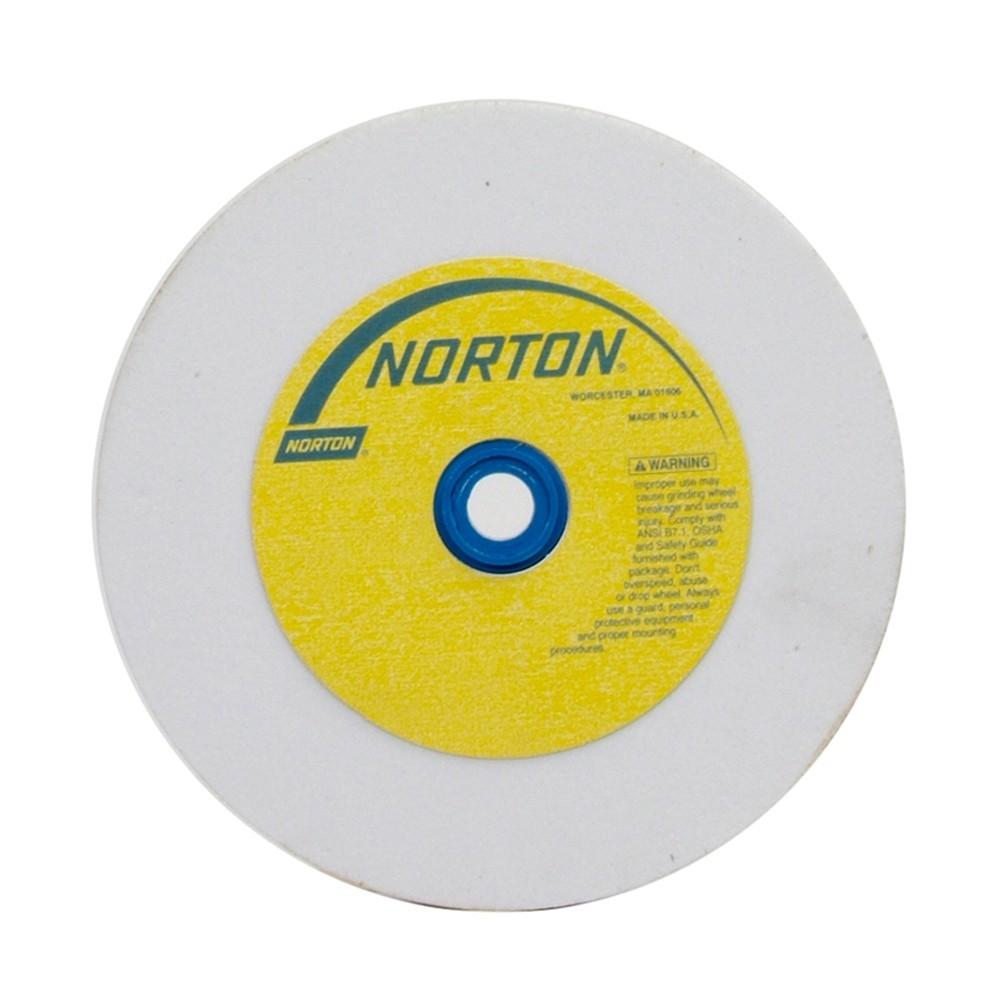

Norton 076607-88283 Bench Grinding Wheel 8x1x1 150 Grit

Product Description

The NORTON 076607-88283 is a high-speed bench and pedestal grinding wheel designed for precision material removal and fine finishing work on stationary grinders. Constructed from white aluminum oxide abrasive, this wheel delivers consistent, cool cutting action that is well suited to sharpening high-speed steel tooling, drill bits, chisels, and similar cutting edges. The wheel measures 8 inches in diameter by 1 inch wide with a 1-inch arbor bore and is rated to a maximum of 3600 RPM. At 150 grit, it falls in the extra fine range, making it the right choice when surface finish quality matters as much as stock removal.

This wheel is used in machine shops, tool rooms, maintenance facilities, and trade shops where bench or pedestal grinders are part of the everyday workflow. The extra fine 150 grit is particularly common for finish-sharpening lathe tools, plane irons, and other precision cutting instruments where edge geometry and surface quality are critical. It is installed and serviced by machinists, tool-and-die workers, maintenance technicians, and skilled tradespeople operating stationary bench or pedestal grinder equipment.

Key Features

• White aluminum oxide abrasive provides cool, controlled cutting with reduced heat buildup at the workpiece
• 150 grit extra fine rating delivers superior surface finish for sharpening and finish grinding
• 8 inch diameter by 1 inch wide by 1 inch arbor bore fits standard bench and pedestal grinder configurations
• 3600 RPM maximum speed rating for use on high-speed stationary grinders
• Sold individually — one wheel per unit

Compatibility

Designed as an OEM-style replacement or upgrade wheel for standard bench and pedestal grinders accepting an 8-inch diameter wheel with a 1-inch arbor bore.

Installation Notes

Bench and pedestal grinding wheels must be installed by qualified personnel following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before changing wheels. Inspect the wheel for cracks or chips before mounting and perform a ring test by tapping lightly with a non-metallic implement — a dull thud indicates a damaged wheel that must not be used. Ensure the wheel flanges, blotters, and arbor nut are properly seated and torqued according to the grinder manufacturer specifications, and always dress the wheel before first use.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Grit: 150 Extra Fine
• Wheel Diameter: 8 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 3600
• Application Type: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88283
