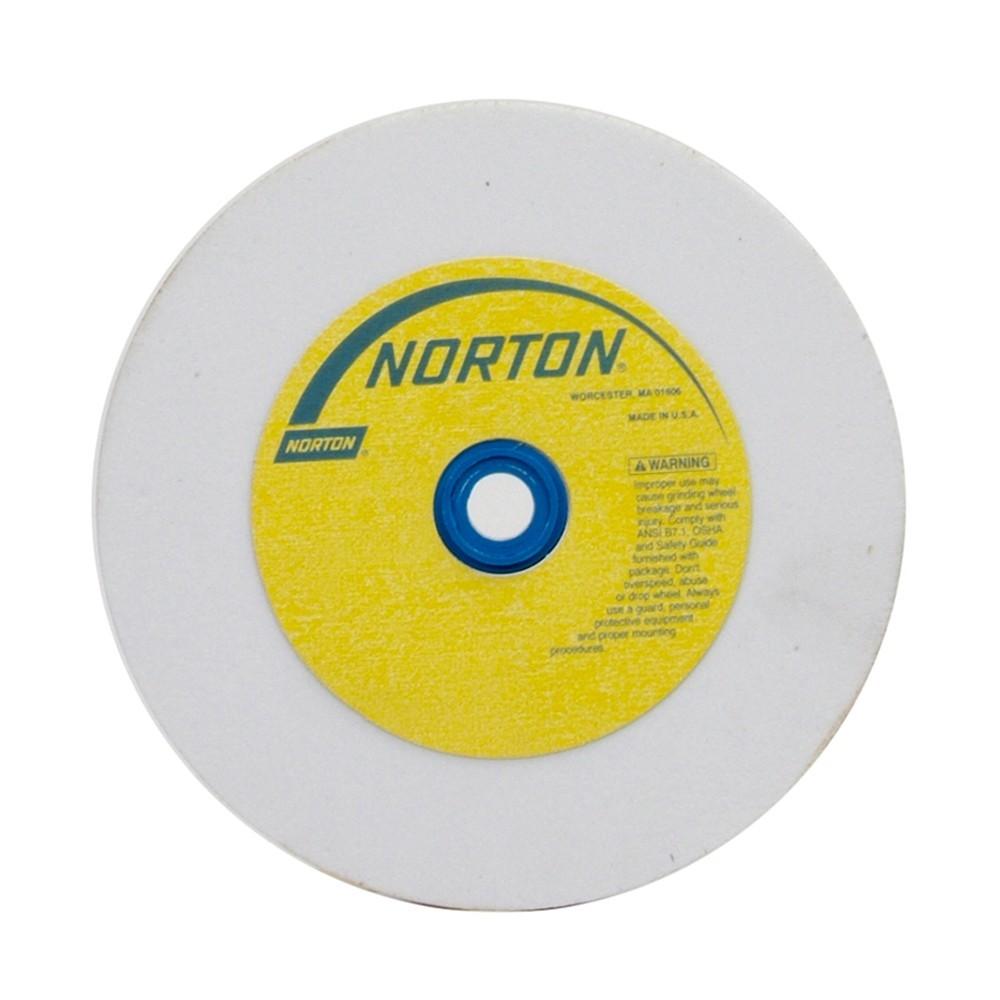

Norton 076607-88282 Bench Pedestal Wheel 8x1x1 100 Grit

Product Description

The NORTON 076607-88282 is a white aluminum oxide bench and pedestal grinding wheel built for high-speed dry grinding applications. Measuring 8 inches in diameter, 1 inch wide, with a 1-inch arbor bore, it carries a Fine 100 grit rating suited for precision sharpening and light stock removal on ferrous metals and high-speed steel tooling. The maximum operating speed is 3,600 RPM. White aluminum oxide construction provides a cool, free-cutting action that reduces heat buildup at the workpiece, making it a preferred choice for sharpening high-speed steel tool bits, drill bits, and edge tools. This wheel is installed and used by machinists, tool-and-die workers, HVAC and plumbing tradespeople maintaining cutting tools, and maintenance technicians working across industrial and shop environments.

This grinding wheel is designed for use on standard bench grinders and pedestal grinders operating at or below 3,600 RPM. It fits grinders accepting an 8-inch wheel with a 1-inch arbor bore. The Fine 100 grit makes it appropriate for finishing passes, edge refinement, and sharpening applications rather than heavy material removal. Typical install scenarios include dedicated tool-sharpening stations in shop environments and maintenance bays where edge tool condition is critical to workflow.

Key Features

• White aluminum oxide abrasive for cool, free-cutting performance on high-speed steel and ferrous metals
• Fine 100 grit rating for precision sharpening and surface finishing
• 8-inch diameter by 1-inch wide by 1-inch arbor bore for compatibility with standard bench and pedestal grinders
• Rated to 3,600 RPM maximum operating speed for high-speed grinder use
• Sold individually per unit

Compatibility

Designed for use on bench grinders and pedestal grinders that accept an 8-inch diameter wheel with a 1-inch arbor bore and operate at a maximum spindle speed of 3,600 RPM or less.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Before mounting, inspect the wheel for cracks or chips using a ring test and verify the grinder spindle speed does not exceed the wheel maximum RPM rating. Power down and lock out the grinder before removing the old wheel and installing the replacement. Always install proper wheel guards and eye shields before returning the grinder to service.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Wheel Diameter: 8 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Grit: 100 Fine
• Maximum RPM: 3,600
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88282
