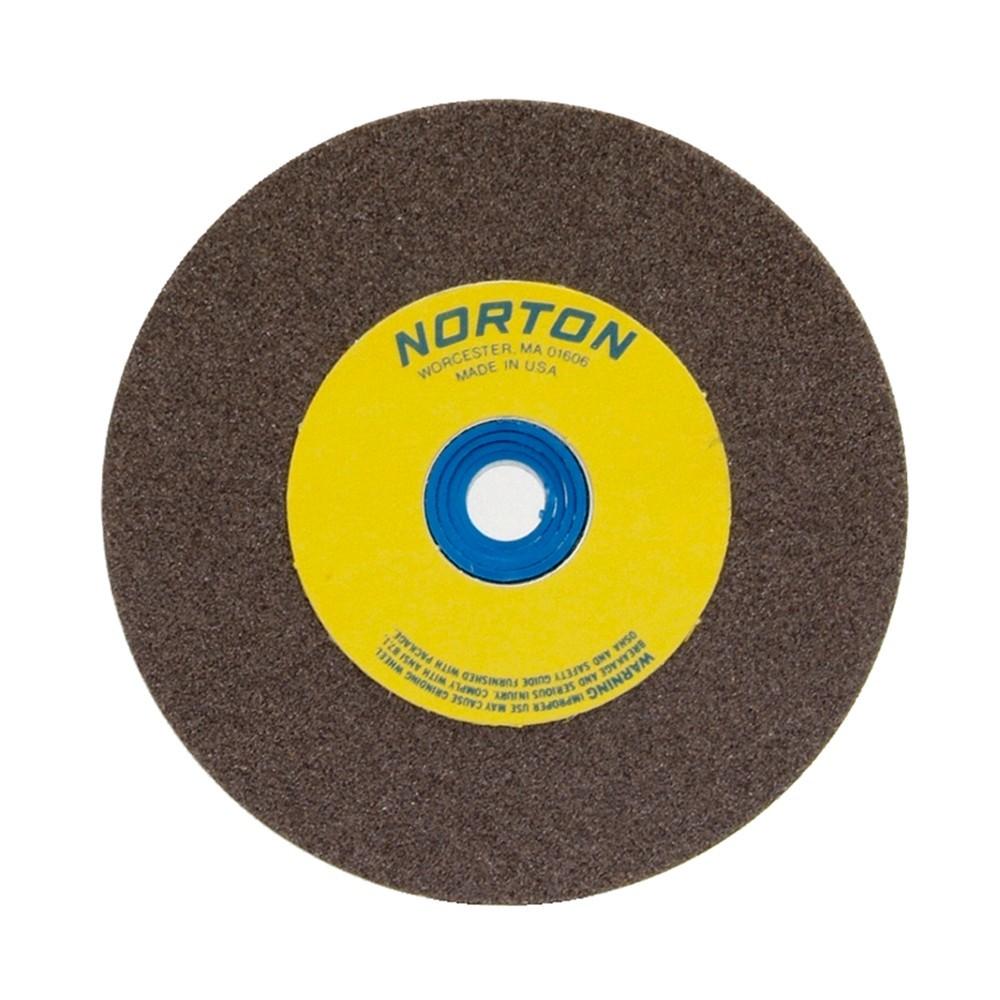

Norton 076607-88275 Type 1 Bench Grinding Wheel 7x1x1 Coarse

Product Description

The NORTON 076607-88275 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and stock removal. Built with aluminum oxide abrasive in a coarse grade, it delivers aggressive cutting action on ferrous metals, making it well suited for tool sharpening, deburring, and surface conditioning. The wheel measures 7 inches in diameter by 1 inch wide with a 1-inch arbor bore and is rated for a maximum operating speed of 3,600 RPM. It is sold individually and intended for use by metalworkers, maintenance technicians, and trade professionals working with bench or pedestal grinder setups.

This wheel is configured for stationary bench and pedestal grinders found in fabrication shops, maintenance facilities, and trade service environments. The coarse aluminum oxide abrasive is best applied to carbon steel, tool steel, and general ferrous workpieces where fast material removal is the priority. It is not recommended for use on aluminum, brass, or other non-ferrous soft metals where loading of the abrasive grain would reduce performance.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder spindles
• Coarse-grade aluminum oxide abrasive for aggressive stock removal on ferrous metals
• 7-inch diameter x 1-inch wide x 1-inch arbor bore dimensions
• 3,600 RPM maximum rated operating speed
• General-purpose formulation suitable for tool sharpening and deburring

Compatibility

Designed as a general-purpose replacement or consumable for standard bench and pedestal grinders accepting a Type 1 straight wheel with a 7 x 1 x 1 inch profile and a 1-inch arbor bore.

Installation Notes

Mounting and dressing of bench grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Before mounting, inspect the wheel for cracks or chips using the ring test. Power down and lock out the grinder before removing the old wheel or installing the new one. Always use the supplied blotters and flanges and never exceed the maximum RPM rating marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grade: Coarse
• Color: Gray
• Wheel Diameter: 7 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 3,600
• Application: General Purpose Metal Grinding
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88275
