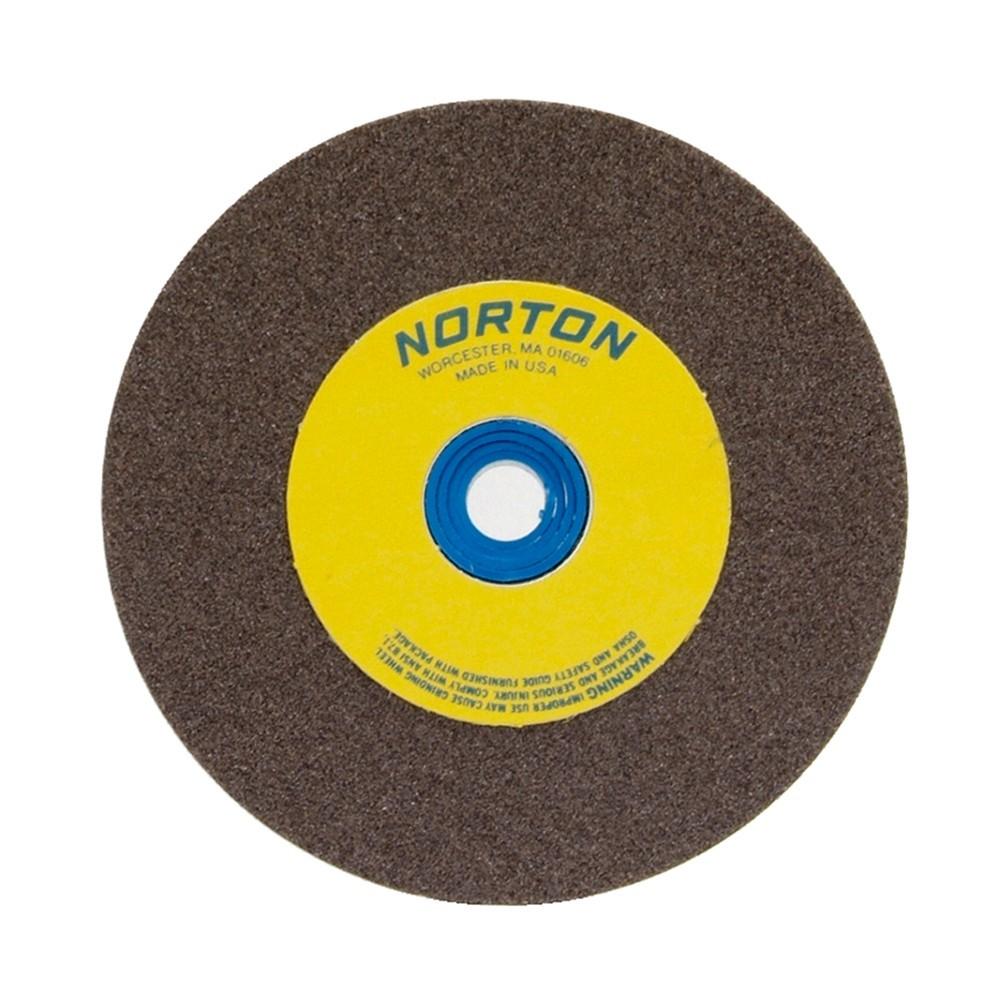

Norton 076607-88265 Type 1 Bench Grinding Wheel 7x1x1 Fine

Product Description

The NORTON 076607-88265 is a Type 1 flat-face bench and pedestal grinding wheel designed for general-purpose metal grinding and deburring. Built with aluminum oxide abrasive in a fine grit rating, this wheel delivers controlled material removal and a smoother surface finish on ferrous metals. It measures 7 inches in diameter, 1 inch wide, and carries a 1-inch arbor bore. Rated to a maximum of 3,600 RPM, it is sized for standard bench grinders and pedestal grinder setups found in fabrication shops, maintenance facilities, and trade service environments. Machinists, maintenance technicians, and metalworking tradespeople are the typical end users.

This wheel suits general shop applications where fine material removal is needed on steel, iron, and similar ferrous metals. Common tasks include tool sharpening, edge dressing, light stock removal, and weld cleanup on bench or pedestal grinder setups. Its aluminum oxide composition makes it well matched to carbon steel and high-speed steel tooling. The fine grit rating is appropriate where surface quality matters more than aggressive cutting action, such as finishing drill bits, chisels, and hand tools.

Key Features

• Type 1 flat-face wheel profile for straight bench and pedestal grinder mounting
• Aluminum oxide abrasive — standard choice for general-purpose ferrous metal grinding
• Fine grit rating for smoother finishes and controlled material removal
• 3,600 RPM maximum operating speed
• 7 x 1 x 1 inch dimensions fit common bench and pedestal grinder arbors

Compatibility

Designed as a general-purpose replacement or service wheel for standard bench grinders and pedestal grinders accepting a 1-inch arbor bore and rated for wheels up to 7 inches in diameter at 3,600 RPM or lower.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation and perform a ring test. Never exceed the wheel's rated maximum RPM, and ensure the machine guard is properly installed before operating.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Aluminum Oxide
• Grit: Fine
• Diameter: 7 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 3,600
• Color: Gray
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88265
