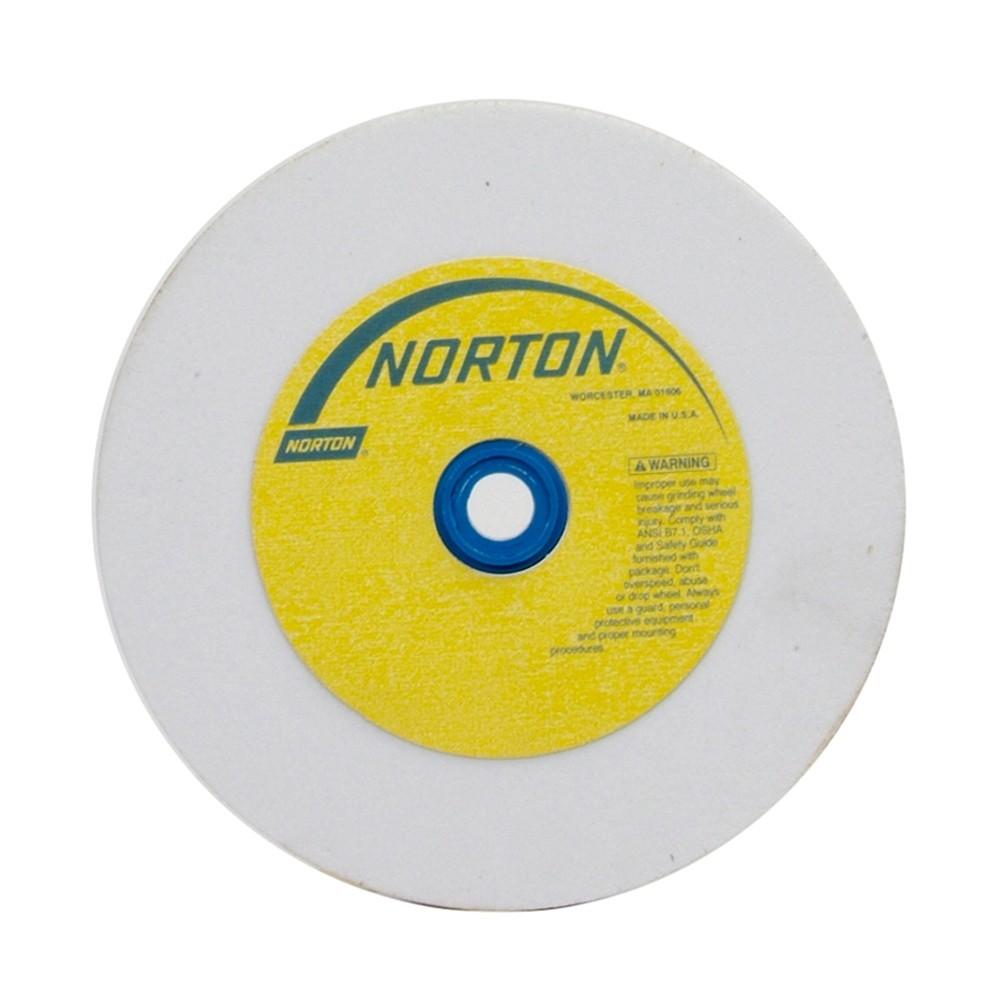

Norton 076607-88263 Bench Grinding Wheel 6x1x1 150 Grit

Product Description

The NORTON 076607-88263 is a high-speed bench and pedestal grinding wheel engineered for precision material removal and fine finishing work. Constructed from white aluminum oxide abrasive, this wheel measures 6 inches in diameter, 1 inch wide, and carries a 1-inch arbor bore. It is rated at a maximum of 4140 RPM and features a 150-grit Extra Fine designation, making it well suited for light stock removal, edge refinement, and finishing on ferrous metals and tool steel. Machinists, tool-and-die professionals, and maintenance technicians who require a controlled cut with minimal surface roughness will find this wheel appropriate for bench grinder and pedestal grinder applications.

This wheel is designed for use on standard bench grinders and pedestal grinders in job shops, maintenance facilities, and machine shops. The Extra Fine 150-grit white aluminum oxide formulation is particularly effective for sharpening high-speed steel cutting tools, finishing hardened steel components, and detail work requiring a smooth, consistent surface. Its high-speed rating supports use on grinders operating within the posted maximum RPM range. Units are sold individually.

Key Features

• White aluminum oxide abrasive construction for cool, precise cutting on ferrous metals and tool steel
• 150-grit Extra Fine designation for finishing, sharpening, and light stock removal
• Rated to 4140 RPM maximum for high-speed bench and pedestal grinder use
• 6-inch diameter by 1-inch width with 1-inch arbor bore for standard grinder compatibility
• Consistent abrasive structure supports controlled material removal with low surface roughness

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for standard bench grinders and pedestal grinders accepting a 6 x 1 x 1-inch wheel with a 1-inch arbor bore operating at or below 4140 RPM.

Installation Notes

Grinding wheel installation should be performed by a qualified machinist or maintenance technician with the grinder fully powered down and unplugged before mounting. Always inspect the wheel for cracks or chips prior to installation using the ring test, and never exceed the maximum RPM stamped on the wheel. Ensure proper flanges, blotters, and guards are in place and meet ANSI B7.1 safety standards before returning the machine to service.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Grit: 150 Extra Fine
• Wheel Diameter: 6 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Maximum Speed: 4140 RPM
• Application Type: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88263
