Norton 076607-88262 Bench Grinding Wheel 6x1x1 100 Grit

Product Description

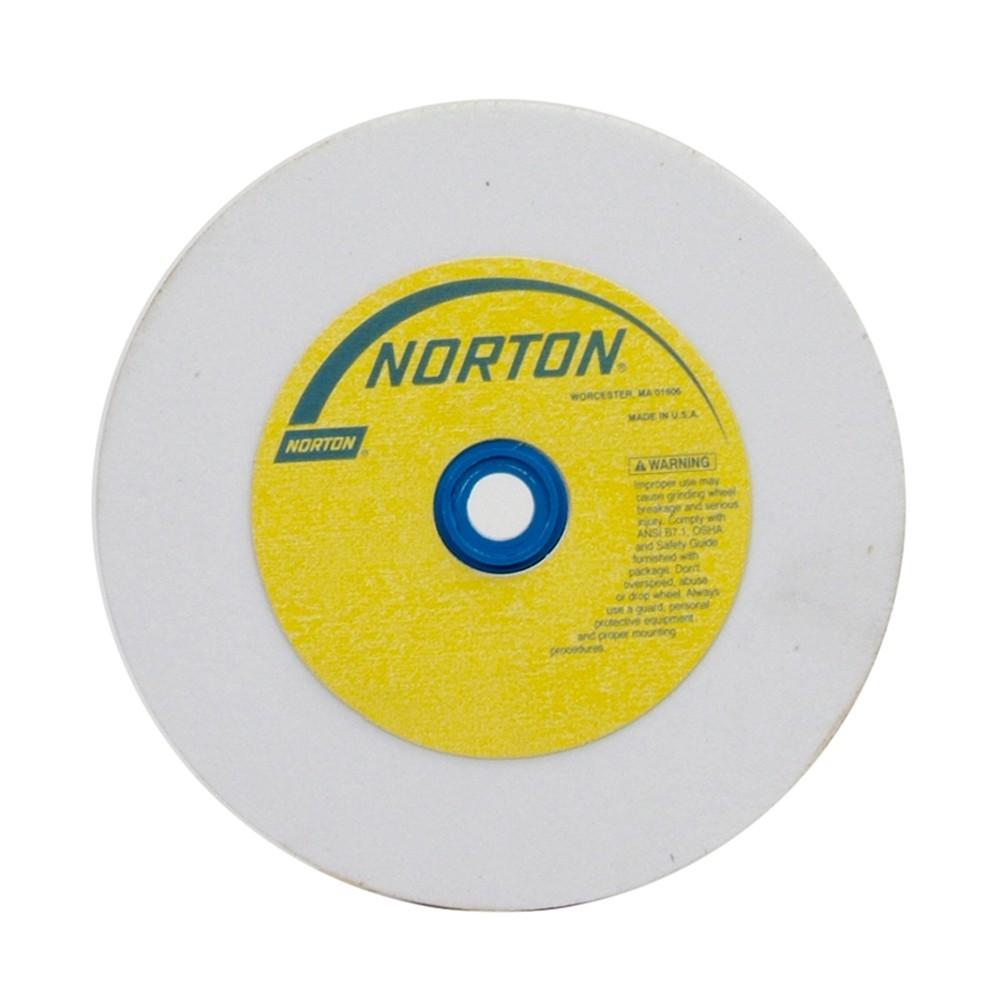

The NORTON 076607-88262 is a high-speed bench and pedestal grinding wheel engineered for precision material removal on ferrous and non-ferrous metals. Constructed from white aluminum oxide abrasive, this wheel delivers a cool, free-cutting action that minimizes heat buildup at the workpiece — a key advantage when grinding tool steels, HSS drill bits, and cutting edges that cannot tolerate thermal damage. At 6 inches in diameter, 1 inch wide, and with a 1-inch arbor bore, it mounts directly to standard bench or pedestal grinders. The fine 100-grit specification suits finish grinding, light stock removal, and sharpening applications. Maximum rated speed is 4140 RPM.

This wheel is suited for use in machine shops, maintenance facilities, and tool rooms where controlled, low-heat grinding is required. It is appropriate for sharpening high-speed steel tooling, lathe bits, chisels, plane irons, and similar cutting implements. The white aluminum oxide bond is widely specified when the workpiece metallurgy is sensitive to overheating. Installation is performed by qualified machinists or maintenance technicians familiar with bench grinder setup and wheel-mounting procedures.

Key Features

• White aluminum oxide construction for cool, free-cutting performance on hardened steels
• 100 grit fine specification for finish grinding and sharpening operations
• 6 inches diameter x 1 inch wide x 1 inch arbor bore — fits standard bench and pedestal grinders
• Maximum operating speed of 4140 RPM
• High-speed wheel designation rated for continuous shop use

Compatibility

Designed as an OEM-style replacement or standard-fitment wheel for 6-inch bench and pedestal grinders accepting a 1-inch arbor bore.

Installation Notes

Bench and pedestal grinding wheel installation must be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or mounting a wheel. Inspect the wheel for cracks or chips using the ring test before mounting, and never exceed the maximum rated RPM marked on the wheel. Use appropriate flanges and blotting paper as required by the grinder manufacturer.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Grit: 100 Fine
• Wheel Diameter: 6 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 4140
• Wheel Type: High Speed Bench and Pedestal
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88262
