Norton 076607-88260 Bench Pedestal Grinding Wheel 6x1x1 Coarse

Product Description

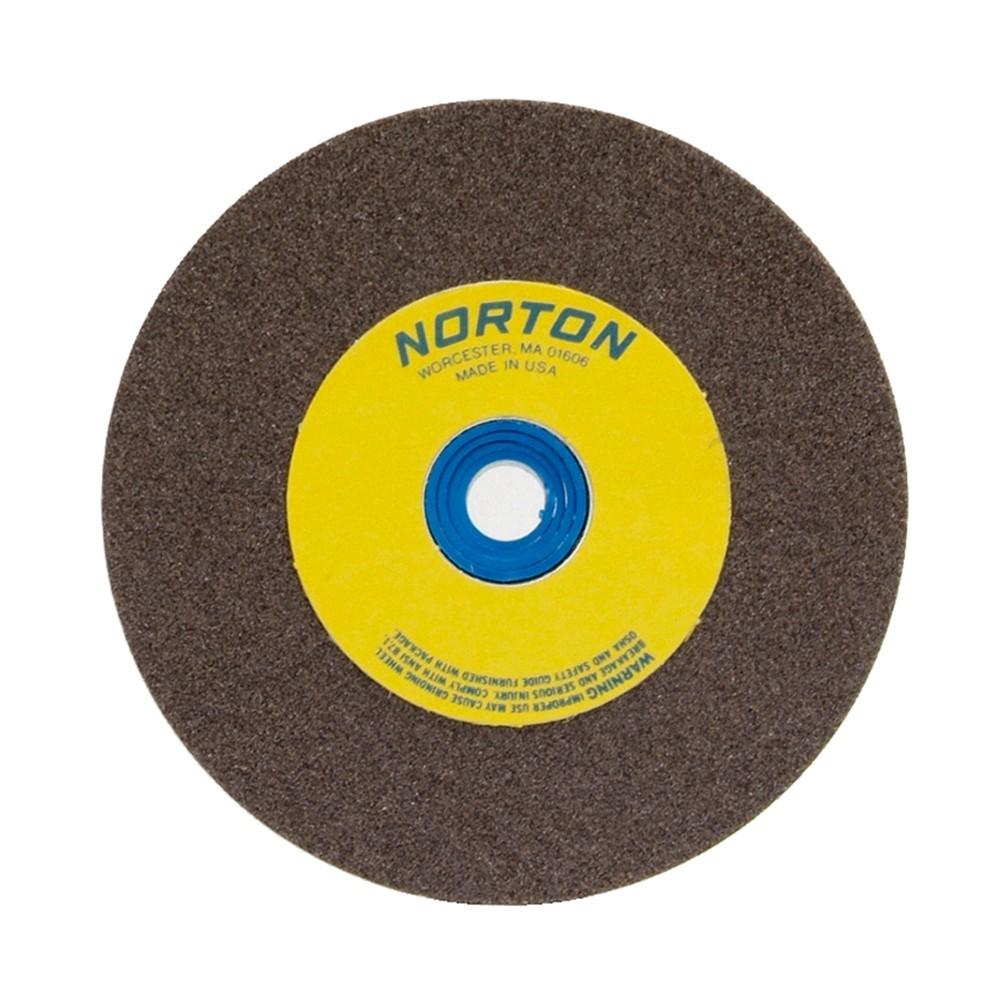

The NORTON 076607-88260 is a Type 1 aluminum oxide bench and pedestal grinding wheel designed for metal grinding applications. This straight-profile wheel measures 6 inches in diameter, 1 inch wide, with a 1-inch arbor bore, and is rated coarse grit for aggressive stock removal on ferrous metals. It mounts on standard bench grinders and pedestal grinders commonly found in machine shops, fabrication facilities, HVAC shops, and maintenance departments. The aluminum oxide abrasive is well-suited for grinding carbon steel, alloy steel, and other hard metals where fast cutting action and consistent wheel integrity are required. Sold one wheel per case.

This wheel fits bench grinders and pedestal grinders used in industrial, commercial, and trade service environments. Typical applications include sharpening tool bits, deburring metal stock, shaping fasteners, and general metal fabrication work. The coarse grit rating makes it the right choice when material removal rate matters more than surface finish. It is a straightforward drop-in replacement for worn wheels of the same Type 1 profile, diameter, width, and bore specification.

Key Features

• Type 1 straight wheel profile for use on standard bench and pedestal grinders
• Aluminum oxide abrasive engineered for grinding ferrous and hard metals
• Coarse grit for high stock removal and aggressive cutting action
• 6-inch diameter x 1-inch width x 1-inch arbor bore dimensions
• Consistent wheel construction supports stable, controlled grinding performance

Compatibility

Designed as an OEM-style replacement for Type 1 straight bench and pedestal grinding wheels with a 6 x 1 x 1 inch configuration used on standard bench and pedestal grinders in metal-working and trade service applications.

Installation Notes

Bench and pedestal grinding wheel installation should be performed by qualified personnel following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or installing a wheel. Inspect the wheel for cracks or chips before mounting, and perform a ring test by tapping the wheel lightly to confirm it is free of damage. Never exceed the maximum RPM rating marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit Grade: Coarse
• Diameter: 6 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Application: Metal Grinding
• Weight: 23 pounds
• Unit of Measure: Case
• Minimum Order Quantity: 1

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88260
