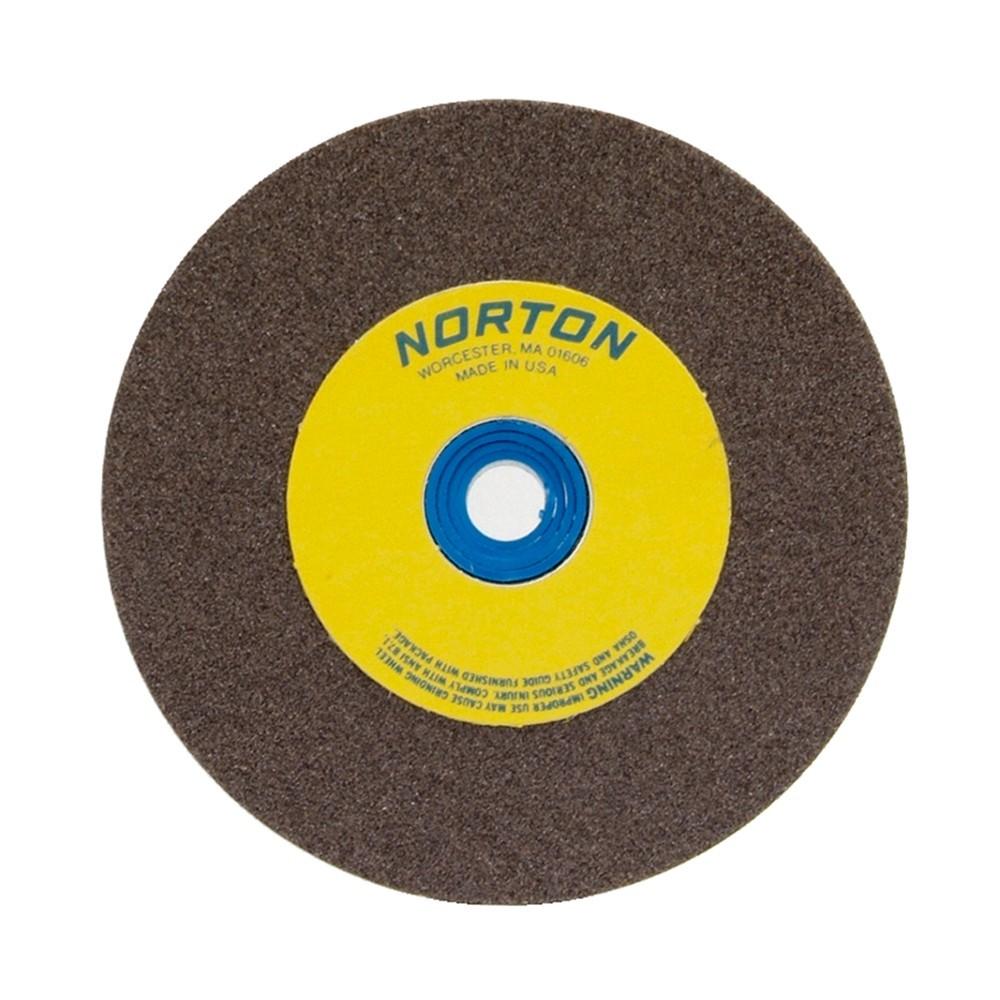

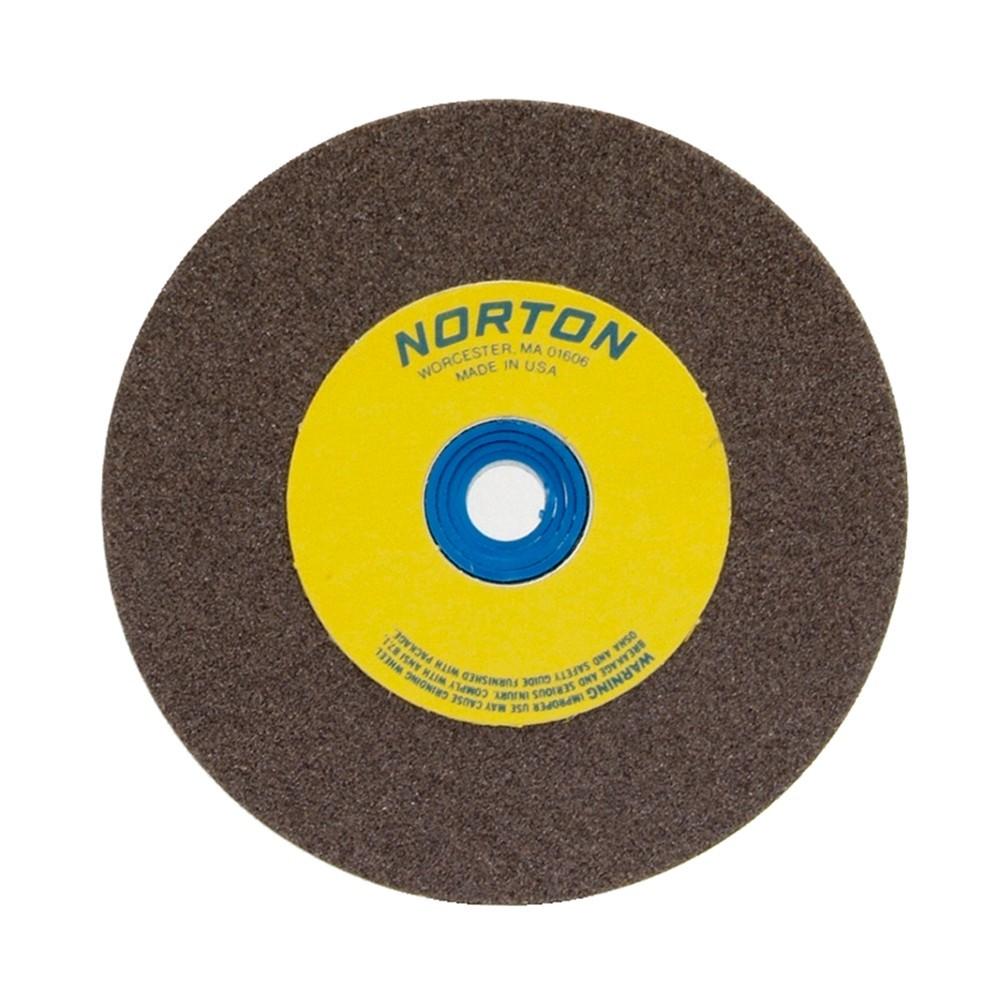

Norton 076607-88255 Type 1 Bench Grinding Wheel 6x1x1 Medium

Product Description

The NORTON 076607-88255 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and deburring applications. Constructed from standard aluminum oxide abrasive in a medium grit grade, it delivers consistent stock removal on ferrous metals including steel and iron. The wheel measures 6 inches in diameter, 1 inch wide, and carries a 1-inch arbor bore. It is rated to a maximum of 4,140 RPM, making it suitable for standard bench grinder and pedestal grinder spindle speeds. Machinists, fabricators, maintenance technicians, and tool-and-die shops typically keep this wheel on hand for everyday edge work and surface prep.

This wheel fits 6-inch bench grinders and pedestal grinders commonly found in metal fabrication shops, maintenance facilities, machine shops, and industrial workstations. The aluminum oxide construction makes it well suited for grinding carbon steel, alloy steel, and other ferrous materials where a moderate cut rate and a reasonably fine finish are both required. Each unit is sold individually.

Key Features

• Type 1 straight wheel profile for use on bench and pedestal grinders
• Standard aluminum oxide abrasive for general-purpose metal grinding
• Medium grit grade balances material removal rate with surface finish
• Rated to 4,140 RPM maximum operating speed
• 6 x 1 x 1 inch dimensions fit common bench grinder arbor configurations
• Gray color designation consistent with standard aluminum oxide bond system

Compatibility

Designed as a general-purpose replacement or service wheel for 6-inch bench grinders and pedestal grinders accepting a 1-inch arbor bore and a 1-inch-wide wheel.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety requirements. Always power down and lock out the grinder before changing wheels. Inspect the wheel for cracks or chips before mounting, perform a ring test, and ensure the machine RPM rating meets or exceeds the wheel maximum RPM rating. Never exceed the 4,140 RPM marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit Grade: Medium
• Diameter: 6 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 4,140
• Color: Gray
• Weight: 2.5 pounds
• Sold As: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88255
