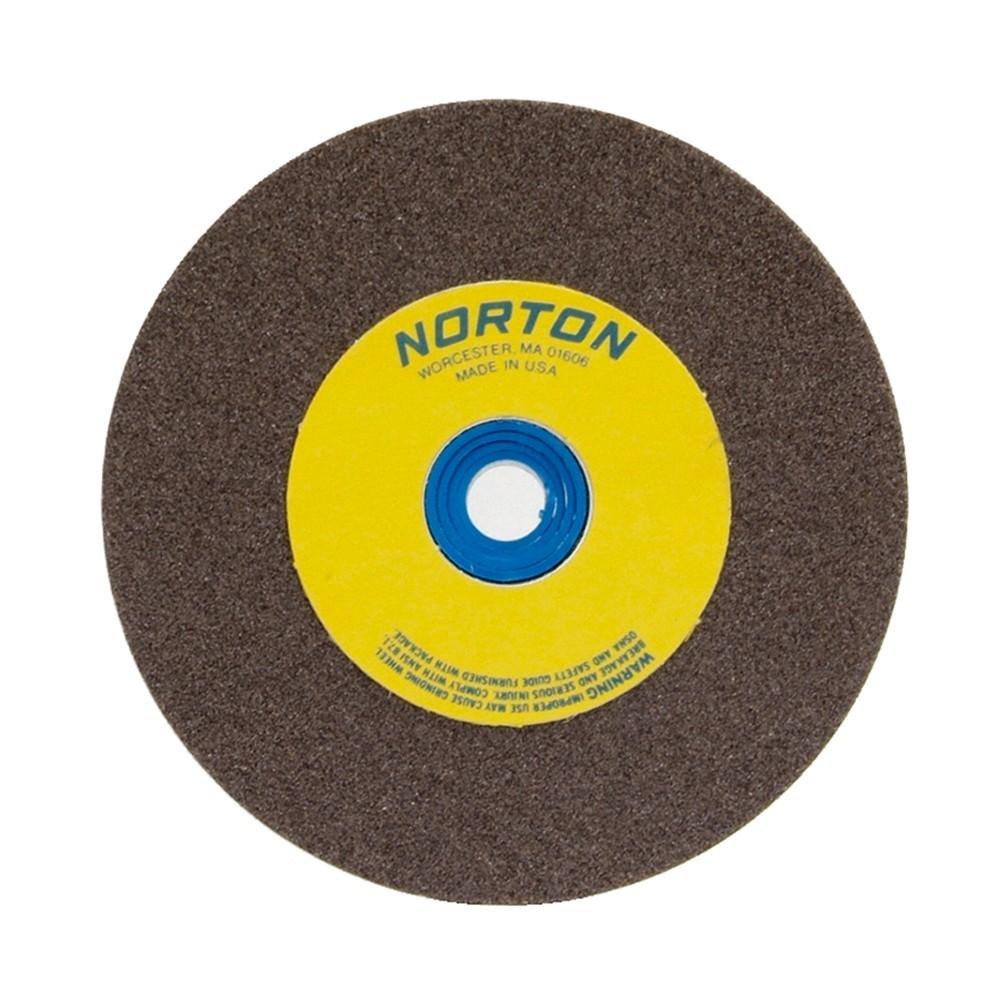

Norton 076607-88250 Aluminum Oxide Grinding Wheel 6 Inch Fine

Product Description

The NORTON 076607-88250 is a Type 1 straight-profile aluminum oxide bench and pedestal grinding wheel designed for metal grinding and tool sharpening applications. Measuring 6 inches in diameter by 1 inch wide with a 1-inch arbor bore, this wheel mounts directly to standard bench grinders and pedestal grinders. The fine grit rating makes it well suited for finish grinding, light material removal, and edge dressing on ferrous metals. Licensed tradespeople and experienced shop techs rely on aluminum oxide wheels for consistent cut rate and long service life on steel and iron workpieces.

This wheel is intended for use on stationary bench grinders and pedestal grinder units in commercial shops, maintenance facilities, and trade workspaces. The fine grit specification suits finish work on tool edges, drill bits, and small metal components where surface finish matters. It ships one wheel per case and is sold by the case. This wheel is appropriate for professional metal fabrication environments and trade shops where controlled material removal is a regular task.

Key Features

• Type 1 straight wheel profile for use on bench and pedestal grinders
• Aluminum oxide abrasive — well-suited for grinding ferrous metals including steel and iron
• Fine grit rating for finish grinding and light stock removal
• 6-inch diameter by 1-inch width with 1-inch arbor bore
• Sold as 1 wheel per case

Compatibility

Designed for use on standard bench grinders and pedestal grinders that accept a 6-inch diameter, 1-inch wide, Type 1 straight wheel with a 1-inch arbor bore.

Installation Notes

Wheel mounting should be performed by a qualified technician following the grinder manufacturer's instructions and applicable ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always inspect the wheel for cracks or chips before mounting and perform a ring test to confirm integrity. Power down and lock out the grinder before installing or removing any wheel. Never exceed the maximum RPM rating marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Diameter: 6 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Grit: Fine
• Application: Metal Grinding
• Unit of Measure: Case
• Minimum Order Quantity: 1
• Weight: 20 pounds

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88250
