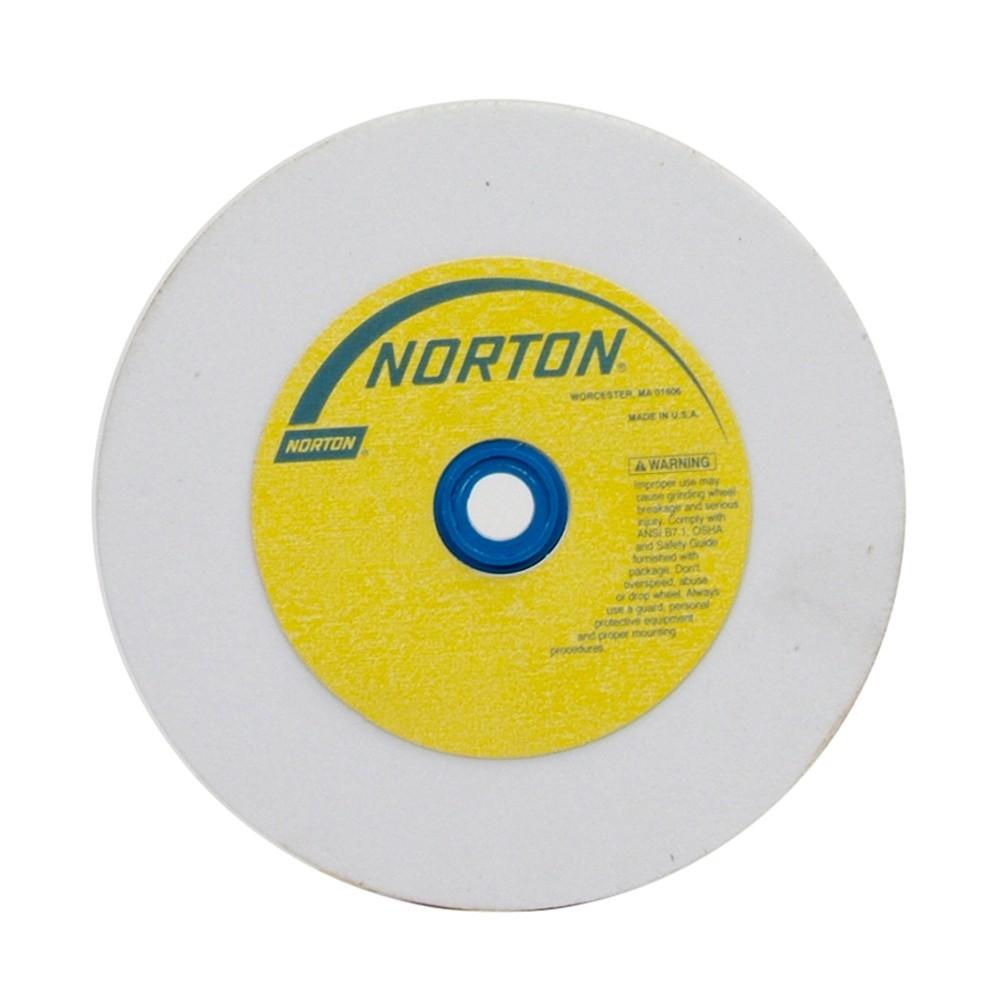

Norton 076607-88248 Bench Pedestal Wheel 6x3/4x1 150 Grit

Product Description

The NORTON 076607-88248 is a high-speed bench and pedestal grinding wheel engineered for precision material removal and fine finishing work in trade and industrial settings. Constructed from white aluminum oxide abrasive, this wheel delivers cool, consistent cutting action suited to sharpening tool edges, dressing HSS tooling, and finishing hardened steels without burning the workpiece. At an Extra Fine 150 grit, it is optimized for final-pass finishing and edge refinement rather than aggressive stock removal. The wheel measures 6 inches in diameter by 3/4 inches wide with a 1-inch arbor bore and is rated for a maximum operating speed of 4,140 RPM.

This grinding wheel is intended for use on stationary bench grinders and pedestal grinders in machine shops, maintenance facilities, tool rooms, and trade workshops. It is well suited for sharpening chisels, plane irons, drill bits, lathe tools, and other precision cutting edges where heat control and surface finish matter. The Extra Fine 150 grit makes it a finishing-stage wheel, typically used after coarser wheels have completed primary shaping.

Key Features

• White aluminum oxide abrasive for cool cutting and reduced workpiece heat buildup
• Extra Fine 150 grit for precision edge finishing and final-pass surface refinement
• High-speed rated at 4,140 RPM maximum operating speed
• 6 x 3/4 x 1 inch dimensions fit standard bench and pedestal grinder spindles
• Straight wheel profile for flat-face grinding and tool sharpening applications

Compatibility

Designed as a direct-fit replacement or upgrade wheel for standard bench grinders and pedestal grinders accepting a 6-inch diameter wheel with a 1-inch arbor bore, operating at or below 4,140 RPM.

Installation Notes

Grinding wheel installation and dressing should be performed by a qualified operator following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting, and perform a ring test per ANSI guidelines. Never exceed the maximum RPM stamped on the wheel, and always use the appropriate flanges and blotters supplied with the grinder.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Grit: 150 Extra Fine
• Wheel Diameter: 6 inches
• Wheel Width (Thickness): 3/4 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,140 RPM
• Application Type: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88248
