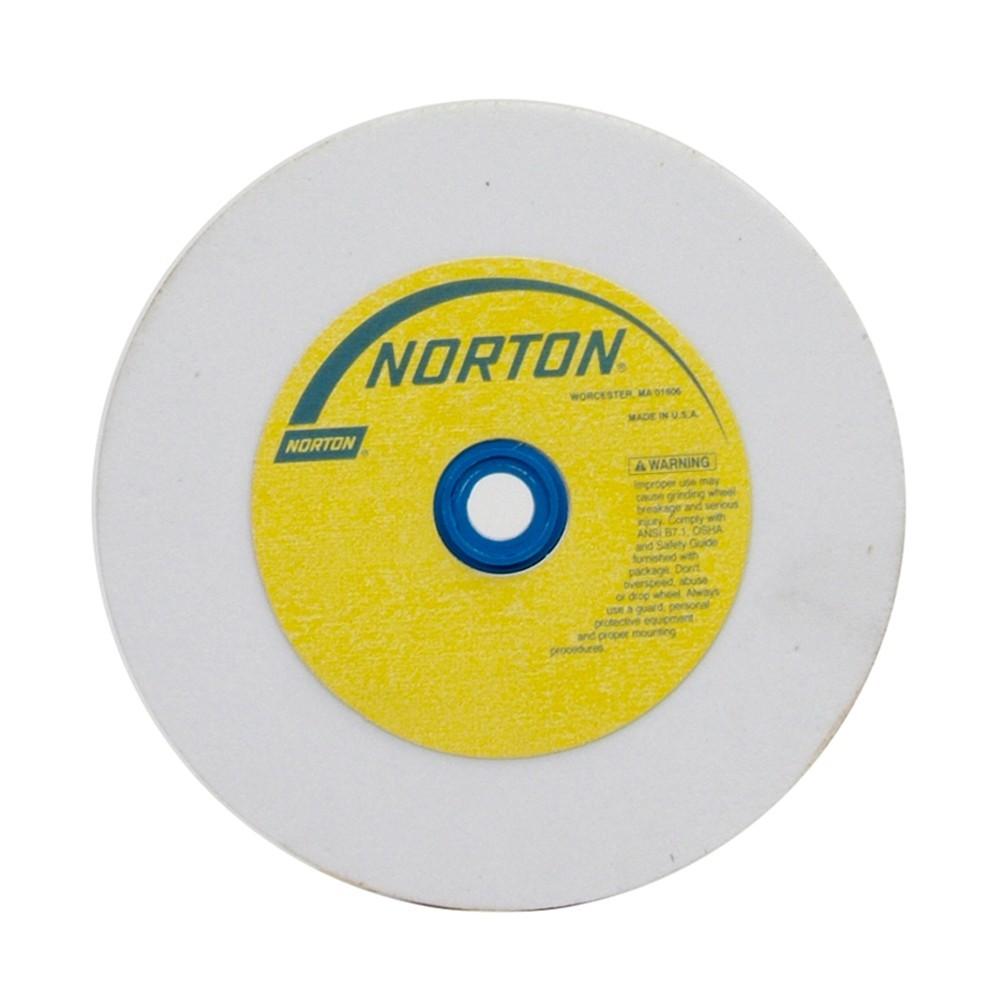

Norton 076607-88247 Bench Grinding Wheel 6x3/4x1 Fine 100 Grit

Product Description

The NORTON 076607-88247 is a high-speed bench and pedestal grinding wheel designed for precision material removal and tool sharpening in shop and trade environments. Constructed from white aluminum oxide abrasive, this wheel delivers a cool, consistent cut that is well suited for sharpening high-speed steel tooling, drill bits, and cutting edges without burning the workpiece. The wheel measures 6 inches in diameter, 3/4 inches wide, and features a 1-inch arbor bore. It carries a Fine 100 grit rating for finish grinding and light stock removal. Maximum operating speed is 4,140 RPM. Licensed machinists, tool and die technicians, HVAC fabricators, and maintenance trades commonly use this wheel at a fixed bench or pedestal grinder station.

This wheel is intended for use on standard bench grinders and pedestal grinders in residential shops, commercial maintenance facilities, and light industrial environments. White aluminum oxide construction makes it a preferred choice when grinding ferrous metals, particularly where heat buildup could damage heat-treated tool edges. The Fine 100 grit is appropriate for final sharpening passes and edge refinement rather than aggressive stock removal. It is sold individually and is subject to a minimum order quantity of 5 units per purchase.

Key Features

• White aluminum oxide abrasive for cool, consistent cutting action on ferrous metals
• Fine 100 grit for finish grinding and precision edge sharpening
• High-speed rated to 4,140 RPM for use on standard bench and pedestal grinders
• 6-inch diameter with 3/4-inch face width and 1-inch arbor bore
• Designed for sharpening high-speed steel tools without heat damage to the workpiece

Compatibility

Designed as an OEM-style replacement or standard-fit grinding wheel for bench grinders and pedestal grinders accepting a 6-inch diameter wheel with a 1-inch arbor bore.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test per standard practice. Never exceed the maximum rated RPM of 4,140, and always use the appropriate wheel guards as required by OSHA and machine manufacturer guidelines.

Technical Specifications

• Abrasive Material: White Aluminum Oxide
• Grit: Fine 100
• Wheel Diameter: 6 inches
• Wheel Width: 0.75 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,140
• Application Type: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88247
