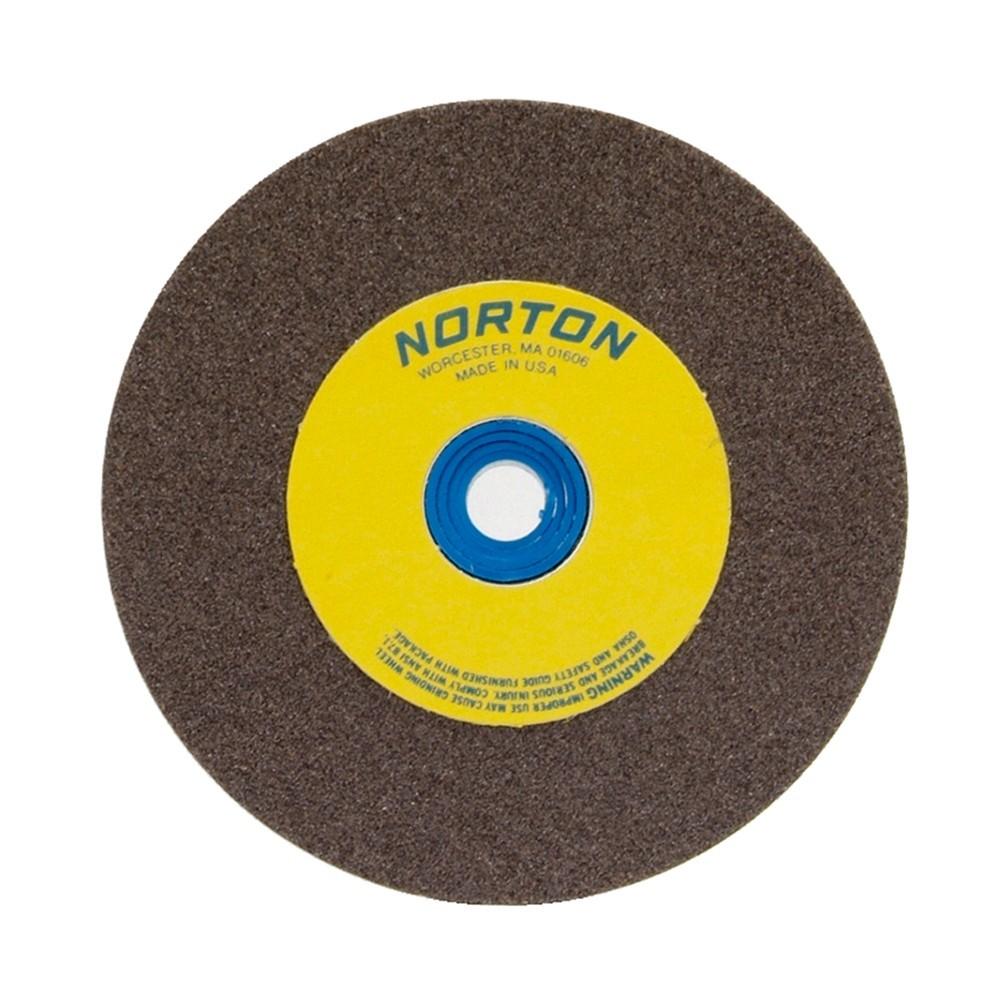

Norton 076607-88245 Bench Grinding Wheel 6x0.75x1 Coarse

Product Description

The NORTON 076607-88245 is a Type 1 straight bench and pedestal grinding wheel engineered for general-purpose metal grinding applications. Constructed from aluminum oxide abrasive, it delivers consistent stock removal on ferrous metals including steel and iron. The wheel measures 6 inches in diameter, 0.75 inches wide, with a 1-inch arbor bore, and carries a coarse grit rating for aggressive material removal. Rated to a maximum of 4,140 RPM, it is sized and speced for standard 6-inch bench grinders and pedestal grinders found in maintenance shops, fabrication facilities, and trade service environments. Licensed tradespeople and maintenance technicians are the primary installers and users of this consumable abrasive product.

This wheel is suited for sharpening tools, deburring stock, and shaping metal parts in both residential shop and light industrial settings. Its coarse aluminum oxide construction makes it particularly effective on carbon steel, alloy steel, and general ferrous workpieces. The 6-inch diameter is a widely used size across bench grinder brands in commercial and maintenance-of-equipment applications. It ships and is sold as an individual wheel unit.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder spindles
• General-purpose aluminum oxide abrasive for effective metal grinding and tool sharpening
• Coarse grit for aggressive stock removal and deburring
• 6 x 0.75 x 1 inch dimensions fit widely available 6-inch bench grinders
• Maximum operating speed of 4,140 RPM

Compatibility

Designed as a general-purpose replacement or consumable for standard 6-inch bench grinders and pedestal grinders accepting a 1-inch arbor bore and Type 1 straight wheel configuration.

Installation Notes

Grinding wheel mounting should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or installing a wheel. Inspect the wheel for cracks or chips using the ring test before mounting, and confirm the grinder spindle speed does not exceed the wheel maximum RPM rating of 4,140. Never exceed the rated speed or use without appropriate wheel guards in place.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit: Coarse
• Color: Gray
• Diameter: 6 inches
• Width (Thickness): 0.75 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,140
• Weight: 1.781 pounds
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88245
