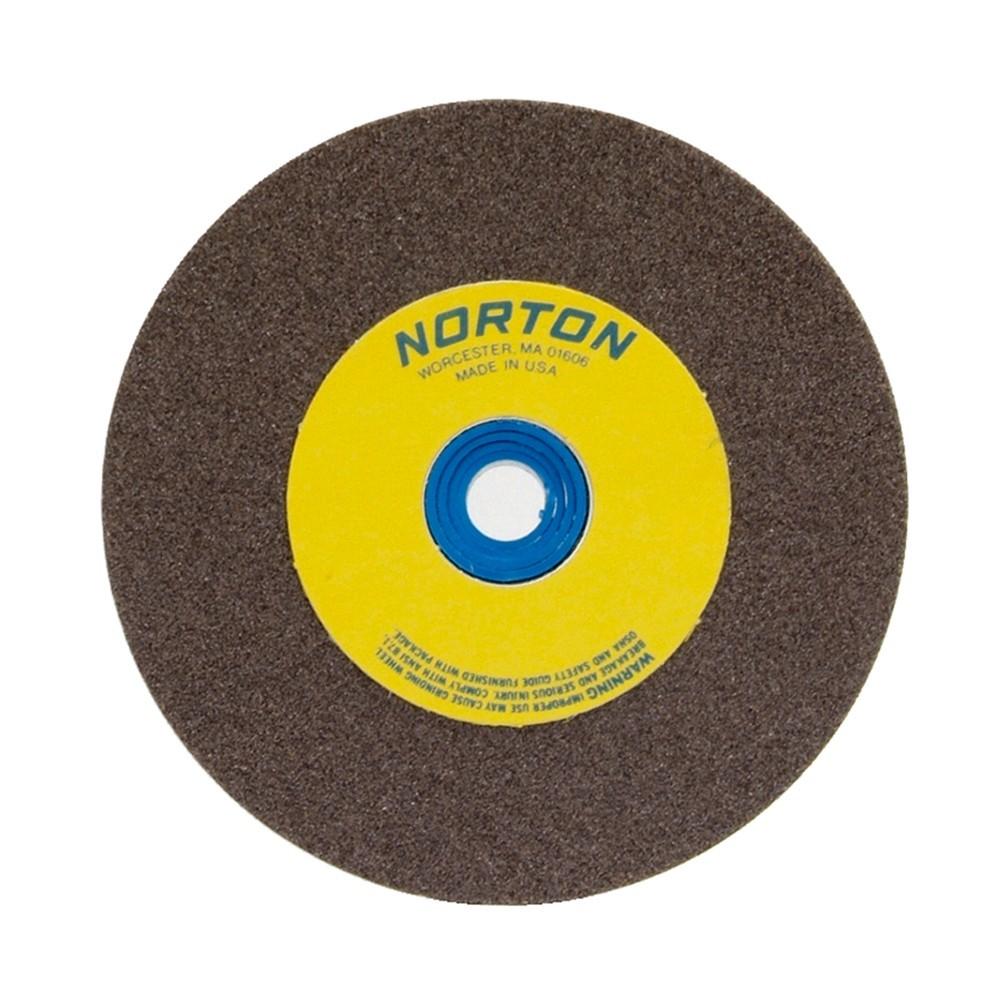

Norton 076607-88235 Type 1 Bench Grinding Wheel 6x3/4x1 Fine

Product Description

The NORTON 076607-88235 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and tool sharpening. Constructed from aluminum oxide abrasive, this wheel delivers consistent stock removal on ferrous metals including steel and iron. It measures 6 inches in diameter, 3/4 inches wide, with a 1-inch arbor bore, and carries a fine grit rating suited for finishing passes and edge refinement. Maximum operating speed is 4,140 RPM. It is sold individually and is a standard production item used in trade shops, maintenance facilities, and fabrication environments.

This wheel is intended for use on stationary bench grinders and pedestal grinders in industrial, commercial, and shop settings. Fine grit aluminum oxide wheels are commonly chosen for sharpening cutting tools, lathe bits, chisels, and drill bits where surface finish and dimensional accuracy matter more than aggressive material removal. Metalworkers, machinists, and maintenance technicians are the primary installers and users of this abrasive product.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder compatibility
• General-purpose aluminum oxide abrasive construction for metal grinding
• Fine grit rating for finishing, deburring, and tool sharpening applications
• 4,140 RPM maximum operating speed
• 6-inch diameter with 1-inch arbor bore for common grinder spindle fitment
• Gray color designation standard for aluminum oxide general-purpose wheels

Compatibility

Designed as an OEM-style replacement or standard consumable for bench grinders and pedestal grinders accepting a Type 1 straight wheel with a 6 x 3/4 x 1 inch profile and a minimum 4,140 RPM speed rating.

Installation Notes

Bench and pedestal grinding wheel replacement should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or mounting a wheel. Inspect the new wheel for cracks or chips using the ring test before mounting, and never exceed the maximum RPM marked on the wheel. Ensure the wheel flanges, blotters, and arbor nut are properly seated and torqued per the grinder manufacturer's guidelines.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit: Fine
• Diameter: 6 inches
• Width (Thickness): 3/4 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,140 RPM
• Color: Gray
• Weight: 1.781 pounds
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88235
