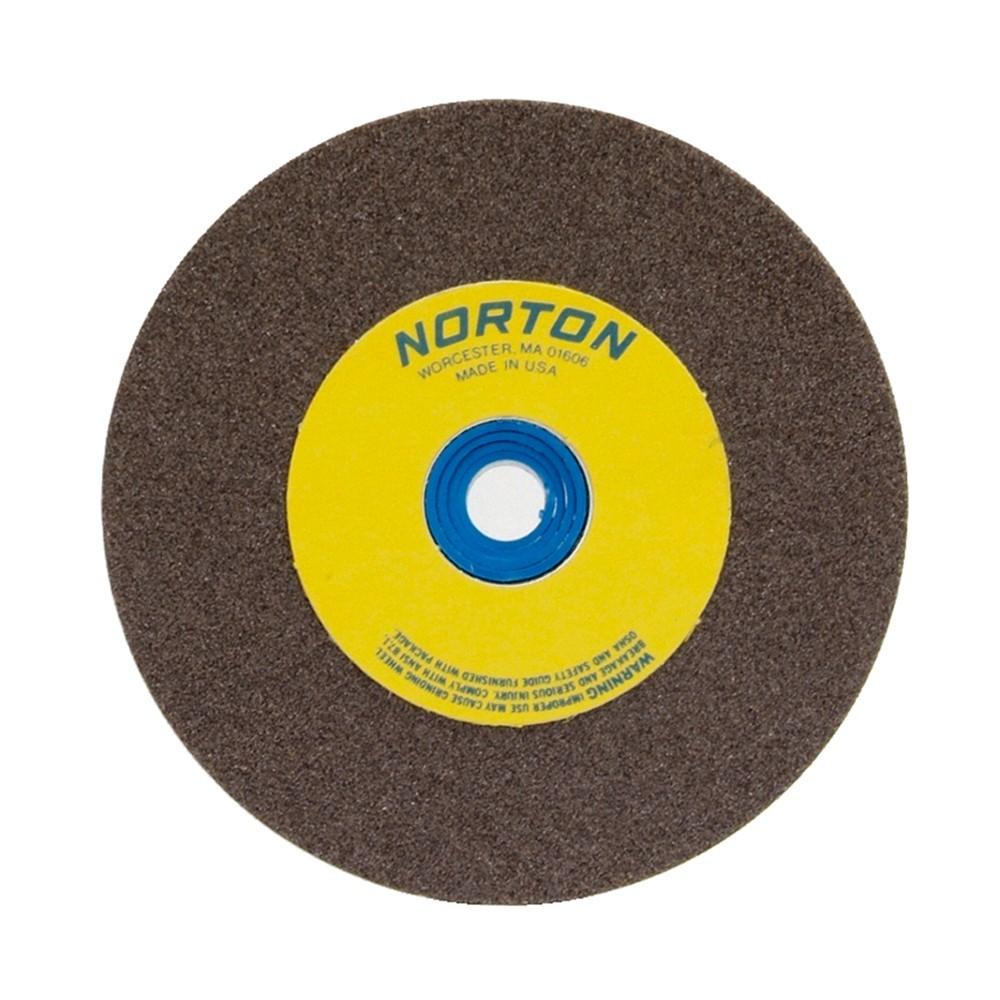

Norton 076607-88205 Bench Pedestal Wheel 5x3/4x1 Fine

Product Description

The NORTON 076607-88205 is a Type 1 bench and pedestal grinding wheel designed for general-purpose metal grinding and sharpening applications. This wheel measures 5 inches in diameter, 3/4 inches wide, with a 1-inch arbor bore. It is made from aluminum oxide abrasive in a Fine grit grade and features a gray vitrified bond construction. The maximum safe operating speed is 4,965 RPM. Bench and pedestal grinding wheels of this type are typically mounted and changed by machinists, maintenance technicians, and metal fabricators working with bench grinders or pedestal grinders in shop environments.

This wheel is suited for light to medium stock removal, edge dressing, and sharpening of metal tools and workpieces on standard bench or pedestal grinder machines. Fine grit makes it appropriate for finishing passes and detail sharpening rather than aggressive stock removal. It is a general-purpose choice for ferrous metals including carbon steel and tool steel in maintenance, production, and fabrication shop settings.

Key Features

• Type 1 straight wheel profile for use on bench and pedestal grinders
• Aluminum oxide abrasive construction suited for metal grinding
• Fine grit grade for finishing and sharpening applications
• Maximum operating speed of 4,965 RPM
• 5 x 3/4 x 1 inch dimensions with standard 1-inch arbor bore

Compatibility

Designed as an OEM-style replacement or standard service wheel for bench grinders and pedestal grinders accepting a Type 1 straight wheel with a 1-inch arbor bore and a 5-inch diameter.

Installation Notes

Installation should be performed by a qualified technician following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test per standard procedure. Never exceed the maximum RPM rating marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Aluminum Oxide
• Grit Grade: Fine
• Color: Gray
• Diameter: 5 inches
• Width: 3/4 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,965
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88205
