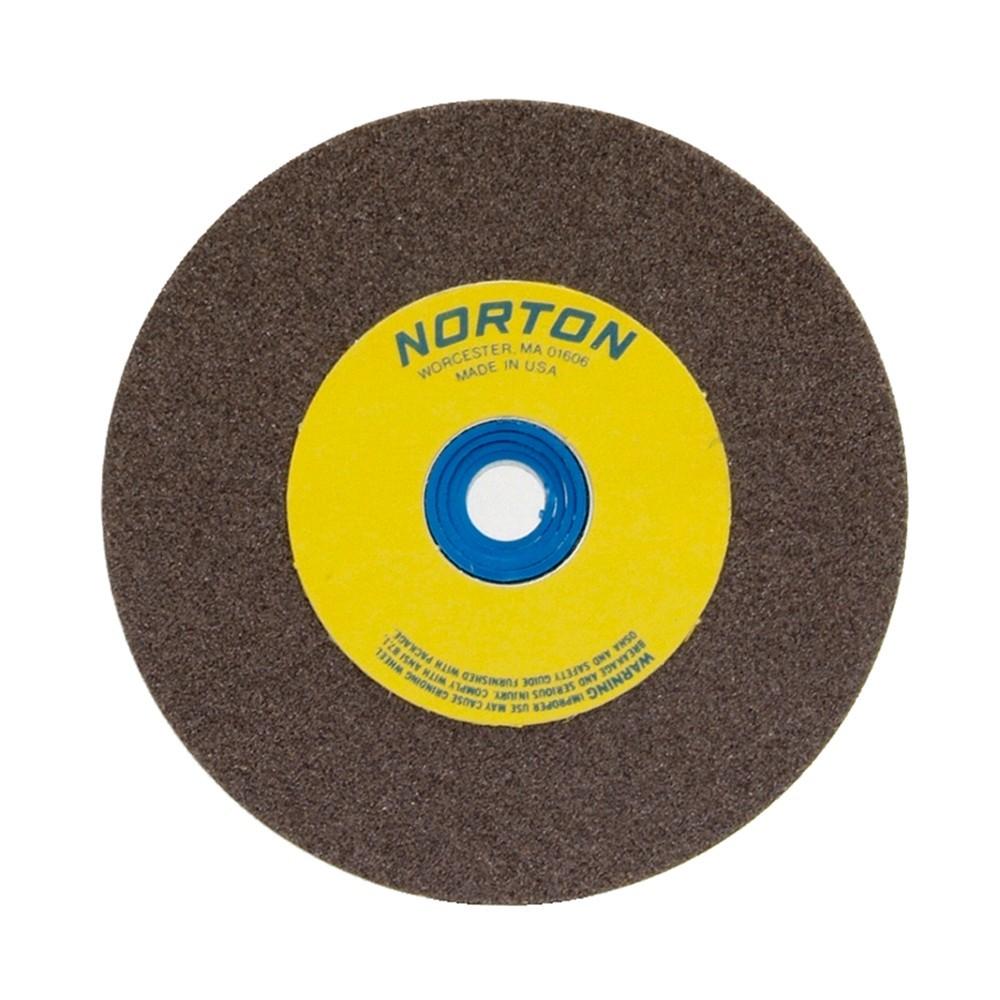

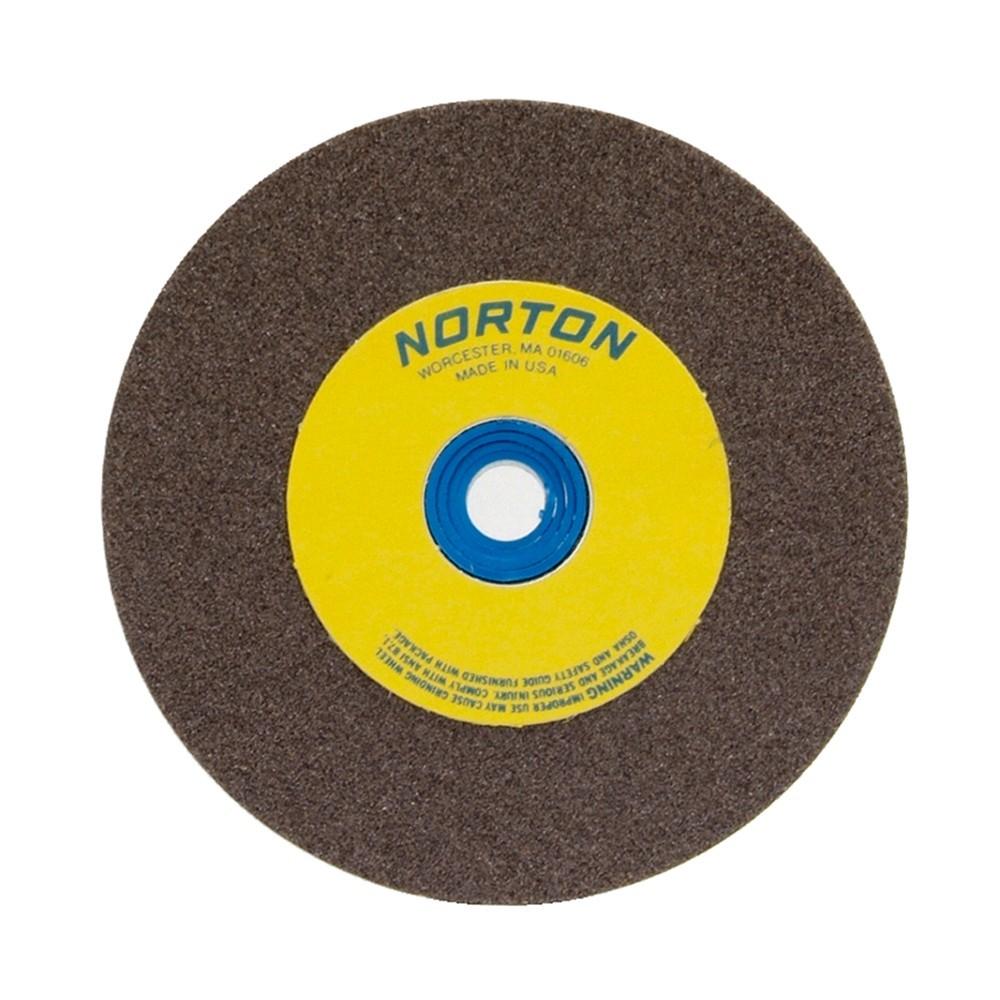

Norton 076607-88202 Bench Grinding Wheel 5x0.5x1 in Medium

Product Description

The NORTON 076607-88202 is a Type 1 bench and pedestal grinding wheel designed for general-purpose metal grinding applications. Built from aluminum oxide abrasive in a medium grit rating, this wheel delivers consistent stock removal on ferrous metals when mounted to a standard bench grinder or pedestal grinder. The wheel measures 5 inches in diameter, 0.5 inches wide, with a 1-inch arbor bore, and carries a maximum operating speed of 4965 RPM. At 1.3 pounds, it is a standard single-unit replacement suitable for professional shop and field-service environments.

This wheel is intended for use on bench grinders and pedestal grinders in metalworking, HVAC fabrication, plumbing rough-in, and general maintenance shops. The aluminum oxide composition handles tool sharpening, deburring, and light shaping on common ferrous metals. Medium grit makes it appropriate for tasks that fall between aggressive material removal and fine finishing work. It is sold and rated as a single unit replacement.

Key Features

• Type 1 straight-wheel profile for standard bench and pedestal grinder spindles
• General-purpose aluminum oxide abrasive rated for ferrous metal grinding
• Medium grit for balanced stock removal and surface finish
• 5-inch diameter with 1-inch arbor bore fits common bench grinder configurations
• 4965 RPM maximum speed rating for safe operation within standard machine limits
• Lightweight at 1.3 pounds for straightforward wheel changes

Compatibility

Designed as a general-purpose replacement Type 1 grinding wheel for bench grinders and pedestal grinders accepting a 5-inch diameter wheel with a 1-inch arbor bore.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Power down and lock out the grinder before removing the old wheel. Inspect the new wheel for cracks or damage before mounting, and always use proper flanges and a blotter between the flange and wheel face. Run the grinder at operating speed for at least one minute behind a guard before returning the machine to service.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Aluminum Oxide
• Grit Grade: Medium
• Color: Gray
• Wheel Diameter: 5 inches
• Wheel Width: 0.5 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4965
• Weight: 1.3 pounds

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88202
