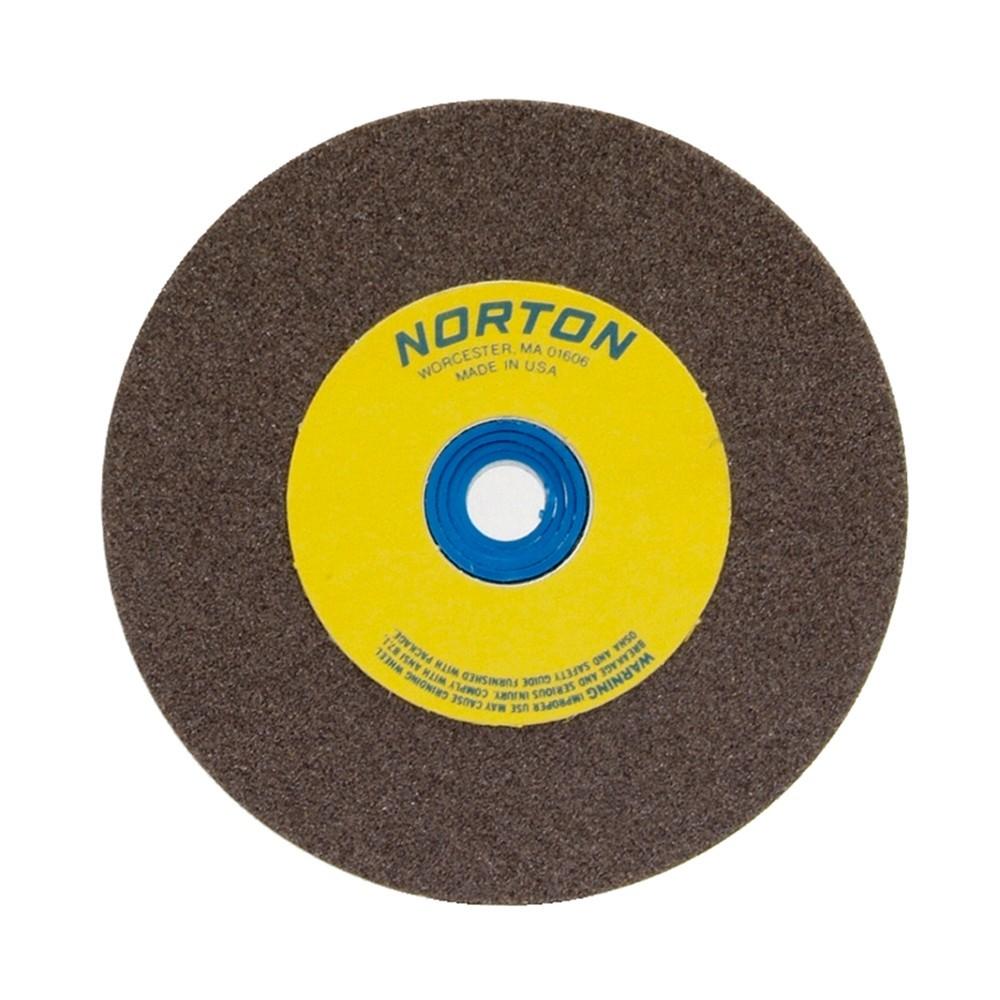

Norton 076607-88201 Bench Pedestal Wheel Fine 5x0.5x1

Product Description

The NORTON 076607-88201 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and sharpening. Constructed from aluminum oxide abrasive in a gray formulation, this wheel delivers consistent stock removal on ferrous metals. It measures 5 inches in diameter by 0.5 inches wide with a 1-inch arbor bore. The fine grit rating makes it well suited for finishing passes and light material removal where edge quality matters. It carries a maximum operating speed of 4965 RPM. At 1.3 pounds, it fits standard bench and pedestal grinder spindle configurations used in maintenance, fabrication, and tool-and-die shops.

This wheel is intended for use on stationary bench grinders and pedestal grinders in industrial, commercial, and trade shop environments. Typical applications include sharpening tool bits, deburring castings, cleaning welds, and general metal conditioning. Machinists, maintenance technicians, fabricators, and tool room personnel are the primary users. The fine grit designation suits finish grinding and edge refinement rather than aggressive material removal.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder mounting
• Aluminum oxide abrasive construction for general-purpose metal grinding
• Fine grit rating for finish grinding and edge sharpening
• 4965 RPM maximum operating speed
• 1-inch arbor bore fits common bench grinder spindle sizes
• Gray color designation indicating standard aluminum oxide bond formulation

Compatibility

Designed as a general-purpose replacement or service wheel for standard bench and pedestal grinders accepting a Type 1 straight wheel with a 5-inch diameter, 0.5-inch width, and 1-inch arbor bore running at or below 4965 RPM.

Installation Notes

Wheel mounting and dressing should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or damage using the ring test before installation, and never exceed the marked maximum RPM. Use the correct flanges, blotters, and arbor hardware specified for the grinder model.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Color: Gray
• Grit: Fine
• Diameter: 5 inches
• Width (Thickness): 0.5 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4965
• Weight: 1.3 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88201
