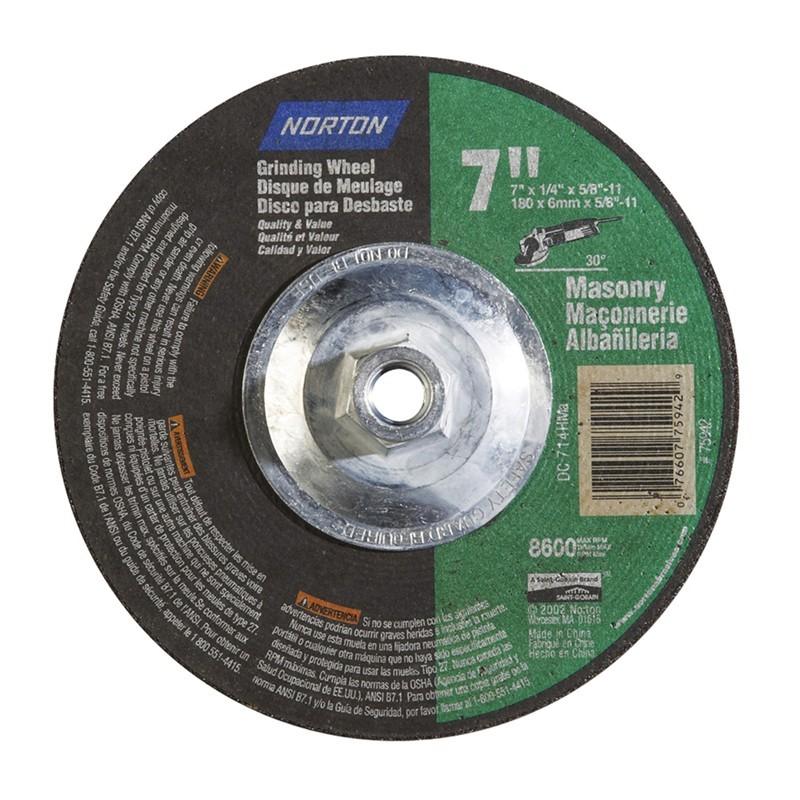

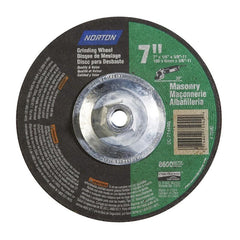

Norton 076607-75942 Type 27 Grinding Wheel 7 Inches

Product Description

The NORTON 076607-75942 is a Type 27 depressed center grinding wheel engineered for aggressive material removal with reduced wheel wear over the life of the disc. Constructed from silicon carbide abrasive, this wheel is suited for grinding and cutting applications on hard, brittle materials such as masonry, stone, and non-ferrous metals. The wheel measures 7 inches in diameter with a 1/4 inch thickness and mounts via a 5/8-11 threaded hub. Rated at 8,600 RPM maximum operating speed, it delivers consistent performance on angle grinders used in fabrication, construction, and industrial maintenance applications. Trade professionals choose silicon carbide wheels for their ability to cut cleanly without loading on difficult substrate materials.

This wheel is appropriate for use in commercial and industrial settings where Type 27 depressed center geometry is required for flush or surface grinding work. The 5/8-11 arbor mount is the standard thread for most 7-inch angle grinders, making it a direct fit for common shop and field tools. It is well suited for masonry contractors, pipe fitters, and metal fabricators who need consistent stock removal on abrasive or non-ferrous workpieces. The minimum order quantity for this item is 5 units per order.

Key Features

• Silicon carbide abrasive construction for efficient grinding of masonry, stone, and non-ferrous materials
• Type 27 depressed center profile allows flush surface grinding and edge work
• 7 inch diameter with 1/4 inch thickness for aggressive stock removal
• 5/8-11 threaded arbor fits standard angle grinder spindles
• 8,600 RPM maximum rated speed for use with full-size 7-inch angle grinders
• Designed to balance cutting performance against wheel wear to reduce per-job abrasive cost

Compatibility

Designed for use with 7-inch angle grinders equipped with a 5/8-11 spindle thread. Confirm that the grinder's no-load RPM does not exceed the 8,600 RPM wheel rating before mounting.

Installation Notes

Installation should be performed by a qualified operator following ANSI B7.1 safe-use standards for abrasive wheels. Disconnect and de-energize the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before each use and never operate above the marked maximum RPM. Always use the appropriate guard and personal protective equipment when operating grinding wheels.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Silicon Carbide
• Diameter: 7 inches
• Thickness: 1/4 inch
• Arbor Size: 5/8-11
• Maximum RPM: 8,600
• Weight: 1 pound
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-75942
