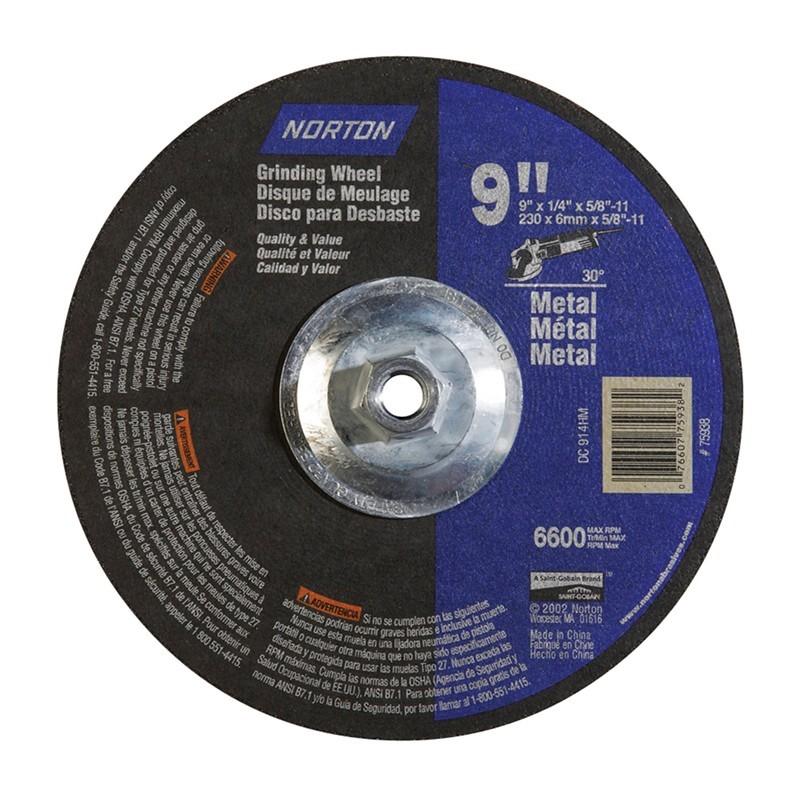

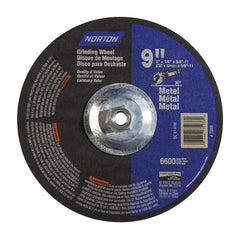

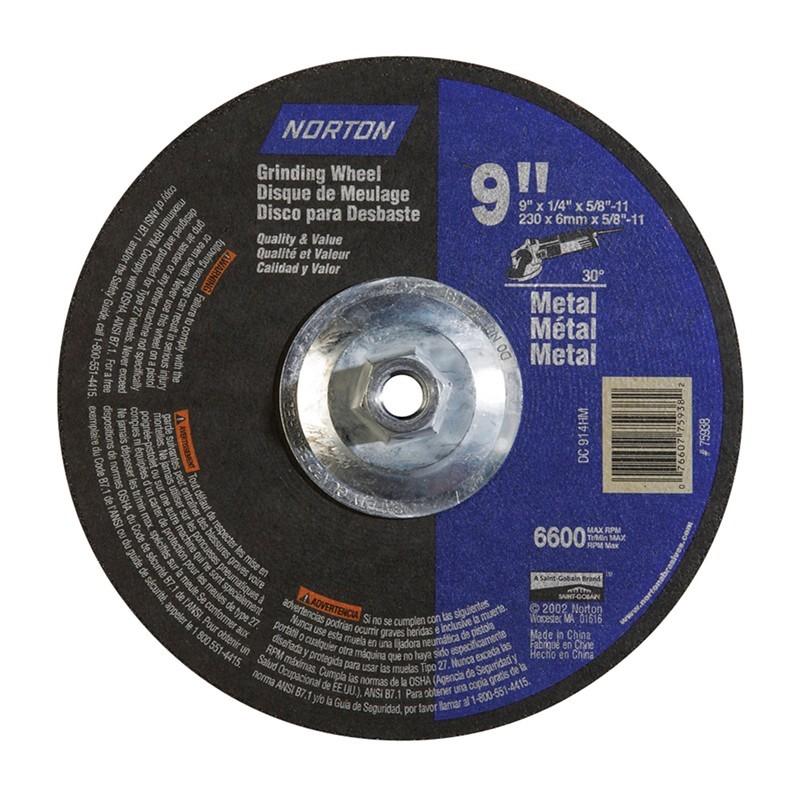

Norton 076607-75938 Type 27 Grinding Wheel 9 Inch Metal

Product Description

The NORTON 076607-75938 is a Type 27 depressed center grinding wheel designed for aggressive metal grinding and weld removal on ferrous materials. The wheel measures 9 inches in diameter with a 1/4 inch thickness and a 5/8-11 threaded arbor hole, making it compatible with standard large-angle grinders. Built with an aluminum oxide abrasive grain, this wheel delivers consistent stock removal on steel and iron surfaces. Rated to a maximum of 6600 RPM, it is suited for sustained high-load grinding tasks in fabrication, welding, and maintenance environments. Installation and use require a licensed or experienced metalworking professional familiar with angle grinder safety standards.

This grinding wheel is intended for use on metal substrates including mild steel, structural steel, and iron. It is a common choice in fabrication shops, ironworking trades, and industrial maintenance settings. The depressed center Type 27 profile allows the wheel to be used at a low approach angle, giving the operator good surface contact and control during flat or contoured grinding operations. Sold individually, with a minimum order quantity of 5 units per purchase.

Key Features

• Type 27 depressed center profile for flat and low-angle grinding
• Aluminum oxide abrasive grain optimized for steel and ferrous metal
• 9 inch diameter with 1/4 inch grinding face thickness
• 5/8-11 threaded arbor fits standard large-angle grinder spindles
• 6600 RPM maximum speed rating for high-load grinding applications

Compatibility

Designed for use with large-angle grinders equipped with a 5/8-11 threaded spindle. Intended for grinding applications on metal and ferrous surfaces.

Installation Notes

Always power down and disconnect the grinder from its power source before mounting or removing a grinding wheel. Inspect the wheel for cracks or damage before each use and never operate above the rated maximum RPM. Ensure the guard is properly installed before operation. Wheel mounting and use should follow ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Aluminum Oxide
• Application: Metal Grinding
• Diameter: 9 inches
• Thickness: 0.25 inches
• Arbor Size: 5/8-11 threaded
• Maximum RPM: 6600
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-75938
