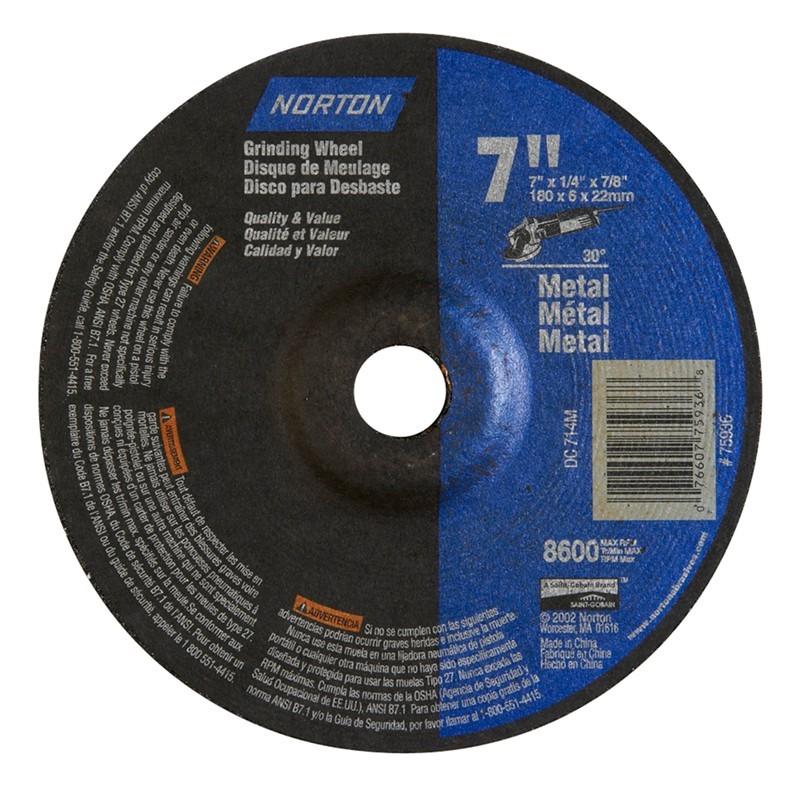

Norton 076607-75936 Type 27 Grinding Wheel 7x1/4x7/8

Product Description

The NORTON 076607-75936 is a Type 27 depressed center grinding wheel designed for metal grinding applications. Built with an aluminum oxide abrasive grain, this wheel delivers consistent stock removal on ferrous metals including mild steel, stainless, and structural iron. It measures 7 inches in diameter with a 1/4-inch thickness and a 7/8-inch arbor bore, and is rated for a maximum operating speed of 8,600 RPM. Weighing 0.813 pounds, it is a standard single-unit wheel suited for angle grinder use in fabrication, weld prep, and maintenance work performed by welders, pipefitters, ironworkers, and general trade contractors.

This grinding wheel is intended for use on angle grinders configured for Type 27 depressed center wheels. The 7-inch diameter and 7/8-inch arbor bore suit a wide range of professional-grade angle grinders commonly used in metal fabrication shops, construction sites, and industrial maintenance environments. The aluminum oxide abrasive makes it well-suited for grinding carbon steel, alloy steel, and similar hard metals where controlled, aggressive material removal is required.

Key Features

• Type 27 depressed center profile for clearance and control during flat and weld grinding
• Aluminum oxide abrasive grain rated for metal grinding applications
• 7-inch diameter with 1/4-inch grinding face thickness
• 7/8-inch arbor bore fits standard angle grinder spindles
• 8,600 RPM maximum operating speed rating
• Sold individually — minimum order quantity of 5 units

Compatibility

Designed as a Type 27 depressed center replacement grinding wheel for 7-inch angle grinders with a 7/8-inch arbor, rated to a minimum tool speed of 8,600 RPM or higher.

Installation Notes

Installation and wheel changes must be performed by a qualified operator following ANSI B7.1 safe-use standards for abrasive wheels. Disconnect and de-energize the angle grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before each use and never operate above the marked maximum RPM. Always use the appropriate guard for a Type 27 wheel and wear required PPE including a face shield and hearing protection during operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Aluminum Oxide
• Application: Metal Grinding
• Diameter: 7 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 8,600 RPM
• Weight: 0.813 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-75936
