Norton 076607-61295 Wide Sanding Belt 37x75 Inches 80 Grit

Product Description

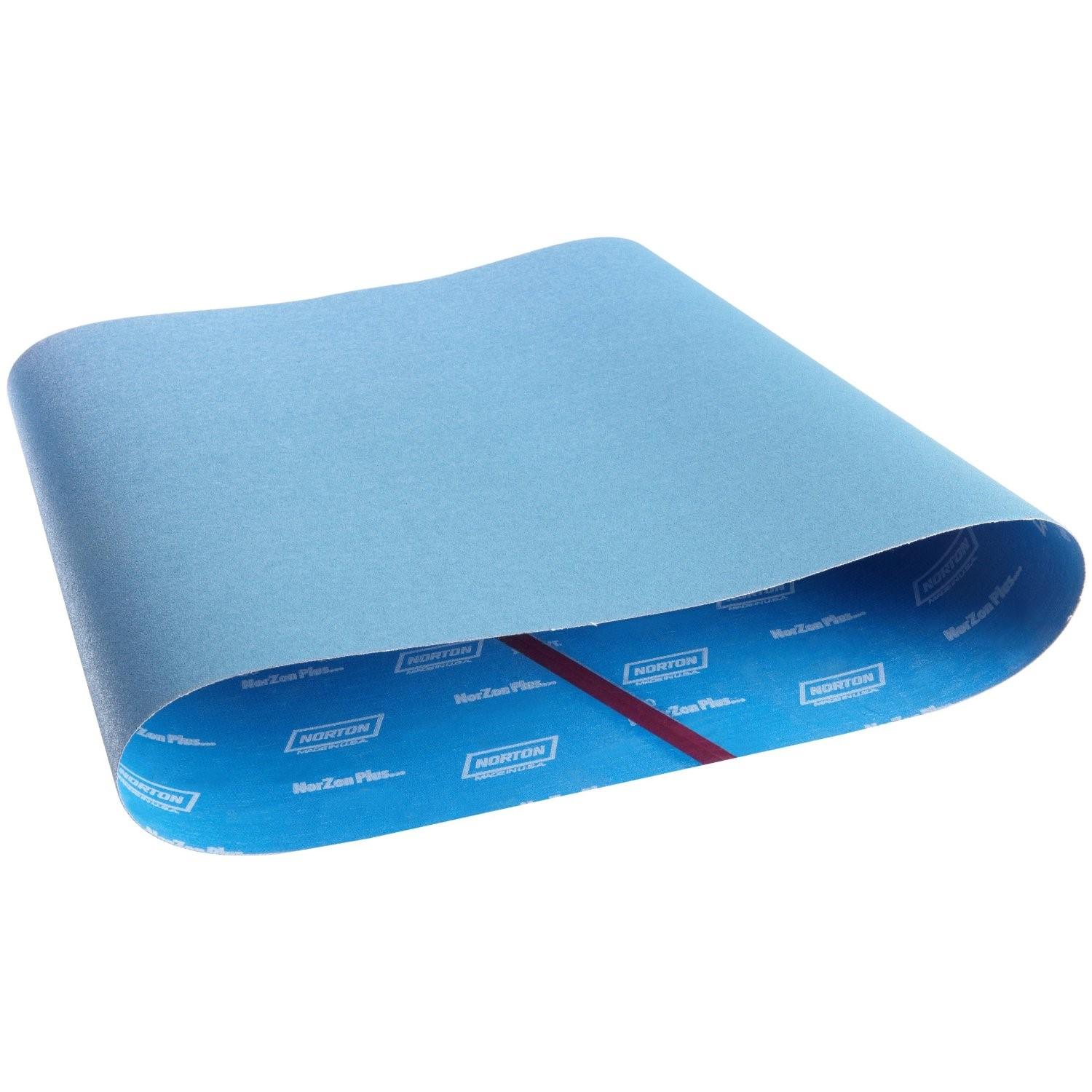

The NORTON 076607-61295 is a wide abrasive sanding belt built on a zirconia alumina grain system bonded to a heavy-duty Y-weight cloth backing. Zirconia alumina is a self-sharpening abrasive that fractures under pressure to expose fresh cutting edges, making it well suited to aggressive stock removal on metal, wood, and composite surfaces. At 80 grit, this belt sits in the coarse range, delivering fast material removal while still leaving a workable surface for follow-up finishing passes. Licensed abrasives technicians and production floor operators working wide-belt sanding machines are the primary installers and end users.

This belt is designed for use on wide-belt industrial sanding machines common in production woodworking shops, metal fabrication facilities, and composite manufacturing environments. The 37-inch width and 75-inch length fit dedicated wide-belt sanders in that size class. The Y-weight cloth backing resists tearing and heat buildup during extended run cycles, making it appropriate for both continuous and intermittent sanding operations on flat panel stock, structural steel, and similar workpieces. Minimum order quantity is 3 belts per purchase.

Key Features

• Zirconia alumina grain self-sharpens during use for consistent, aggressive stock removal
• Y-weight cloth backing provides high tensile strength and resistance to tearing under load
• 80 grit classification suited to coarse material removal and surface leveling
• 37-inch by 75-inch dimensions fit standard wide-belt industrial sanding machines
• Sold in a minimum quantity of 3 belts per unit of measure

Compatibility

Designed for use in wide-belt industrial sanding machines that accept a 37-inch by 75-inch abrasive belt.

Installation Notes

Wide sanding belts should be installed by qualified operators following the sanding machine manufacturer's belt-change procedures. Power down and lock out the machine before removing a worn belt or installing a new one. Inspect the belt for cracks, tears, or edge damage before mounting, and confirm proper tracking adjustment before resuming production. Allow the belt to run unloaded briefly at operating speed to verify stable tracking prior to contacting the workpiece.

Technical Specifications

• Abrasive Grain: Zirconia Alumina
• Backing Type: Y-Weight Cloth
• Grit: 80
• Belt Width: 37 inches
• Belt Length: 75 inches
• Minimum Order Quantity: 3
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-61295
