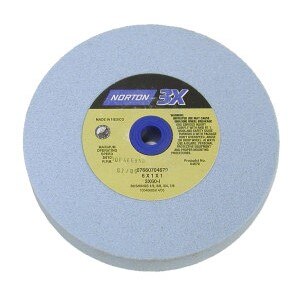

Norton 076607-05414 Bench Pedestal Grinding Wheel 6x1x1

Product Description

The NORTON 076607-05414 is a high-speed bench and pedestal grinding wheel engineered for demanding material removal and tool sharpening tasks. Built from Premium 3X Blue Ceramic Alumina abrasive in a K-Grade hardness rating, this wheel delivers consistent cut rates and extended wheel life compared to standard aluminum oxide alternatives. Measuring 6 inches in diameter, 1 inch wide, with a 1-inch arbor bore, it mounts directly to standard bench and pedestal grinders used in maintenance shops, fabrication facilities, and tool rooms. Licensed tradespeople and experienced machinists rely on this type of wheel for precision edge work and surface conditioning on ferrous metals.

This wheel is suited for bench grinder and pedestal grinder applications in industrial, commercial, and trade shop environments. The ceramic alumina grain structure makes it well-matched for grinding high-speed steel tooling, carbon steel, and alloy steel workpieces where heat generation must be kept low and material removal must remain aggressive. It is a practical choice for tool-and-die shops, HVAC fabrication benches, plumbing shops, and general maintenance operations requiring frequent tool dressing and edge restoration.

Key Features

• Premium 3X Blue Ceramic Alumina abrasive grain for aggressive, cool cutting action
• K-Grade hardness rating provides firm bond well-suited to ferrous metal grinding
• 6 inches x 1 inches x 1 inches dimensions fit standard bench and pedestal grinder spindles
• Rated for high-speed grinder operation
• Sold individually (UOM: Each)

Compatibility

Designed as an OEM-style replacement and standard-fit wheel for bench grinders and pedestal grinders accepting a 6-inch diameter wheel with a 1-inch arbor bore and 1-inch face width.

Installation Notes

Bench and pedestal grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or mounting a wheel. Inspect the wheel for cracks or chips before installation using the ring test, and never exceed the maximum RPM marked on the wheel or grinder, whichever is lower. Eye protection and a properly adjusted work rest and wheel guard are required during operation.

Technical Specifications

• Abrasive Material: Premium 3X Blue Ceramic Alumina
• Grade (Hardness): K
• Wheel Diameter: 6 inches
• Wheel Width (Face): 1 inch
• Arbor Bore: 1 inch
• Application Speed: High Speed
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-05414
